NexperiaDatasheet (PDF)

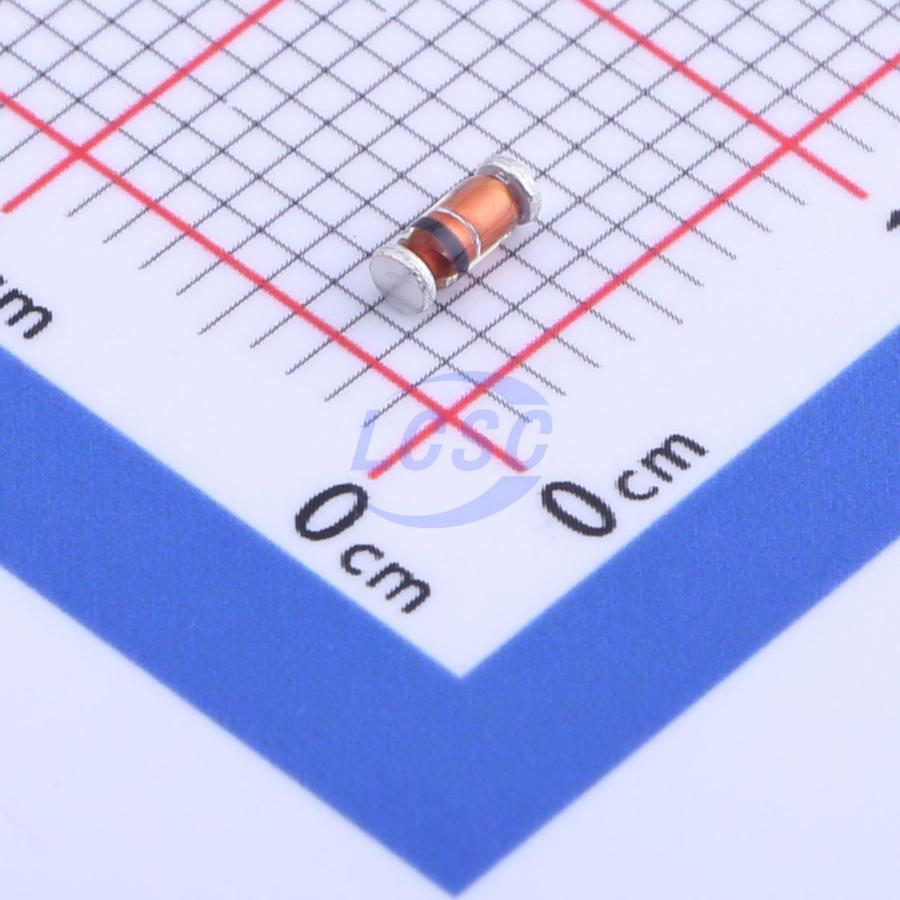

BZV55-B7V5,115
Zener Diode Independent 7.5V 400mW Surface Mount SOD-80C
SOD-80CROHS3 CompliantActive
DIODE ZENER 7.5V 400mW SOD-80C
- Manufacturer
- Nexperia
- Manufacturer part #
- BZV55-B7V5,115
- Store part #
- C550413
- Package / case
- SOD-80C
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,645 in stock
#C550413
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.38 | ₹86.90 |
| 50+ | ₹13.87 | ₹693.50 |
| 150+ | ₹12.11 | ₹1,816.50 |
| 500+ | ₹10.78 | ₹5,390.00 |
| 2,500+ | ₹8.76 | ₹21,900.00 |
| 5,000+ | ₹8.23 | ₹41,150.00 |
5 × ₹17.38
₹86.90
excl. GST
₹102.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BZV55-B7V5,115
₹86.90 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 400mW
- Reverse Leakage Current (Ir)
- 1uA@5V
- Impedance(Zzt)
- 6Ω
- Zener Voltage(Range)
- 7.35V~7.65V
- Zener Voltage(Nom)
- 7.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.071 g
Overview
Low- power voltage regulator diodes in small hermetically sealed glass SOD80C Surface- Mounted Device (SMD) packages. The diodes are available in the normalized E24 ± 2% (BZV55- B) and approximately ± 5% (BZV55- C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Non- repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 500mW
- Two tolerance series: ± 2% and ± 5%
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Low differential resistance
- Small hermetically sealed glass SMD package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZV55-C7V5,115#C426817Nexperia · SOD-80C | Nexperia | SOD-80C | 1,120 | ₹10.98 · 1,120 in stock | View |
 | ZMM55-B7V5_R1_10001#C391767PANJIT · MiniMELF(LL-34) | PANJIT | MiniMELF(LL-34) | 280 | ₹2.77 · 280 in stock | View |
 | TLZ7V5C-GS08#C241942VISHAY · SOD-80 | VISHAY | SOD-80 | 450 | ₹7.71 · 450 in stock | View |
 | ZMM7B5#C5359978MSKSEMI · LL-34 | MSKSEMI | LL-34 | 340 | ₹3.43 · 340 in stock | View |
 | ZMM5236B#C5359953MSKSEMI · LL-34 | MSKSEMI | LL-34 | 50 | ₹2.82 · 50 in stock | View |
