NexperiaDatasheet (PDF)

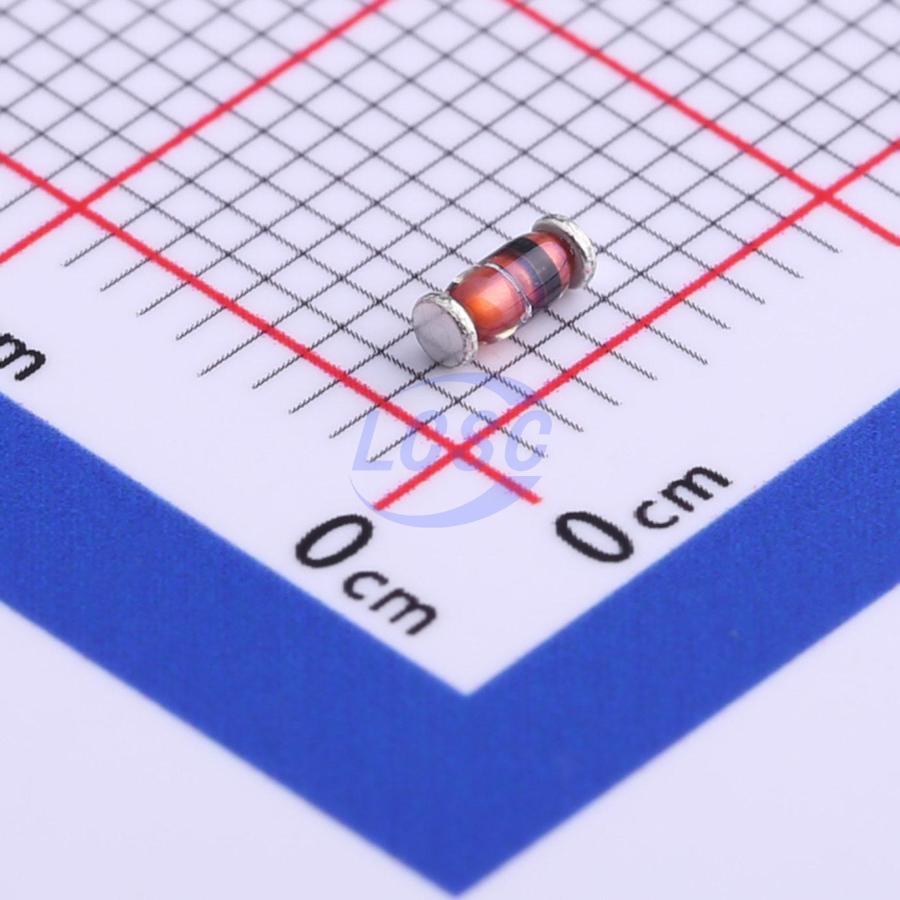

BZV55-C7V5,115
Zener Diode Independent 7.5V 400mW Surface Mount SOD-80C
SOD-80CROHS3 CompliantActive
DIODE ZENER 7.5V 400mW SOD-80C
- Manufacturer
- Nexperia
- Manufacturer part #
- BZV55-C7V5,115
- Store part #
- C426817
- Package / case
- SOD-80C
- Category
- Single Zener Diodes
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,120 in stock
#C426817
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.98 | ₹54.90 |
| 50+ | ₹8.63 | ₹431.50 |
| 150+ | ₹7.45 | ₹1,117.50 |
| 500+ | ₹6.56 | ₹3,280.00 |
| 2,500+ | ₹5.86 | ₹14,650.00 |
| 5,000+ | ₹5.50 | ₹27,500.00 |
5 × ₹10.98
₹54.90
excl. GST
₹64.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BZV55-C7V5,115
₹54.90 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 400mW
- Reverse Leakage Current (Ir)
- 1uA@5V
- Impedance(Zzt)
- 15Ω
- Zener Voltage(Range)
- 7V~7.9V
- Zener Voltage(Nom)
- 7.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
Low- power voltage regulator diodes in small hermetically sealed glass SOD80C Surface- Mounted Device (SMD) packages. The diodes are available in the normalized E24 ± 2% (BZV55- B) and approximately ± 5% (BZV55- C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Non- repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 500mW
- Two tolerance series: ± 2% and ± 5%
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Low differential resistance
- Small hermetically sealed glass SMD package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZV55-B7V5,115#C550413Nexperia · SOD-80C | Nexperia | SOD-80C | 1,645 | ₹17.38 · 1,645 in stock | View |
 | DL5236B#C2892643YONGYUTAI · LL-34 | YONGYUTAI | LL-34 | 700 | ₹2.39 · 700 in stock | View |
 | ZMM5236B#C5359953MSKSEMI · LL-34 | MSKSEMI | LL-34 | 50 | ₹2.82 · 50 in stock | View |
 | ZMM5236BPF#C7497512ST(Semtech) · LL-34 | ST(Semtech) | LL-34 | 440 | ₹3.19 · 440 in stock | View |
 | TZMC7V5-GS08#C2761032VISHAY · MiniMELF(SOD-80) | VISHAY | MiniMELF(SOD-80) | 3,870 | ₹5.48 · 3,870 in stock | View |
