NexperiaDatasheet (PDF)

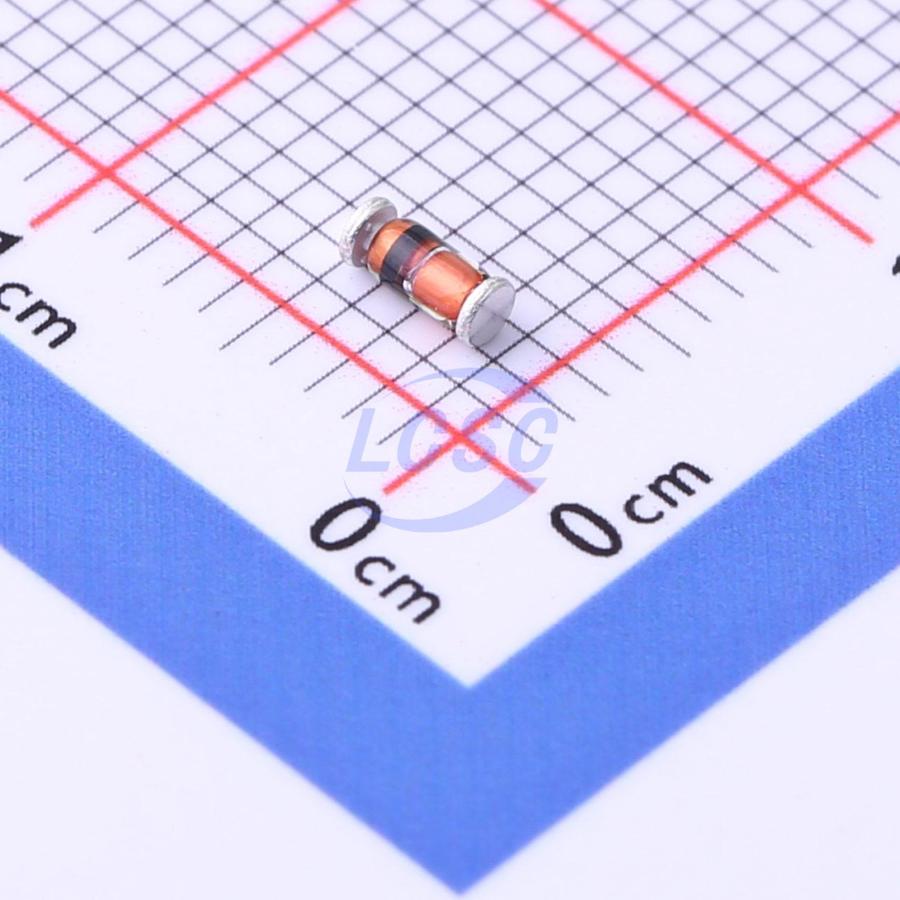

BZV55-C2V4,115
Zener Diode 2.4V 500mW Surface Mount SOD-80C
SOD-80CROHS3 CompliantActive
DIODE ZENER 2.4V 500mW SOD-80C
- Manufacturer
- Nexperia
- Manufacturer part #
- BZV55-C2V4,115
- Store part #
- C550425
- Package / case
- SOD-80C
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
515 in stock
#C550425
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.51 | ₹67.55 |
| 50+ | ₹10.61 | ₹530.50 |
| 150+ | ₹9.16 | ₹1,374.00 |
| 500+ | ₹8.07 | ₹4,035.00 |
| 2,500+ | ₹7.20 | ₹18,000.00 |
| 5,000+ | ₹6.77 | ₹33,850.00 |
5 × ₹13.51
₹67.55
excl. GST
₹79.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BZV55-C2V4,115
₹67.55 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 50uA@1V
- Impedance(Zzt)
- 100Ω
- Zener Voltage(Range)
- 2.2V~2.6V
- Zener Voltage(Nom)
- 2.4V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.057 g
Overview
Low- power voltage regulator diodes in small hermetically sealed glass SOD80C Surface- Mounted Device (SMD) packages. The diodes are available in the normalized E24 ± 2% (BZV55- B) and approximately ± 5% (BZV55- C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Non- repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 500mW
- Two tolerance series: ± 2% and ± 5%
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Low differential resistance
- Small hermetically sealed glass SMD package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZV55-C2V4,135#C550426Nexperia · SOD-80C | Nexperia | SOD-80C | 470 | ₹7.67 · 470 in stock | View |
 | BZV55C2V4#C545383LGE · LL-34 | LGE | LL-34 | 3,450 | ₹2.84 · 3,450 in stock | View |
 | ZMM2V4#C2891737YONGYUTAI · LL-34 | YONGYUTAI | LL-34 | 6,500 | ₹1.31 · 6,500 in stock | View |
 | BZM55C2V4-TR#C3739430VISHAY · SOD-80 | VISHAY | SOD-80 | 800 | ₹9.31 · 800 in stock | View |
 | ZMM2V4PF-M#C19190355ST(Semtech) · LL-34 | ST(Semtech) | LL-34 | 540 | ₹3.27 · 540 in stock | View |
