STDatasheet (PDF)

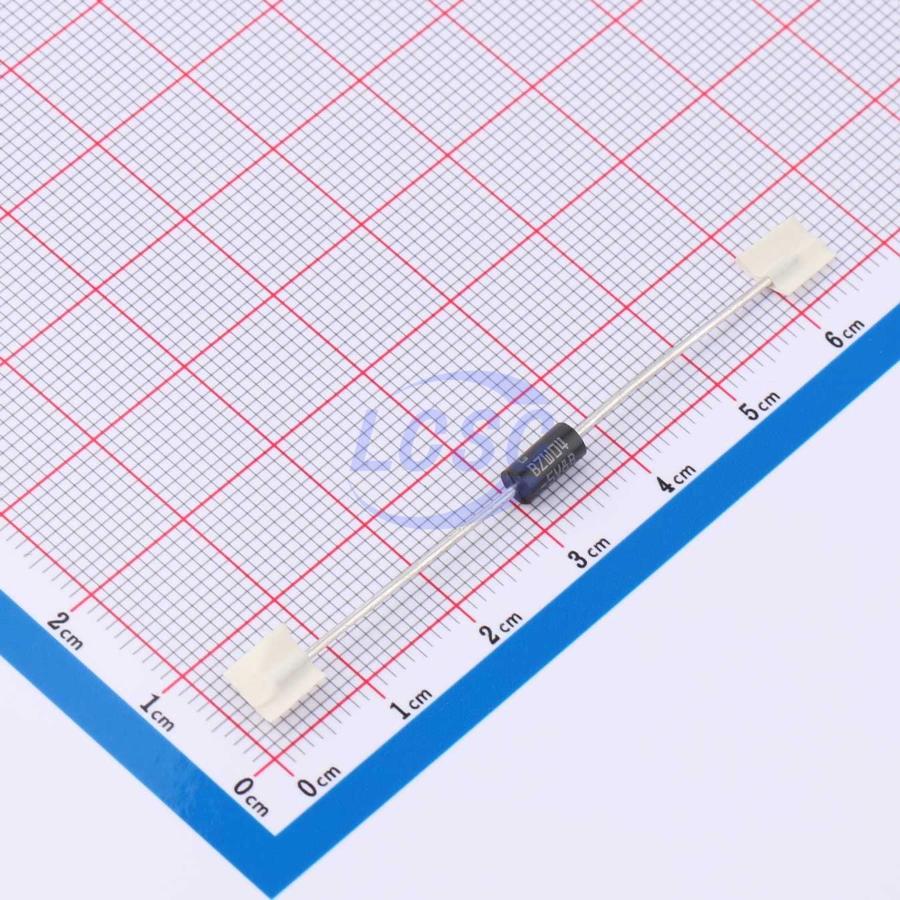

BZW04-5V8B
13.4VC Clamp 38A@10/1000us 174A@8/20us Ipp TVS DIODE DO-15
DO-15ROHS3 CompliantActive
TVS DIODE 5.8VWM 13.4VC DO-15
- Manufacturer
- ST
- Manufacturer part #
- BZW04-5V8B
- Store part #
- C1665833
- Package / case
- DO-15
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
120 in stock
#C1665833
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.07 | ₹195.35 |
| 50+ | ₹30.52 | ₹1,526.00 |
| 150+ | ₹26.86 | ₹4,029.00 |
| 1,000+ | ₹22.28 | ₹22,280.00 |
| 2,000+ | ₹20.24 | ₹40,480.00 |
| 5,000+ | ₹19.02 | ₹95,100.00 |
5 × ₹39.07
₹195.35
excl. GST
₹230.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per box
BZW04-5V8B
₹195.35 for 5 + GST
Specifications
- Clamping Voltage
- 10.5V
- Peak Pulse Current (Ipp)
- 38A@10/1000us;174A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 6.45V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1mA
- Reverse Stand-Off Voltage (Vrwm)
- 5.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Box
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.512 g
Overview
Transil diodes provide high overvoltage protection by clamping action. Their instantaneous response to transient overvoltages makes them particularly suited to protect voltage sensitive devices such as MOS Technology and low voltage supplied IC’s.
Key features
- I PEAK PULSE POWER : 400 W (10/1000µs)
- I STAND-OFF VOLTAGE RANGE : From 5.8V to 376 V
- I UNI AND BIDIRECTIONAL TYPES
- I LOW CLAMPING FACTOR
- I FAST RESPONSE TIME
- I UL RECOGNIZED
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| P4KE6.8CA#C1975460Littelfuse · DO-41(DO-204AL) | Littelfuse | DO-41(DO-204AL) | 4,690 | ₹24.83 · 4,690 in stock | View | |
| P4KE6.8CA#C3718664DIOTEC · DO-15 | DIOTEC | DO-15 | On request | ₹12.44 · 0 in stock | View | |
| P4KE6.8CA#C3718343Taiwan Semiconductor · DO-204AL(DO-41) | Taiwan Semiconductor | DO-204AL(DO-41) | On request | ₹15.69 · 0 in stock | View | |
| P4KE6.8CA#C3719026SMC · DO-41 | SMC | DO-41 | On request | ₹11.48 · 0 in stock | View | |
