VISHAYDatasheet (PDF)

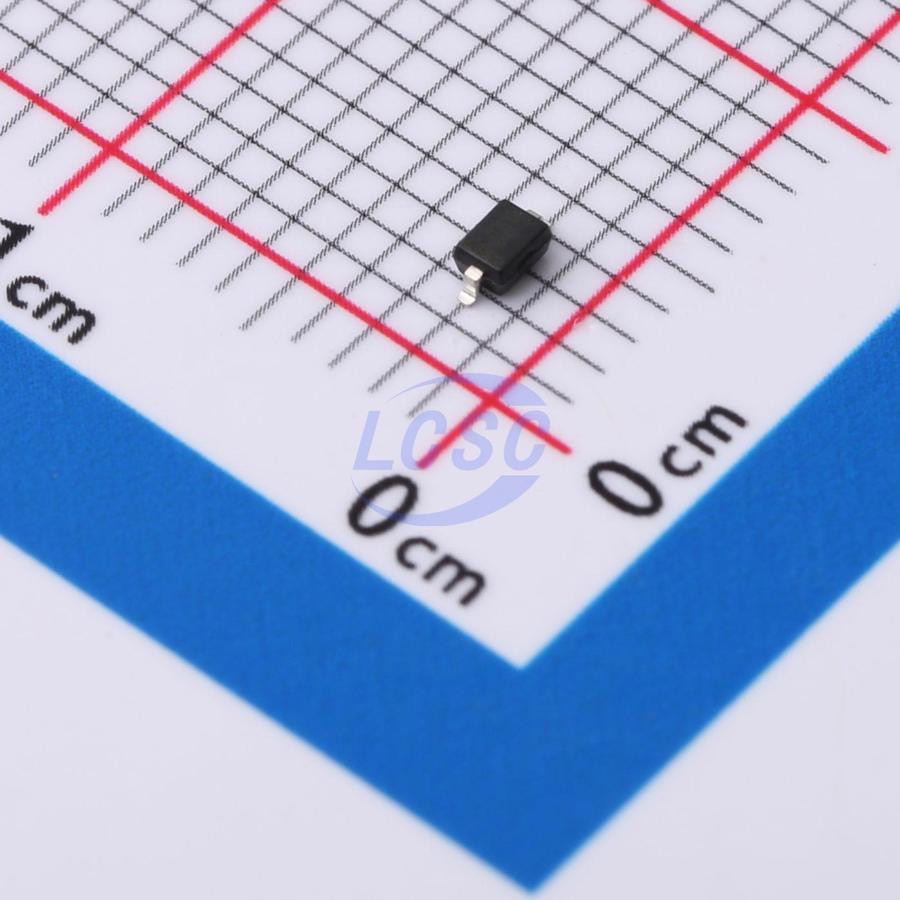

BZX384C20-E3-08
Zener Diode Independent 20V 200mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 20V 200mW SOD-323
- Manufacturer
- VISHAY
- Manufacturer part #
- BZX384C20-E3-08
- Store part #
- C4555438
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,920 in stock
#C4555438
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.67 | ₹76.70 |
| 100+ | ₹6.09 | ₹609.00 |
| 300+ | ₹5.28 | ₹1,584.00 |
| 3,000+ | ₹4.26 | ₹12,780.00 |
| 6,000+ | ₹3.78 | ₹22,680.00 |
| 9,000+ | ₹3.53 | ₹31,770.00 |
10 × ₹7.67
₹76.70
excl. GST
₹90.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX384C20-E3-08
₹76.70 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 50nA@14V
- Impedance(Zzt)
- 55Ω
- Zener Voltage(Range)
- 18.8V~21.2V
- Zener Voltage(Nom)
- 20V
- Impedance(Zzk)
- 60Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
Key features
- Silicon planar Zener diodes
- The Zener voltages are graded according to the international E24 standard
- Standard Zener voltage tolerance is ± 5%; replace "C" with "B" for ± 2% tolerance
- AEC-Q101 qualified available
- ESD capability according to AEC-Q101: Human body model >8kV Machine model >800V
- RoHS-compliant, commercial grade
- RoHS-compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C20S-7-F#C362114DIODES · SOD-323 | DIODES | SOD-323 | 240 | ₹2.02 · 240 in stock | View |
 | MM3Z20#C216760Shikues · SOD-323 | Shikues | SOD-323 | 550 | ₹2.22 · 550 in stock | View |
 | BZT52C20S#C5190180Guangdong Hottech · SOD-323 | Guangdong Hottech | SOD-323 | 400 | ₹2.08 · 400 in stock | View |
 | MM3Z20-MS#C22459427MSKSEMI · SOD-323 | MSKSEMI | SOD-323 | 350 | ₹2.17 · 350 in stock | View |
 | BZT52C20SQ#C2857091JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 1,300 | ₹2.46 · 1,300 in stock | View |
