NexperiaDatasheet (PDF)

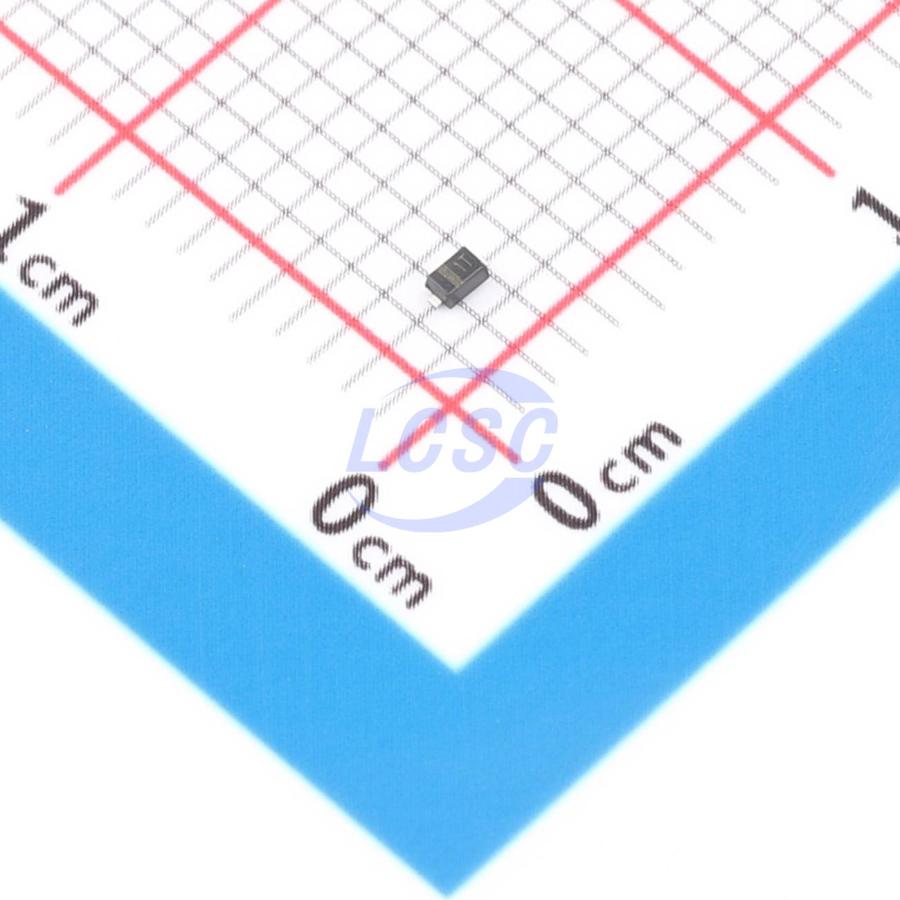

BZX58550-C3V9X
1 Independent 3.7V~4.1V 3.9V SOD-523 Single Zener Diodes RoHS
SOD-523ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX58550-C3V9X
- Store part #
- C3765552
- Package / case
- SOD-523
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
195 in stock
#C3765552
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.86 | ₹129.30 |
| 50+ | ₹25.22 | ₹1,261.00 |
| 150+ | ₹24.78 | ₹3,717.00 |
| 500+ | ₹24.34 | ₹12,170.00 |
5 × ₹25.86
₹129.30
excl. GST
₹152.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX58550-C3V9X
₹129.30 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 5uA@2V
- Zener Voltage(Range)
- 3.7V~4.1V
- Zener Voltage(Nom)
- 3.9V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
Low- current voltage regulator diodes in an SOD523 (SC- 79) ultra small and flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- Low-current general regulation functions
Key features
- Total power dissipation: ≤ 300 mW
- Tolerance series: approximately ± 5%
- Working voltage range: nominal 1.8 V to 10 V
- Specified at a low test current (50 μA), ideal for low bias and portable battery-powered applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX585-C3V9,115#C550653Nexperia · SOD-523(SC-79) | Nexperia | SOD-523(SC-79) | 2,750 | ₹8.24 · 2,750 in stock | View |
 | BZT52C3V9T-7#C151623DIODES · SOD-523 | DIODES | SOD-523 | 80 | ₹8.88 · 80 in stock | View |
 | BZX584C3V9Q#C20167689YANGJIE · SOD-523(SC-79) | YANGJIE | SOD-523(SC-79) | 4,520 | ₹4.68 · 4,520 in stock | View |
 | BZX584C3V9-HG3-08#C5566533VISHAY · SOD-523 | VISHAY | SOD-523 | 185 | ₹10.66 · 185 in stock | View |
 | MM5Z3V9#C19273108YFW · SOD-523 | YFW | SOD-523 | 2,680 | ₹2.53 · 2,680 in stock | View |
