DIODESDatasheet (PDF)

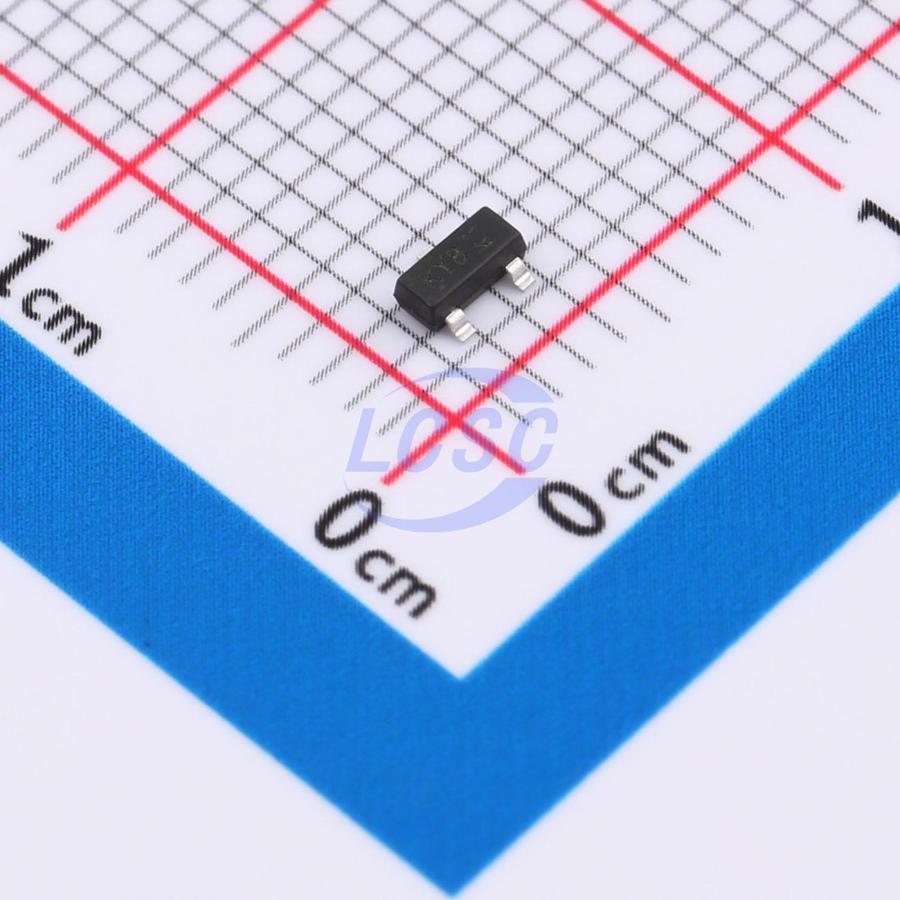

BZX84B22Q-7-F
Zener Diode 22V 350mW Surface Mount SOT-23-3
SOT-23-3ROHS3 CompliantActive
DIODE ZENER 22V 350mW SOT-23-3
- Manufacturer
- DIODES
- Manufacturer part #
- BZX84B22Q-7-F
- Store part #
- C6136628
- Package / case
- SOT-23-3
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C6136628
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹13.30 | ₹133.00 |
| 100+ | ₹11.25 | ₹1,125.00 |
| 300+ | ₹10.21 | ₹3,063.00 |
| 3,000+ | ₹9.43 | ₹28,290.00 |
| 6,000+ | ₹8.81 | ₹52,860.00 |
| 9,000+ | ₹8.51 | ₹76,590.00 |
10 × ₹13.30
₹133.00
excl. GST
₹156.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX84B22Q-7-F
₹133.00 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 350mW
- Reverse Leakage Current (Ir)
- 100nA
- Impedance(Zzt)
- 55Ω
- Zener Voltage(Range)
- 21.6V~22.4V
- Zener Voltage(Nom)
- 22V
- Impedance(Zzk)
- 250Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Key features
- ±2% Tolerance on Vz
- 350mW Power Dissipation
- Zener Voltages from 2.7V - 39V
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX84B22#C968221YANGJIE · SOT-23(TO-236) | YANGJIE | SOT-23(TO-236) | 1,820 | ₹4.39 · 1,820 in stock | View |
 | BZX84C22Q-7-F#C5584744DIODES · SOT-23 | DIODES | SOT-23 | 100 | ₹6.95 · 100 in stock | View |
 | BZX84C22#C841168LGE · SOT-23 | LGE | SOT-23 | 640 | ₹2.32 · 640 in stock | View |
| BZX84B22#C41382573YFW · SOT-23 | YFW | SOT-23 | 2,980 | ₹3.27 · 2,980 in stock | View | |
 | BZX84B22#C51315237CBI · SOT-23 | CBI | SOT-23 | 2,950 | ₹2.12 · 2,950 in stock | View |
