VISHAYDatasheet (PDF)

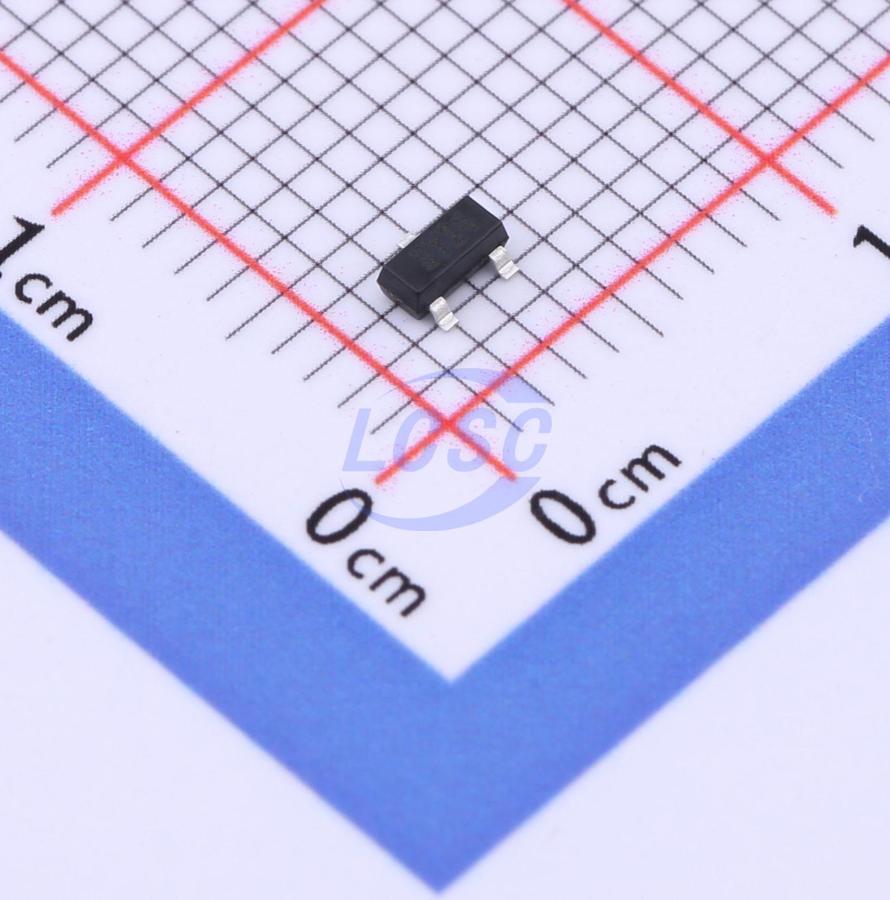

BZX84C12-E3-08
Zener Diode Independent 12V 500mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
DIODE ZENER 12V 500mW SOT-23
- Manufacturer
- VISHAY
- Manufacturer part #
- BZX84C12-E3-08
- Store part #
- C917506
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C917506
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.87 | ₹78.70 |
| 100+ | ₹6.23 | ₹623.00 |
| 300+ | ₹5.40 | ₹1,620.00 |
| 3,000+ | ₹4.79 | ₹14,370.00 |
| 6,000+ | ₹4.29 | ₹25,740.00 |
| 9,000+ | ₹4.05 | ₹36,450.00 |
10 × ₹7.87
₹78.70
excl. GST
₹92.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX84C12-E3-08
₹78.70 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 100nA
- Impedance(Zzt)
- 25Ω
- Zener Voltage(Range)
- 11.4V~12.6V
- Zener Voltage(Nom)
- 12V
- Impedance(Zzk)
- 150Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
Key features
- Silicon planar Zener diode
- Zener voltage graded per international E24 standard; standard Zener voltage tolerance ±5%, designated "C" in order code; replace "C" with "B" for ±2% tolerance
- AEC-Q101 qualified version available
- ESD capability per AEC-Q101: Human Body Model >8 kV, Machine Model >800 V
- RoHS compliant, commercial grade
- RoHS compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX84C12#C19077471R+O · SOT-23 | R+O | SOT-23 | 39,000 | ₹2.37 · 39,000 in stock | View |
 | TPZ12VCS3#C46472812TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,000 | ₹2.80 · 1,000 in stock | View |
 | BZX84C12#C5359913MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 6,080 | ₹3.49 · 6,080 in stock | View |
 | BZX84C12-HE3_A-08#C20568187VISHAY · SOT-23(TO-236) | VISHAY | SOT-23(TO-236) | 3,000 | ₹31.84 · 3,000 in stock | View |
 | MMBZ5242B#C21547686DOWO · SOT-23 | DOWO | SOT-23 | 3,500 | ₹2.01 · 3,500 in stock | View |
