NexperiaDatasheet (PDF)

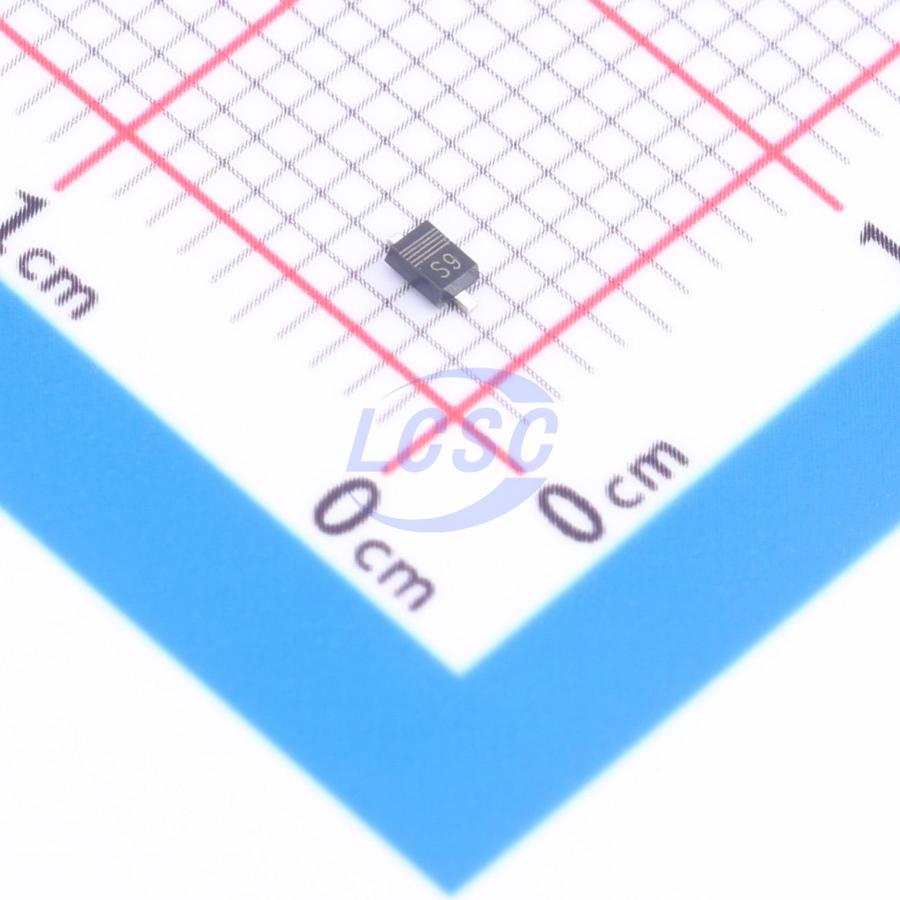

BZX84J-B11,115
1 Independent 10.8V~11.2V 11V SOD-323F Single Zener Diodes RoHS
SOD-323FROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX84J-B11,115
- Store part #
- C550968
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
189 in stock
#C550968
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹29.07 | ₹29.07 |
| 10+ | ₹28.40 | ₹284.00 |
| 30+ | ₹27.98 | ₹839.40 |
| 100+ | ₹27.54 | ₹2,754.00 |
1 × ₹29.07
₹29.07
excl. GST
₹34.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX84J-B11,115
₹29.07 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 550mW
- Reverse Leakage Current (Ir)
- 100nA@8V
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 10.8V~11.2V
- Zener Voltage(Nom)
- 11V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.031 g
Overview
General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 550mW
- AEC-Q101 qualified
- Small plastic package suitable for surface-mounted design
- Wide working voltage range: nominal 2.4V to 75V E24 range
- Two tolerance series: ± 2% and ± 5%
- Low differential resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TDZ11J,115#C553816Nexperia · SOD-323F | Nexperia | SOD-323F | 1,430 | ₹8.52 · 1,430 in stock | View |
 | PDZ11B,115#C552269Nexperia · SOD-323 | Nexperia | SOD-323 | 20 | ₹6.09 · 20 in stock | View |
 | PZU11B2A,115#C553582Nexperia · SOD-323 | Nexperia | SOD-323 | 2,970 | ₹7.26 · 2,970 in stock | View |
 | BZX384-B11,115#C454990Nexperia · SOD-323(SC-76) | Nexperia | SOD-323(SC-76) | 3,680 | ₹16.34 · 3,680 in stock | View |
 | BZX384B11-E3-18#C511526VISHAY · SC-76 | VISHAY | SC-76 | 4,200 | ₹5.77 · 4,200 in stock | View |
