NexperiaDatasheet (PDF)

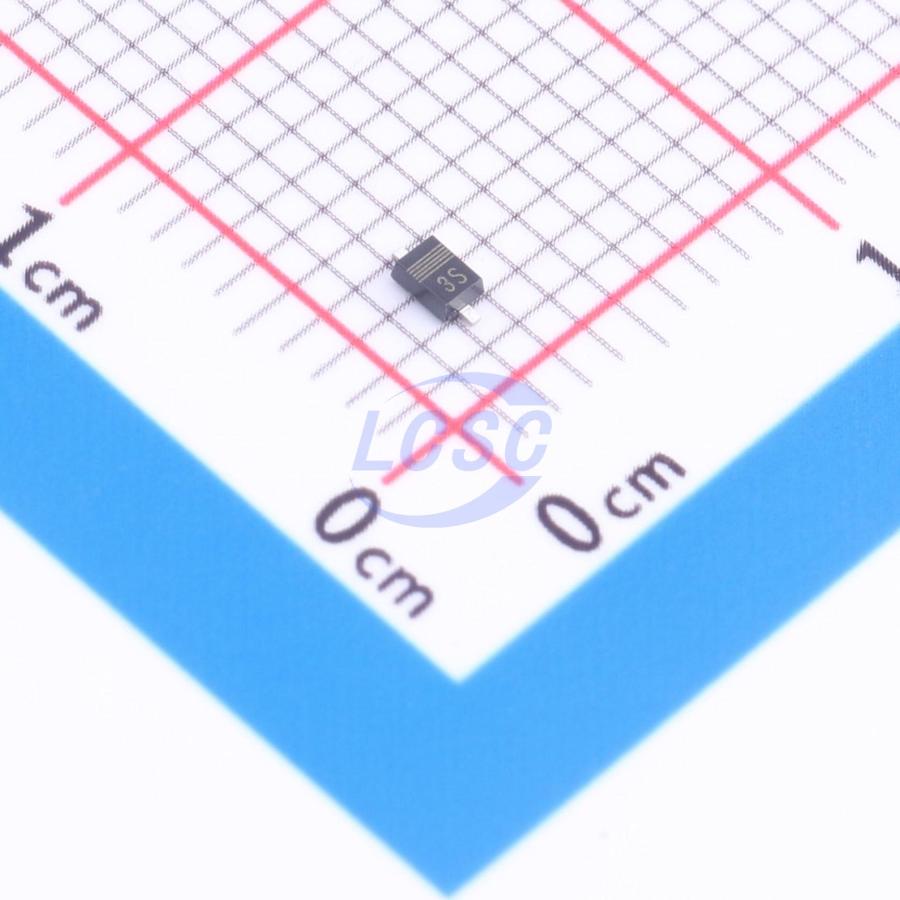

TDZ11J,115
1 Independent 10.8V~11.2V 11V SOD-323F Single Zener Diodes RoHS
SOD-323FROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- TDZ11J,115
- Store part #
- C553816
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,430 in stock
#C553816
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.52 | ₹85.20 |
| 100+ | ₹6.69 | ₹669.00 |
| 300+ | ₹5.78 | ₹1,734.00 |
| 3,000+ | ₹5.09 | ₹15,270.00 |
| 6,000+ | ₹4.55 | ₹27,300.00 |
| 9,000+ | ₹4.27 | ₹38,430.00 |
10 × ₹8.52
₹85.20
excl. GST
₹100.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TDZ11J,115
₹85.20 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 100nA@8V
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 10.8V~11.2V
- Zener Voltage(Nom)
- 11V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.033 g
Overview
General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 180W
- Low differential resistance
- Total power dissipation: ≤ 500mW
- AEC-Q101 qualified
- Very small plastic package suitable for surface-mounted design
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DDZ11BSF-7#C3732456DIODES · SOD-323F | DIODES | SOD-323F | 30 | ₹11.05 · 30 in stock | View |
 | BZX384B11-E3-18#C511526VISHAY · SC-76 | VISHAY | SC-76 | 4,200 | ₹5.77 · 4,200 in stock | View |
 | BZX84J-B11,115#C550968Nexperia · SOD-323F | Nexperia | SOD-323F | 189 | ₹29.07 · 189 in stock | View |
 | BZT52B11S#C18547711MSKSEMI · SOD-323 | MSKSEMI | SOD-323 | 2,650 | ₹1.96 · 2,650 in stock | View |
 | BZT52B11S#C213259FMS(Formosa Microsemi) · SOD-323 | FMS(Formosa Microsemi) | SOD-323 | 20 | ₹3.18 · 20 in stock | View |
