DIODESDatasheet (PDF)

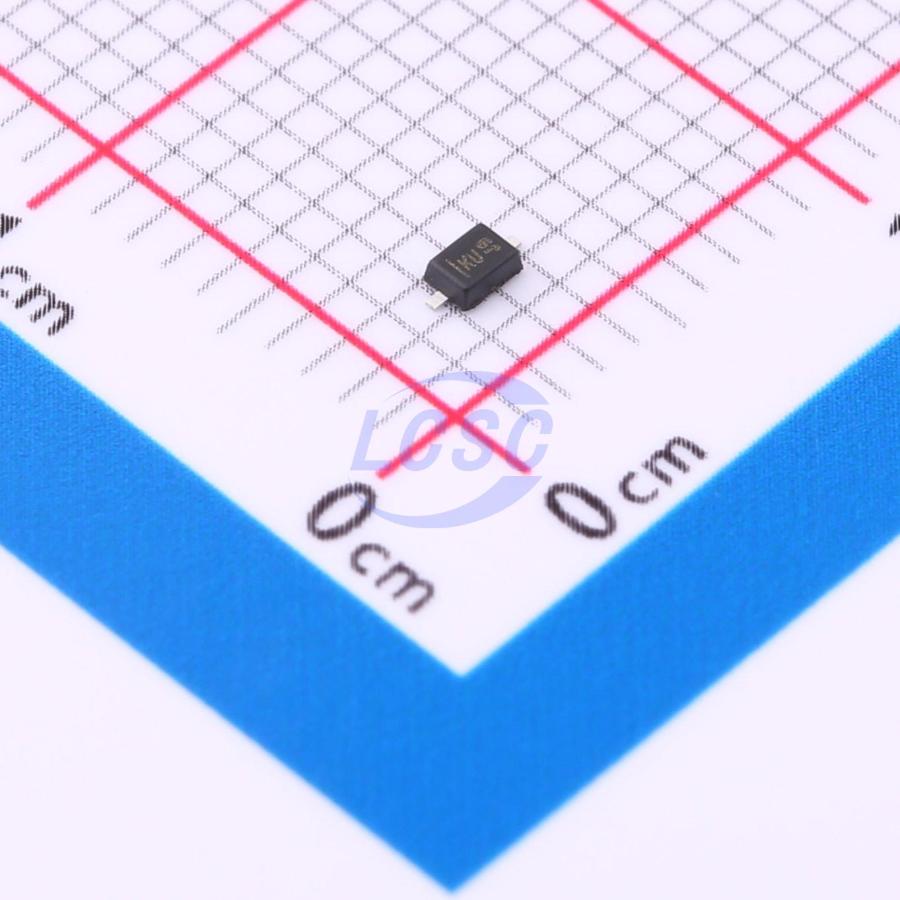

DDZ11BSF-7
Zener Diode 11V 500mW Surface Mount SOD-323F
SOD-323FROHS CompliantSold out at source
DIODE ZENER 11V 500mW SOD-323F
- Manufacturer
- DIODES
- Manufacturer part #
- DDZ11BSF-7
- Store part #
- C3732456
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C3732456
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹11.05 | ₹110.50 |
| 100+ | ₹9.33 | ₹933.00 |
| 300+ | ₹8.48 | ₹2,544.00 |
| 3,000+ | ₹7.83 | ₹23,490.00 |
| 6,000+ | ₹7.32 | ₹43,920.00 |
| 9,000+ | ₹7.06 | ₹63,540.00 |
10 × ₹11.05
₹110.50
excl. GST
₹130.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DDZ11BSF-7
₹110.50 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 70nA@9.98V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 10.5V~11.05V
- Zener Voltage(Nom)
- 11V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.027 g
Overview
Key features
- 500mW Power Dissipation on FR-4 PCB
- Very Tight Tolerance on Vz
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TDZ11J,115#C553816Nexperia · SOD-323F | Nexperia | SOD-323F | 1,430 | ₹8.52 · 1,430 in stock | View |
 | MM3Z11BW#C2857013JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 1,300 | ₹2.65 · 1,300 in stock | View |
 | MM3Z11BW#C5157073Jingdao Microelectronics · SOD-323W | Jingdao Microelectronics | SOD-323W | 3,000 | ₹2.24 · 3,000 in stock | View |
 | MM3Z11-TD#C51902122TDSEMIC · SOD-323 | TDSEMIC | SOD-323 | 3,000 | ₹1.15 · 3,000 in stock | View |
 | MM3Z11-MS#C22459421MSKSEMI · SOD-323 | MSKSEMI | SOD-323 | 350 | ₹2.24 · 350 in stock | View |
