NexperiaDatasheet (PDF)

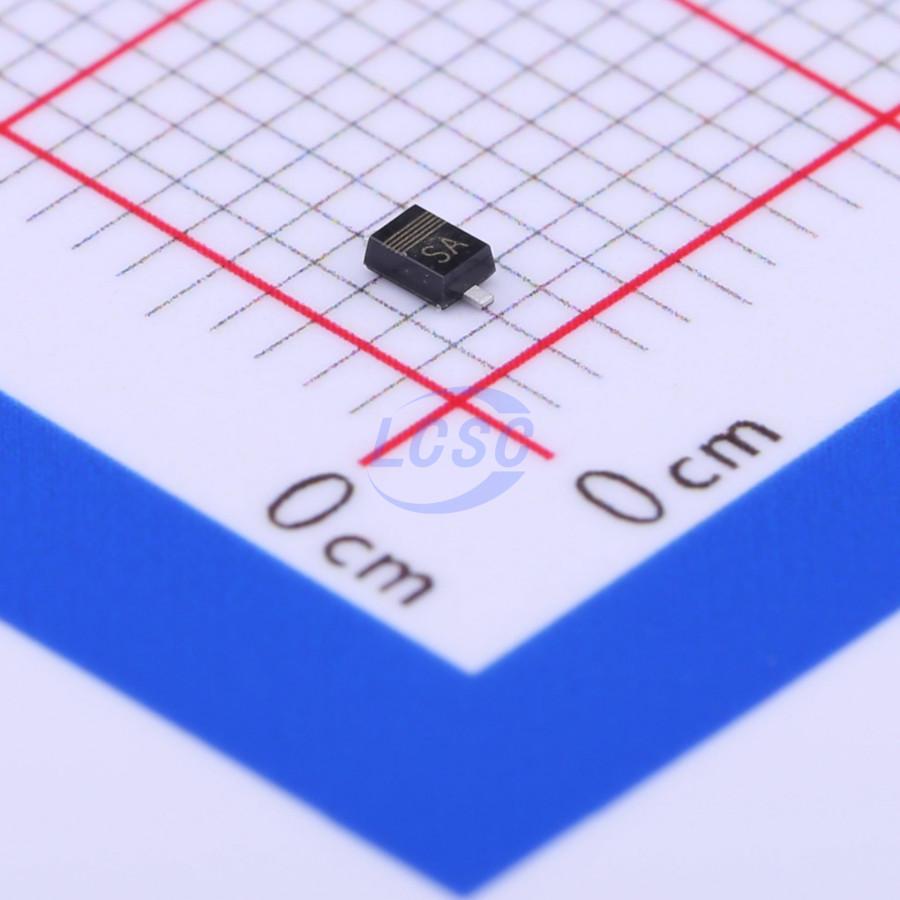

BZX84J-B12,115
Zener Diode Independent 12V 550mW Surface Mount SOD-323F
SOD-323FROHS3 CompliantActive
DIODE ZENER 12V 550mW SOD-323F
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX84J-B12,115
- Store part #
- C295457
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
340 in stock
#C295457
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.95 | ₹124.75 |
| 50+ | ₹19.49 | ₹974.50 |
| 150+ | ₹17.15 | ₹2,572.50 |
| 500+ | ₹14.22 | ₹7,110.00 |
| 3,000+ | ₹12.93 | ₹38,790.00 |
| 6,000+ | ₹12.15 | ₹72,900.00 |
5 × ₹24.95
₹124.75
excl. GST
₹147.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX84J-B12,115
₹124.75 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 550mW
- Reverse Leakage Current (Ir)
- 100nA@8V
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 11.8V~12.2V
- Zener Voltage(Nom)
- 12V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 550mW
- AEC-Q101 qualified
- Small plastic package suitable for surface-mounted design
- Wide working voltage range: nominal 2.4V to 75V E24 range
- Two tolerance series: ± 2% and ± 5%
- Low differential resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX84J-C12,115#C2928908Nexperia · SOD-323F | Nexperia | SOD-323F | 2,510 | ₹13.67 · 2,510 in stock | View |
 | MM3Z12BW#C50326947YFW · SOD-323 | YFW | SOD-323 | 20 | ₹3.04 · 20 in stock | View |
 | BZT52B12SQ#C5185075YANGJIE · SOD-323 | YANGJIE | SOD-323 | 140 | ₹4.86 · 140 in stock | View |
 | MM3Z12-TD#C51902123TDSEMIC · SOD-323 | TDSEMIC | SOD-323 | 2,950 | ₹2.51 · 2,950 in stock | View |
 | PDZ12B,115-JSM#C53114140JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 3,200 | ₹5.74 · 3,200 in stock | View |
