NexperiaDatasheet (PDF)

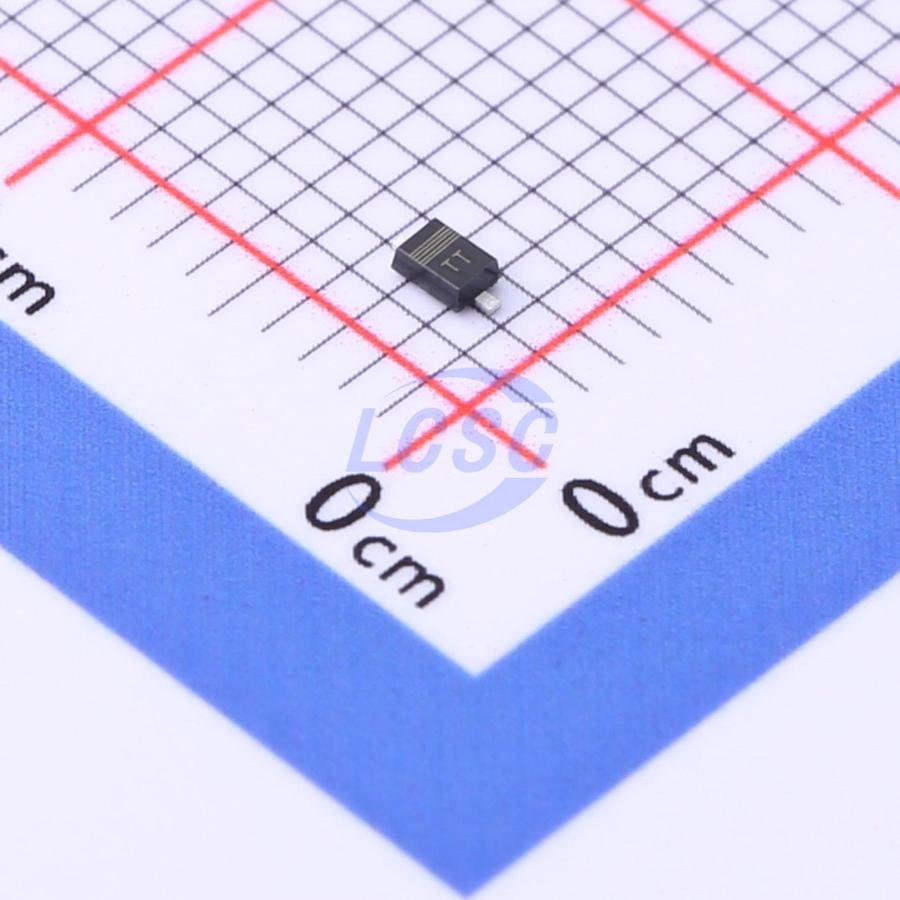

BZX84J-C12,115
Zener Diode Independent 12V 550mW Surface Mount SOD-323F
SOD-323FROHS3 CompliantActive
DIODE ZENER 12V 550mW SOD-323F
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX84J-C12,115
- Store part #
- C2928908
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,510 in stock
#C2928908
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.67 | ₹68.35 |
| 50+ | ₹10.74 | ₹537.00 |
| 150+ | ₹9.27 | ₹1,390.50 |
| 500+ | ₹8.18 | ₹4,090.00 |
| 3,000+ | ₹7.29 | ₹21,870.00 |
| 6,000+ | ₹6.85 | ₹41,100.00 |
5 × ₹13.67
₹68.35
excl. GST
₹80.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX84J-C12,115
₹68.35 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 550mW
- Reverse Leakage Current (Ir)
- 100nA@8V
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 11.4V~12.7V
- Zener Voltage(Nom)
- 12V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.023 g
Overview
General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 550mW
- AEC-Q101 qualified
- Small plastic package suitable for surface-mounted design
- Wide working voltage range: nominal 2.4V to 75V E24 range
- Two tolerance series: ± 2% and ± 5%
- Low differential resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX84J-B12,115#C295457Nexperia · SOD-323F | Nexperia | SOD-323F | 340 | ₹24.95 · 340 in stock | View |
 | BZT52C12S#C2932773GOODWORK · SOD-323 | GOODWORK | SOD-323 | 27,650 | ₹2.00 · 27,650 in stock | View |
| BZX384C12-E3-08#C917475VISHAY · SOD-323 | VISHAY | SOD-323 | 1,620 | ₹9.71 · 1,620 in stock | View | |
 | BZT52C12S#C5353070FOSAN · SOD-323 | FOSAN | SOD-323 | 2,450 | ₹1.59 · 2,450 in stock | View |
 | MM3Z12#C169487Jingdao Microelectronics · SOD-323 | Jingdao Microelectronics | SOD-323 | 1,900 | ₹2.63 · 1,900 in stock | View |
