NexperiaDatasheet (PDF)

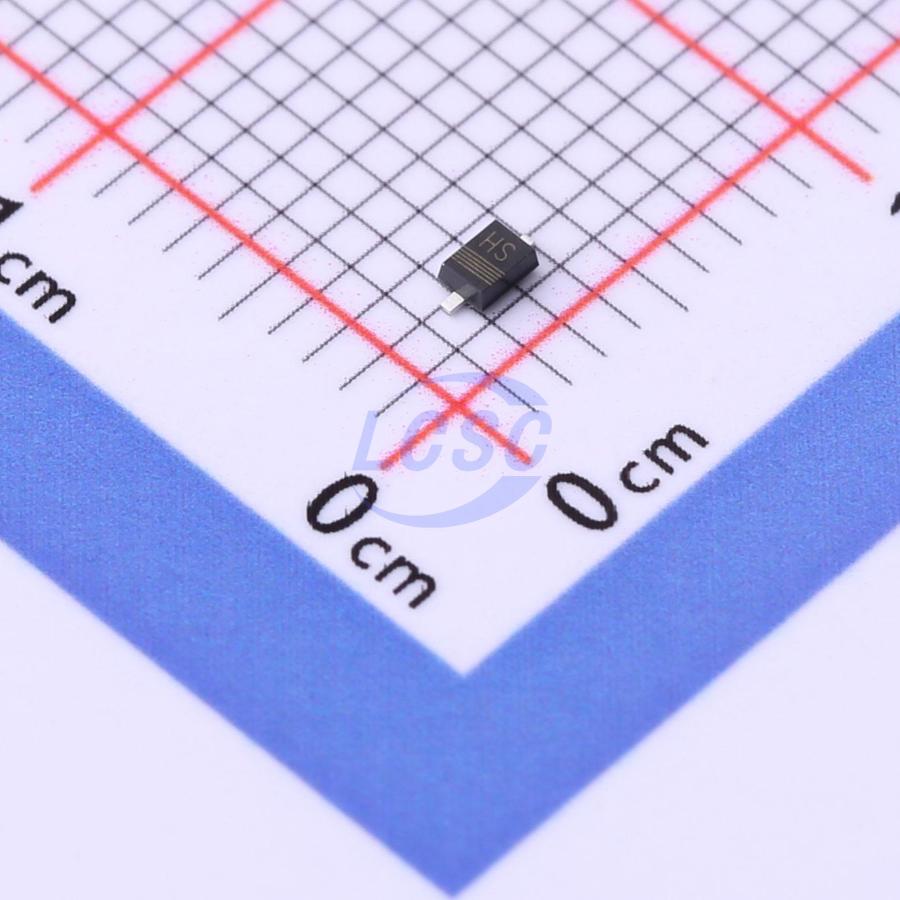

BZX84J-B24,115
Zener Diode 24V 550mW Surface Mount SOD-323F
SOD-323FROHS3 CompliantActive
DIODE ZENER 24V 550mW SOD-323F
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX84J-B24,115
- Store part #
- C489230
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
Out of stock
#C489230
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.29 | ₹92.90 |
| 100+ | ₹7.44 | ₹744.00 |
| 300+ | ₹6.51 | ₹1,953.00 |
| 3,000+ | ₹5.81 | ₹17,430.00 |
| 6,000+ | ₹5.25 | ₹31,500.00 |
| 9,000+ | ₹4.97 | ₹44,730.00 |
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 550mW
- Reverse Leakage Current (Ir)
- 50nA@16.8V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 23.5V~24.5V
- Zener Voltage(Nom)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.022 g
Overview
General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 550mW
- AEC-Q101 qualified
- Small plastic package suitable for surface-mounted design
- Wide working voltage range: nominal 2.4V to 75V E24 range
- Two tolerance series: ± 2% and ± 5%
- Low differential resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PDZ24B,115#C552309Nexperia · SOD-323 | Nexperia | SOD-323 | 2,030 | ₹22.48 · 2,030 in stock | View |
| PZU24B2A,115#C553674Nexperia · SOD-323 | Nexperia | SOD-323 | 80 | ₹27.20 · 80 in stock | View | |
 | BZX384-B24,115#C550550Nexperia · SOD-323 | Nexperia | SOD-323 | 52,000 | ₹3.90 · 52,000 in stock | View |
 | BZX84J-C24,115#C551007Nexperia · SOD-323F | Nexperia | SOD-323F | 35,830 | ₹9.67 · 35,830 in stock | View |
 | MM3Z24VB#C891592onsemi · SOD-323FL | onsemi | SOD-323FL | 10 | ₹8.97 · 10 in stock | View |
