NexperiaDatasheet (PDF)

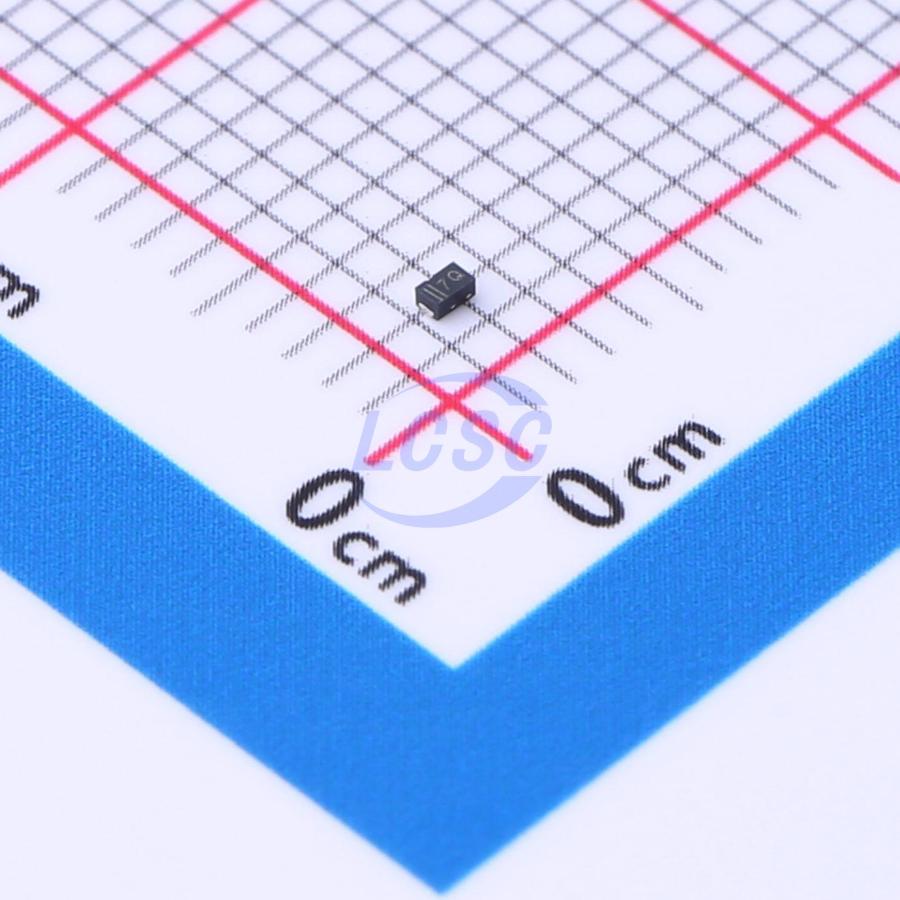

BZX8850S-C20-QYL
Zener Diode 20V 365mW Surface Mount SOD-882
SOD-882ROHS3 CompliantActive
DIODE ZENER 20V 365mW SOD-882
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX8850S-C20-QYL
- Store part #
- C3734613
- Package / case
- SOD-882
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
86 in stock
#C3734613
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.37 | ₹67.37 |
| 10+ | ₹53.54 | ₹535.40 |
| 30+ | ₹47.72 | ₹1,431.60 |
| 100+ | ₹40.38 | ₹4,038.00 |
| 500+ | ₹37.14 | ₹18,570.00 |
| 1,000+ | ₹35.19 | ₹35,190.00 |
1 × ₹67.37
₹67.37
excl. GST
₹79.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BZX8850S-C20-QYL
₹67.37 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Pd - Power Dissipation
- 365mW
- Reverse Leakage Current (Ir)
- 50nA@15.2V
- Zener Voltage(Range)
- 19V~21V
- Zener Voltage(Nom)
- 20V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.03 g
Overview
Low- current voltage regulator diodes in an ultra small SOD882BD (DFN1006BD- 2) leadless Surface- Mounted Device (SMD) plastic package with side- wettable flanks.
Applications
- Low-current general regulation functions
Key features
- Total power dissipation: ≤ 365 mW
- Tolerance series: approximately ± 5%
- Working voltage range: nominal 1.8 V to 75 V
- Specified at a low test current (50 μA), ideal for low bias and portable battery-powered applications
- Qualified according to AEC-Q101 and recommended for use in automotive applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX884S-C20-QYL#C3739238Nexperia · SOD-882 | Nexperia | SOD-882 | 34 | ₹90.44 · 34 in stock | View |
| BZX884-C20,315#C551224Nexperia · DFN1006-2 | Nexperia | DFN1006-2 | On request | ₹2.61 · 0 in stock | View | |
 | BZX884S-B20-QYL#C3732921Nexperia · SOD-882 | Nexperia | SOD-882 | 58 | ₹30.01 · 58 in stock | View |
 | PZU20BL,315#C553659Nexperia · DFN1006-2 | Nexperia | DFN1006-2 | 85 | ₹25.24 · 85 in stock | View |
| SZNZ8F20VSMX2WT5G#C3735195onsemi · X2DFNW2(0.6x1) | onsemi | X2DFNW2(0.6x1) | 396 | ₹36.65 · 396 in stock | View | |
