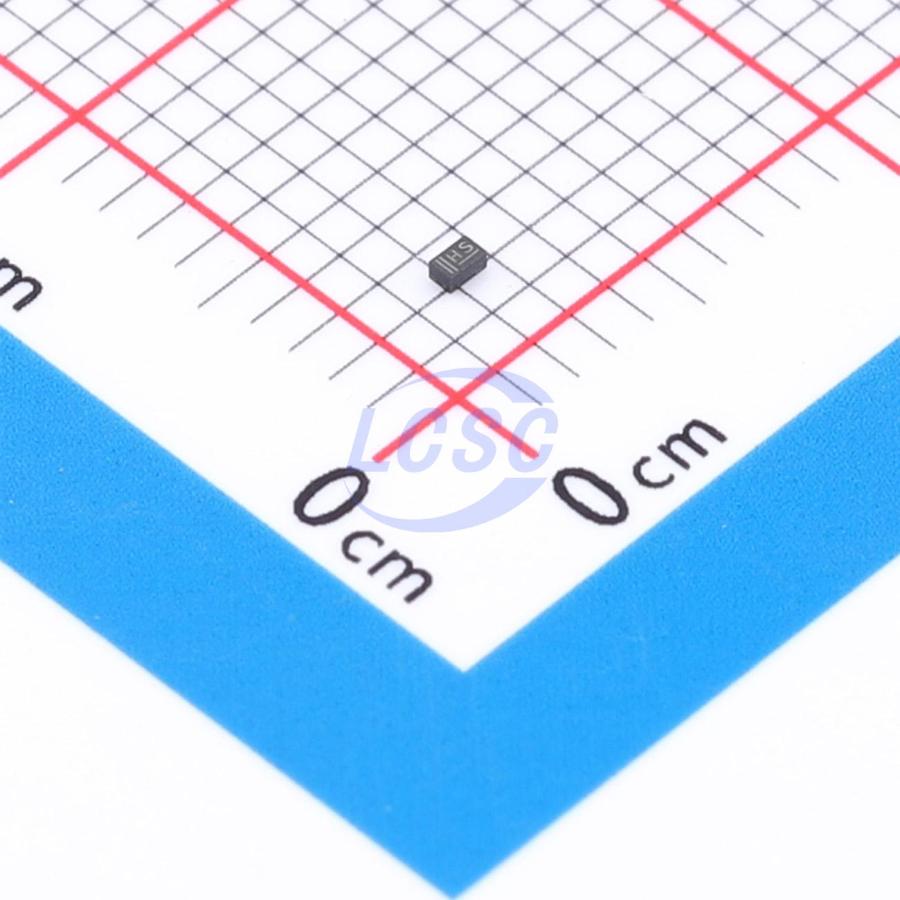

PZU20BL,315
1 Independent 18.86V~21.08V 20V DFN1006-2 Single Zener Diodes RoHS
DFN1006-2ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PZU20BL,315
- Store part #
- C553659
- Package / case
- DFN1006-2
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
85 in stock
#C553659
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.24 | ₹126.20 |
| 50+ | ₹24.66 | ₹1,233.00 |
| 150+ | ₹24.26 | ₹3,639.00 |
| 500+ | ₹23.88 | ₹11,940.00 |
5 × ₹25.24
₹126.20
excl. GST
₹148.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
PZU20BL,315
₹126.20 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 250mW
- Reverse Leakage Current (Ir)
- 50nA@15V
- Impedance(Zzt)
- 20Ω
- Zener Voltage(Range)
- 18.86V~21.08V
- Zener Voltage(Nom)
- 20V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.102 g
Overview
General- purpose Zener diodes in a SOD882 leadless ultra small Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non- repetitive peak reverse power dissipation: PZSM ≤ 40 W
- Total power dissipation: Ptot ≤ 250 mW
- Tolerance series: B: approximately ± 5%; B2: approximately ± 2%
- Wide working voltage range: nominal 2.4 V to 36 V (E24 range)
- Low reverse current IR range
- Small plastic package suitable for surface- mounted design
- AEC- Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BZX884-C20,315#C551224Nexperia · DFN1006-2 | Nexperia | DFN1006-2 | On request | ₹2.61 · 0 in stock | View | |
| SZNZ8F20VSMX2WT5G#C3735195onsemi · X2DFNW2(0.6x1) | onsemi | X2DFNW2(0.6x1) | 396 | ₹36.65 · 396 in stock | View | |
 | BZX884S-C20-QYL#C3739238Nexperia · SOD-882 | Nexperia | SOD-882 | 34 | ₹90.44 · 34 in stock | View |
 | BZX8850S-C20-QYL#C3734613Nexperia · SOD-882 | Nexperia | SOD-882 | 86 | ₹67.37 · 86 in stock | View |
 | BZX884S-B20-QYL#C3732921Nexperia · SOD-882 | Nexperia | SOD-882 | 58 | ₹30.01 · 58 in stock | View |
