HXY MOSFETDatasheet (PDF)

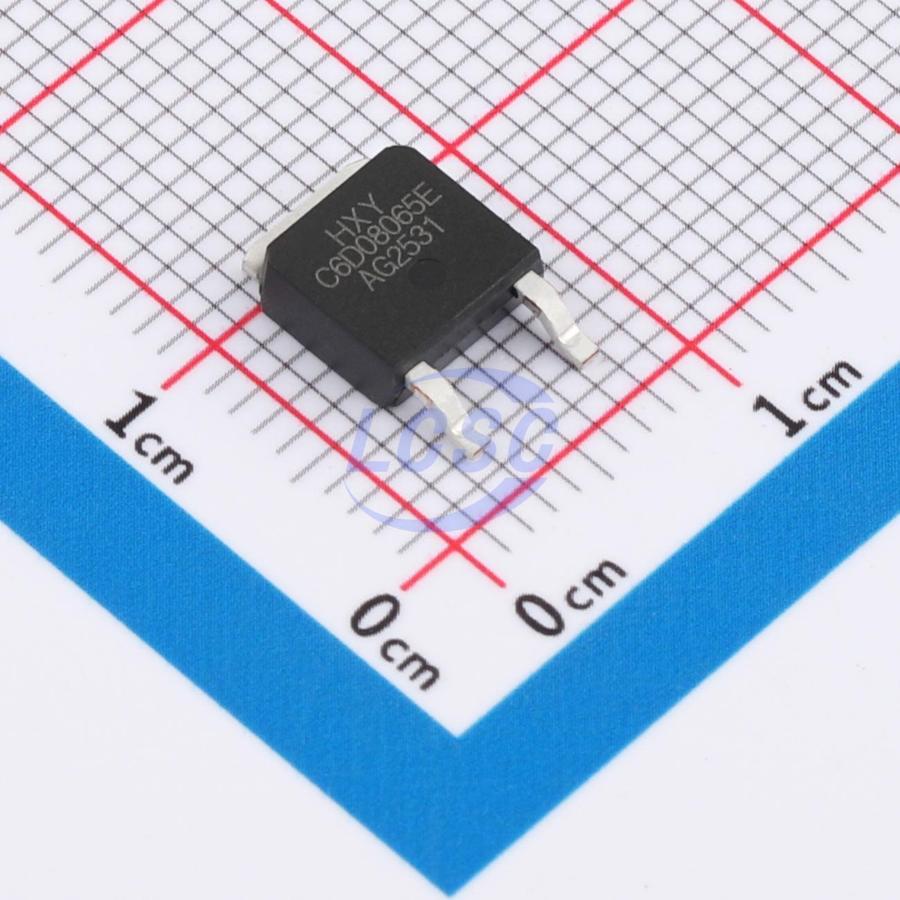

C6D08065E-TR-HXY
1 Independent 650V 1.42V@6A 8A TO-252-2L Single Diodes
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- C6D08065E-TR-HXY
- Store part #
- C51896303
- Package / case
- TO-252-2L
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
34 in stock
#C51896303
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹254.73 | ₹254.73 |
| 10+ | ₹215.75 | ₹2,157.50 |
| 30+ | ₹191.42 | ₹5,742.60 |
| 100+ | ₹166.45 | ₹16,645.00 |
| 500+ | ₹155.25 | ₹77,625.00 |
| 1,000+ | ₹150.31 | ₹1,50,310.00 |
1 × ₹254.73
₹254.73
excl. GST
₹300.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
C6D08065E-TR-HXY
₹254.73 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 650V
- Voltage - Forward(Vf@If)
- 1.42V@6A
- Reverse Leakage Current (Ir)
- 50uA@650V
- Current - Rectified
- 8A
- Non-Repetitive Peak Forward Surge Current
- 60A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.39 g
Overview
Applications
- Switch-mode power supplies
- Power factor correction
- Motor drives
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | S3D08065E-HXY#C51896309HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 38 | ₹136.96 · 38 in stock | View |
 | C3D08065E-TR-HXY#C51896341HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 200 | ₹124.45 · 200 in stock | View |
 | IDM05G120C5XTMA1-HXY#C52194990HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 496 | ₹256.50 · 496 in stock | View |
 | HC1D08065E#C41428786HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 136 | ₹220.35 · 136 in stock | View |
 | C3D02060E-TR-HXY#C53468040HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 96 | ₹109.50 · 96 in stock | View |
