BOURNSDatasheet (PDF)

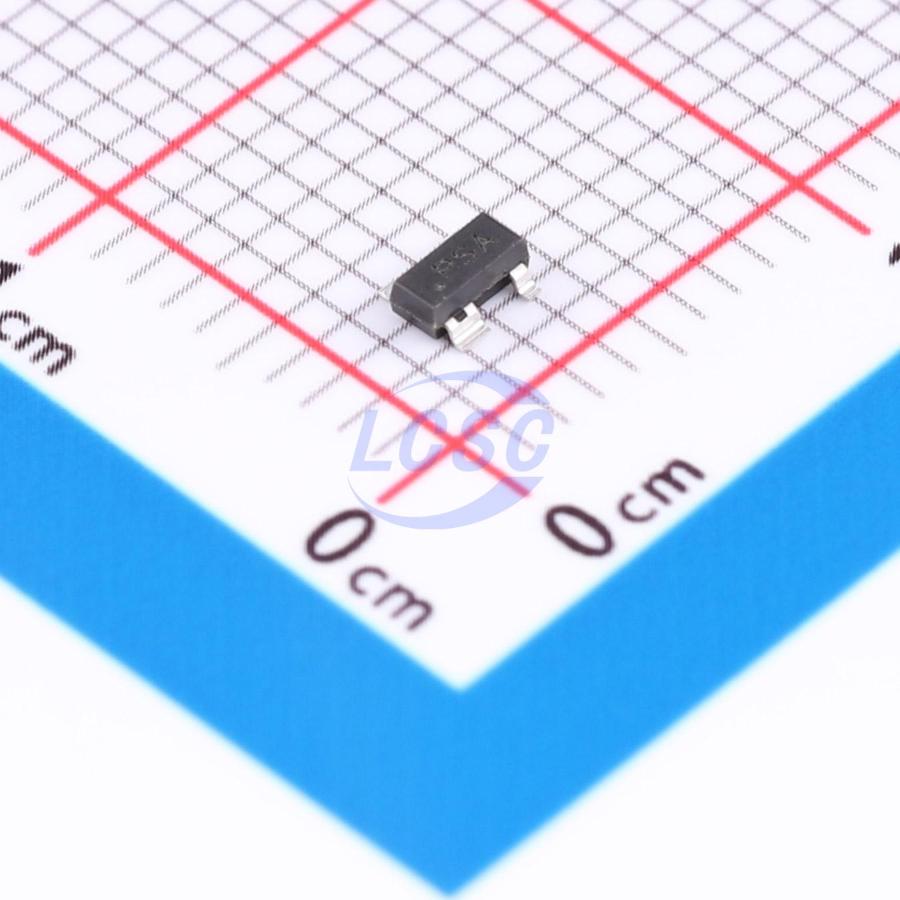

CD143A-SR70
7VC Clamp 24A@8/20us Ipp ESD DIODE SOT-143
SOT-143ROHS3 CompliantActive
ESD DIODE 70VWM 7VC SOT-143
- Manufacturer
- BOURNS
- Manufacturer part #
- CD143A-SR70
- Store part #
- C3713962
- Package / case
- SOT-143
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,129 in stock
#C3713962
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹155.44 | ₹155.44 |
| 10+ | ₹127.33 | ₹1,273.30 |
| 30+ | ₹113.16 | ₹3,394.80 |
| 100+ | ₹99.20 | ₹9,920.00 |
| 500+ | ₹90.92 | ₹45,460.00 |
| 1,000+ | ₹86.55 | ₹86,550.00 |
1 × ₹155.44
₹155.44
excl. GST
₹183.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CD143A-SR70
₹155.44 for 1 + GST
Specifications
- Clamping Voltage
- 7V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 24A@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 85V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 70V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.188 g
Overview
The CD143A-SR70 device provides ESD protection for the external ports of portable electronic devices such as cell phones, handheld electronics and personal computers. The device also provides EFT and surge protection.
Applications
- Cell phones
- Desktops
- Laptops & notebooks
- Portable electronics
Key features
- Lead free as standard
- RoHS compliant
- Halogen free
- ESD protection
- Protects 2 lines
- Low leakage current: <1 μA
- Low capacitance: 3 pF
