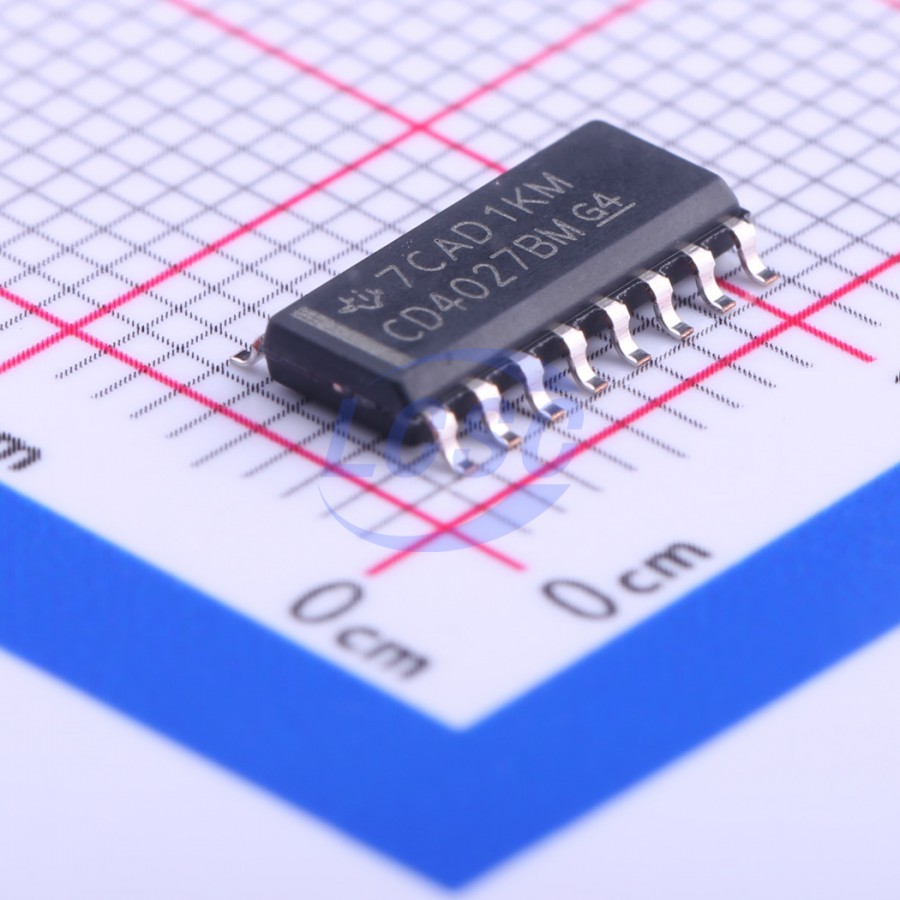

CD4027BM96

CD4027B is a single monolithic chip integrated circuit containing two identical complementary-symmetry J-K master-slave flip-flops. Each flip-flop has provisions for individual J, K, Set, Reset, and Clock input signals. Buffered Q and Q signals are provided as outputs. This input-output arrangement provides for compatible operation with the RCA-CD4027B dual D-type flip-flop. The CD4027B is useful in performing control, register, and toggle functions. Logic levels present at the J and K inputs along with internal self-steering control the state of each flip-flop: changes in the flip-flop state are synchronous with the positive going transition of the clock pulse. Set and reset functions are independent of the clock and are initiated when a high level signal is present at either the Set or Reset input. The CD4027B types are supplied in 16-lead hermetic dual-in-line ceramic packages (F3A suffix), 16-lead dual-in-line plastic packages (E suffix), 16-lead small-outline packages (M, M96, MT, and NSR suffixes), and 16-lead thin shrink small-outline packages (PW and PWR suffixes).

Applications

• Registers
• Counters
• Control circuits

Key features

• Set-Reset capability
• Static flip-flop operation - retains state indefinitely with clock level either 'high' or 'low'
• Medium speed operation - 16 MHz (typ.) clock toggle rate at 10 V
• Standardized symmetrical output characteristics, 100% tested for quiescent current at 20 V
• Maximum input current of 1 μA at 18 V over full package-temperature range; 100 nA at 18 V and 85 ℃
• Noise margin (over full package temperature range): 1 V at VDD = 5 V, 2 V at VDD = 10 V, 2.5 V at VDD = 15 V
• 5-V, 10-V, and 15-V parametric ratings
• Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
