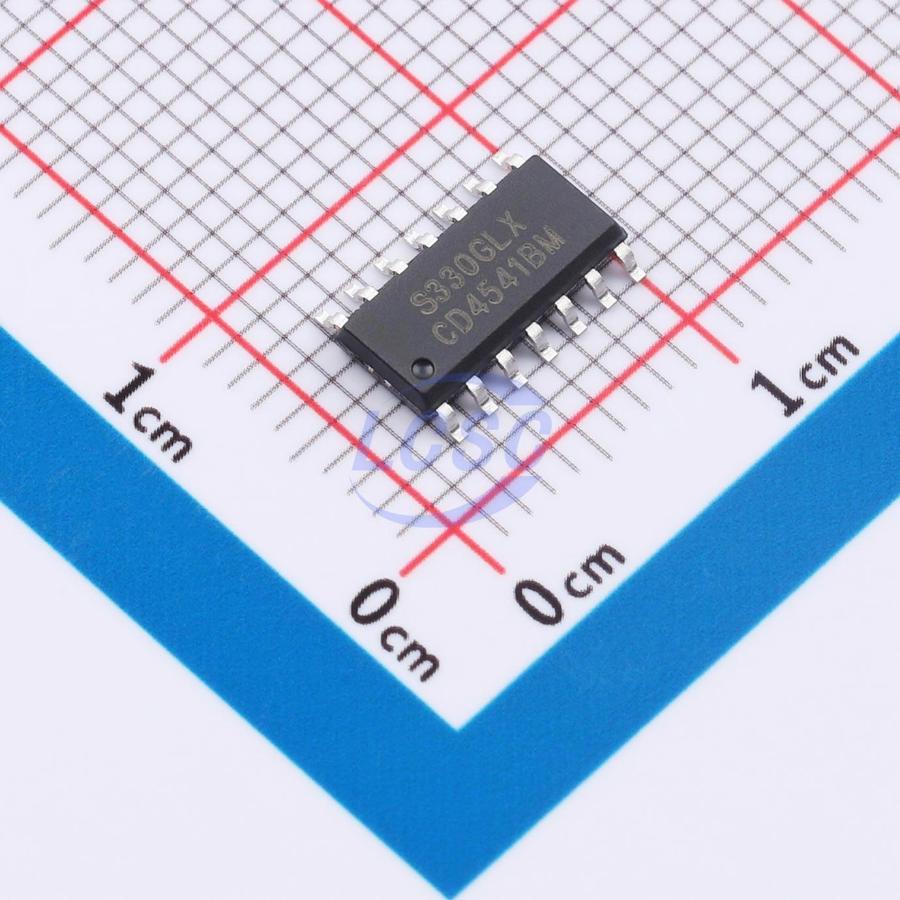

CD4541BDS
Yes 6MHz SOP-14 Programmable Timers and Oscillators
- Manufacturer
- GREENMICRO
- Manufacturer part #
- CD4541BDS
- Store part #
- C51927308
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,760 in stock
#C51927308
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.65 | ₹73.25 |
| 50+ | ₹11.62 | ₹581.00 |
| 150+ | ₹10.11 | ₹1,516.50 |
| 500+ | ₹8.97 | ₹4,485.00 |
| 2,500+ | ₹8.06 | ₹20,150.00 |
| 5,000+ | ₹7.61 | ₹38,050.00 |
5 × ₹14.65
₹73.25
excl. GST
₹86.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4541BDS
₹73.25 for 5 + GST
Specifications
- Quiescent Current
- 0.04uA
- Features
- Programmable time-base frequency division network;Built-in crystal oscillator
- Operating Temperature
- -40℃~+85℃
- Programmable
- Yes
- Frequency
- 6MHz
- Voltage - Supply
- 3V~15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.337 g
Overview
CD4541 is a CMOS programmable timer/divider IC featuring a 16-stage binary counter, an integrated RC oscillator, output control logic, and a power-on reset circuit. It supports oscillator frequency configuration via external resistors and capacitors, with frequency division ratio selection through input pins. The device increments on rising-edge clock triggers and can be cleared via the master reset pin. It is widely used in timing, frequency division, and pulse signal processing applications. Lv Wei chip products are prohibited for use in life-sustaining applications and similar scenarios.
