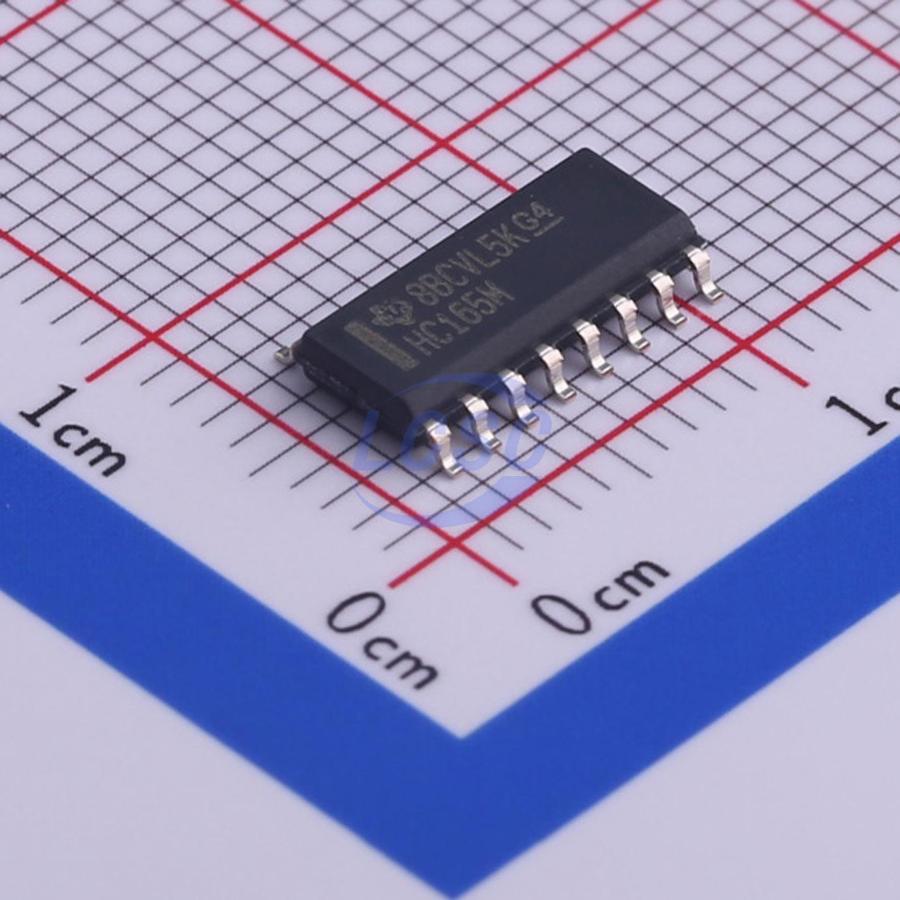

CD74HC165M96
2V~6V 1 5.2mA 26ns@6V,50pF Parallel or Serial to Serial SOIC-16 Shift Registers RoHS
SOIC-16ROHS3 CompliantActive
8-Bit Parallel-In/Serial-Out Shift Register
- Manufacturer
- TI
- Manufacturer part #
- CD74HC165M96
- Store part #
- C470977
- Package / case
- SOIC-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,563 in stock
#C470977
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.39 | ₹69.39 |
| 10+ | ₹57.43 | ₹574.30 |
| 30+ | ₹52.21 | ₹1,566.30 |
| 100+ | ₹45.89 | ₹4,589.00 |
| 500+ | ₹43.08 | ₹21,540.00 |
| 1,000+ | ₹39.16 | ₹39,160.00 |
1 × ₹69.39
₹69.39
excl. GST
₹81.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD74HC165M96
₹69.39 for 1 + GST
Specifications
- Operating temperature
- -55℃~+125℃
- Voltage - Supply
- 2V~6V
- Output Type
- Complementary
- Current - Output High(IOH)
- 5.2mA
- Series
- 74HC
- Current - Output Low(IOL)
- 5.2mA
- Number of Elements
- 1
- Output Current
- 5.2mA
- Features
- Asynchronous parallel load function
- Propagation Delay
- 26ns@6V,50pF
- Function
- Parallel or Serial to Serial
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
High-Speed CMOS Logic 8-Bit Parallel-In/Serial-Out Shift Register
Applications
- Expandable for parallel-to-serial converter applications
Key features
- Buffered Inputs
- Asynchronous Parallel Load
- Complementary Outputs
- Fanout (Over Temperature Range) - Standard Outputs: 10 LSTTL Loads - Bus Driver Outputs: 15 LSTTL Loads
- Wide Operating Temperature Range: -55°C to 125°C
- Balanced Propagation Delay and Transition Times
- Significant Power Reduction Compared to LSTTL Logic ICs
- HC Types - 2V to 6V Operation - High Noise Immunity: NIL = 30%, NIH = 30% of VCC at VCC = 5V
- HCT Types - 4.5V to 5.5V Operation - Direct LSTTL Input Logic Compatibility, VIL = 0.8V (Max), VIH = 2V (Min) - CMOS Input Compatibility, I ≤ 1μA at VOL, VOH
