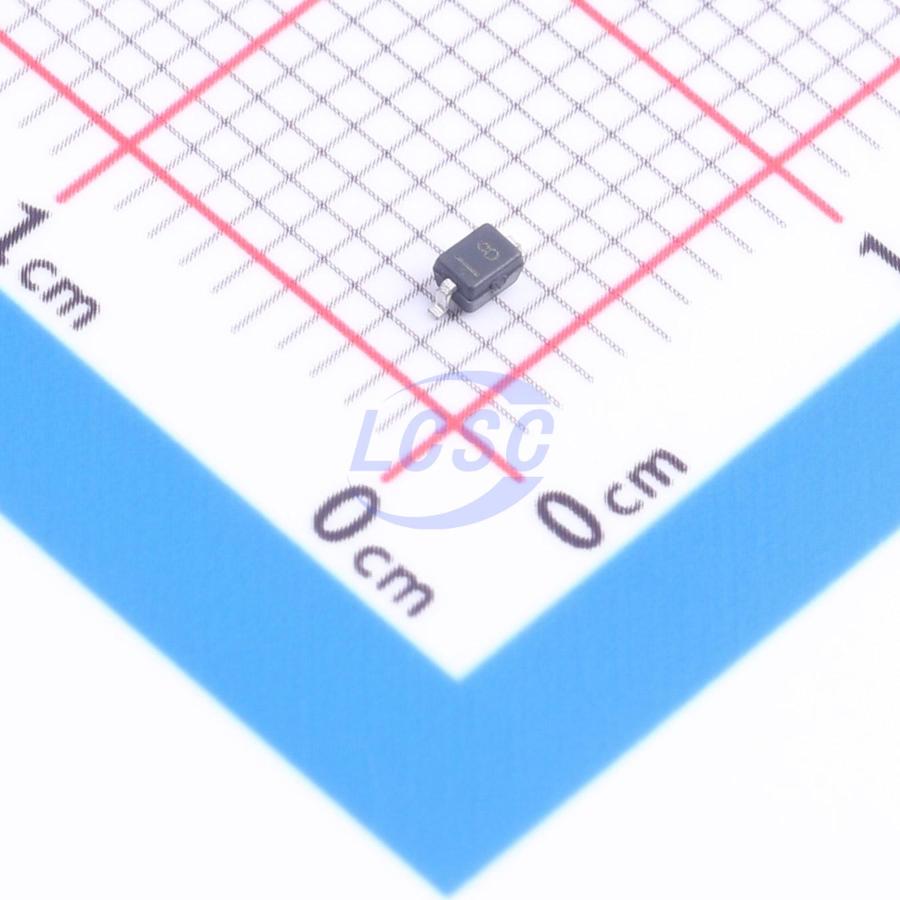

CDSOD323-T08
13.4VC Clamp 17A@8/20us Ipp TVS DIODE SOD-323
- Manufacturer
- BOURNS
- Manufacturer part #
- CDSOD323-T08
- Store part #
- C1848776
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
110 in stock
#C1848776
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹175.39 | ₹175.39 |
| 10+ | ₹151.32 | ₹1,513.20 |
| 30+ | ₹139.29 | ₹4,178.70 |
| 100+ | ₹127.47 | ₹12,747.00 |
| 500+ | ₹120.15 | ₹60,075.00 |
| 1,000+ | ₹116.50 | ₹1,16,500.00 |
1 × ₹175.39
₹175.39
excl. GST
₹206.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CDSOD323-T08
₹175.39 for 1 + GST
Specifications
- Clamping Voltage
- 13.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 17A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 8.5V
- Number of Channels
- 1
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 2uA
- Reverse Stand-Off Voltage (Vrwm)
- 8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.255 g
Overview
Portable communications, computing and video equipment manufacturers are challenging the semiconductor industry to develop increasingly smaller electronic components. Bourns offers Transient Voltage Suppressor Array diodes for surge and ESD protection applications, in SOD323 package size format. The Transient Voltage Supressor Array series offers a choice of voltage types ranging from 3 V to 24 V in a unidirectional or bidirectional configuration. Bourns Chip Diodes conform to JEDEC standards, are easy to handle on standard pick and place equipment and their flat configuration minimizes roll away. The Bourns device will assist compliance with IEC 61000 - 4 - 2 (ESD), IEC 61000 - 4 - 4 (EFT) and IEC61000 - 4 - 5 (Surge) requirements.
Applications
- Cellular phones
- PDAs and notebooks
- Digital cameras
- MP3 players and GPS
- USB interface
Key features
- RoHS compliant
- Protects one line or one I/O port
- Bidirectional configuration
- ESD protection 30 kV max.
- Low capacitance: ~3 pF typical
- Replaces 0805 MLV devices
