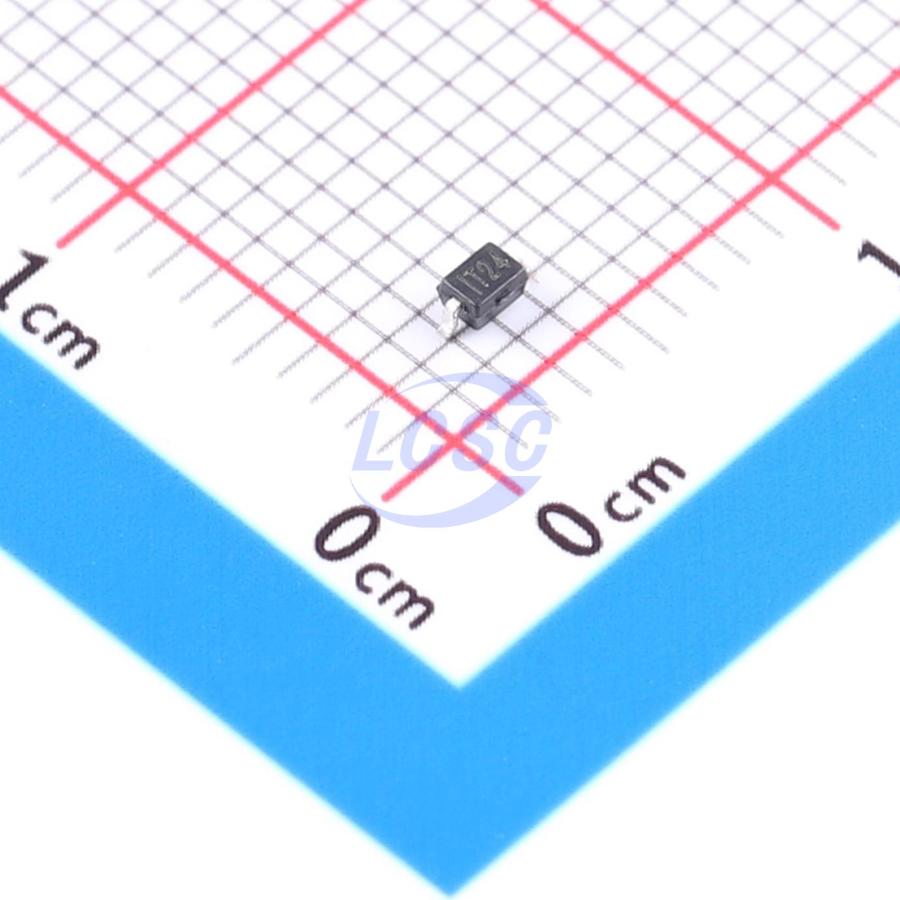

CDSOD323-T24L
56VC Clamp 6A@8/20us Ipp TVS DIODE SOD-323
- Manufacturer
- BOURNS
- Manufacturer part #
- CDSOD323-T24L
- Store part #
- C3700549
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24 in stock
#C3700549
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹142.30 | ₹142.30 |
| 10+ | ₹122.73 | ₹1,227.30 |
| 30+ | ₹113.06 | ₹3,391.80 |
| 100+ | ₹103.39 | ₹10,339.00 |
| 500+ | ₹97.58 | ₹48,790.00 |
| 1,000+ | ₹94.58 | ₹94,580.00 |
1 × ₹142.30
₹142.30
excl. GST
₹167.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CDSOD323-T24L
₹142.30 for 1 + GST
Specifications
- Clamping Voltage
- 56V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 6A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 350W
- Number of Channels
- 1
- Voltage - Breakdown
- 26.7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.028 g
Overview
Bourns offers transient voltage suppressor diodes in SOD323 package for surge and ESD protection applications. This TVS diode series is available in unidirectional or bidirectional configurations with voltage options ranging from 5 V to 24 V. Bourns SMT diodes comply with JEDEC standards for compatibility with standard placement equipment, and their flat profile minimizes rolling. Bourns devices help meet IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT), and IEC 61000-4-5 (Surge) requirements.
Applications
- HDMI 1.4
- Digital Visual Interface (DVI)
- USB 3.0 / USB OTG
- Memory protection
- SIM card ports
Key features
- Lead free as standard
- ESD protection 30 kV max.
- Low capacitance ~ 1.0 pF
- Protects 1 line
- Uni/bidirectional configuration
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ST24VLD322#C49206890SSGSEMI · SOD-323 | SSGSEMI | SOD-323 | 2,960 | ₹12.89 · 2,960 in stock | View |
 | TPE24UK#C53114948TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 3,000 | ₹5.83 · 3,000 in stock | View |
 | GBLC24I#C22435108TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 2,970 | ₹5.82 · 2,970 in stock | View |
 | SP4024-01FTG#C316005Littelfuse · SOD-323 | Littelfuse | SOD-323 | 6,579 | ₹59.11 · 6,579 in stock | View |
 | SP4024-01FTG-C#C316006Littelfuse · SOD-323 | Littelfuse | SOD-323 | 915 | ₹30.03 · 915 in stock | View |
