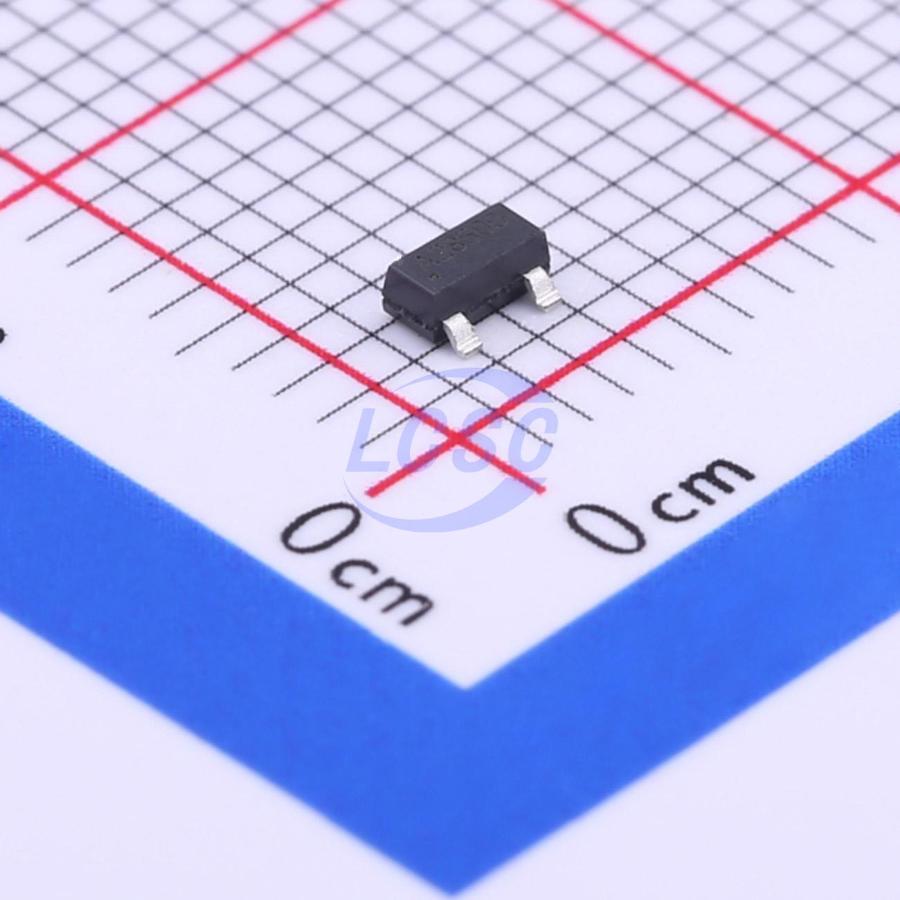

CDSOT23-SM712
26VC 14VC Clamp ESD DIODE SOT-23
ESD DIODE 12VWM 7VWM 26VC 14VC SOT-23
- Manufacturer
- BOURNS
- Manufacturer part #
- CDSOT23-SM712
- Store part #
- C404012
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,922 in stock
#C404012
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.24 | ₹68.24 |
| 10+ | ₹53.46 | ₹534.60 |
| 30+ | ₹46.29 | ₹1,388.70 |
| 100+ | ₹39.77 | ₹3,977.00 |
| 500+ | ₹38.04 | ₹19,020.00 |
| 1,000+ | ₹35.64 | ₹35,640.00 |
1 × ₹68.24
₹68.24
excl. GST
₹80.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CDSOT23-SM712
₹68.24 for 1 + GST
Specifications
- Clamping Voltage
- 26V;14V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 2
- Voltage - Breakdown
- 13.3V;7.5V
- type
- ESD
- Reverse Leakage Current (Ir)
- 20uA;1uA
- Reverse Stand-Off Voltage (Vrwm)
- 12V;7V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.065 g
Overview
The CDSOT23-SM712 device provides ESD, EFT and Surge protection for data ports meeting IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT) and IEC 61000-4-5 (Surge) requirements. The Transient Voltage Suppressor Array offers two TVS diodes with a Working Peak Reverse Voltage of 7 V or 12 V and Minimum Breakdown Voltage of 7.5 V or 13.3 V respectively. The SOT23 packaged device will mount directly onto the industry standard SOT23 footprint. Chip Diodes conform to JEDEC standards, are easy to handle with standard pick and place equipment and the flat configuration minimizes roll away.
Applications
- Wireless systems
- Network protection
- Portable electronics
- RS-485 port protection
Key features
- RoHS compliant
- Working peak voltage 7 V or 12 V
- ESD protection 30 kV max.
- Surge protection
