VBsemi ElecDatasheet (PDF)

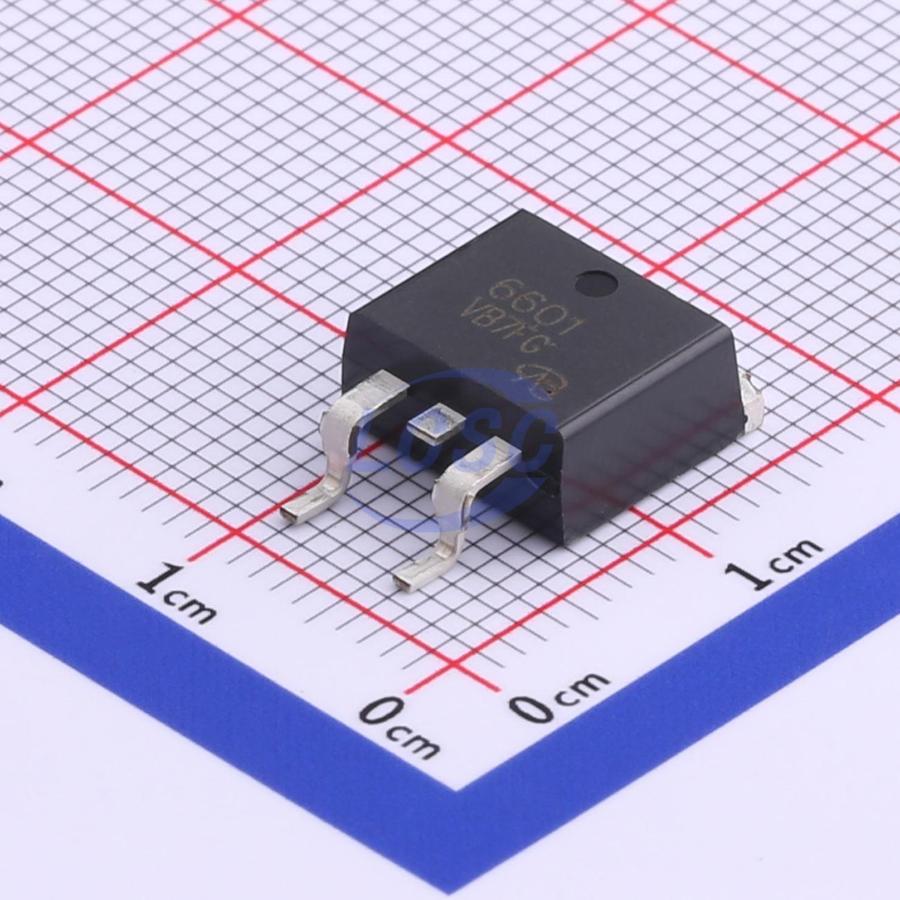

CEB6601-VB
P-Channel 60V 35A Surface Mount TO-263(D2Pak)
TO-263(D2PAK)RoHSActive
MOSFET P-CH 60V 35A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- CEB6601-VB
- Store part #
- C879039
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
44 in stock
#C879039
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹126.04 | ₹126.04 |
| 10+ | ₹102.36 | ₹1,023.60 |
| 50+ | ₹90.63 | ₹4,531.50 |
| 100+ | ₹78.89 | ₹7,889.00 |
| 500+ | ₹71.88 | ₹35,940.00 |
| 1,000+ | ₹68.39 | ₹68,390.00 |
1 × ₹126.04
₹126.04
excl. GST
₹148.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
CEB6601-VB
₹126.04 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+100℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 200pF
- Current - Continuous Drain(Id)
- 35A
- Ciss-Input Capacitance
- 1.65nF
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 48mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 67nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.06 g
Overview
Applications
- Power switch
- Load switch for high-current applications
- DC/DC converter
Key features
- Halogen-free product as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant with directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF5305STR-VB#C878890VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 1 | ₹184.17 · 1 in stock | View |
 | IRF9Z34NS-VB#C879120VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 53 | ₹156.31 · 53 in stock | View |
 | F9Z24NS-VB#C20417751VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 7 | ₹123.52 · 7 in stock | View |
 | 2SJ257-VB#C41369944VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 20 | ₹123.52 · 20 in stock | View |
 | IRF9Z24NSPBF-VB#C18212476VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 13 | ₹150.81 · 13 in stock | View |
