VBsemi ElecDatasheet (PDF)

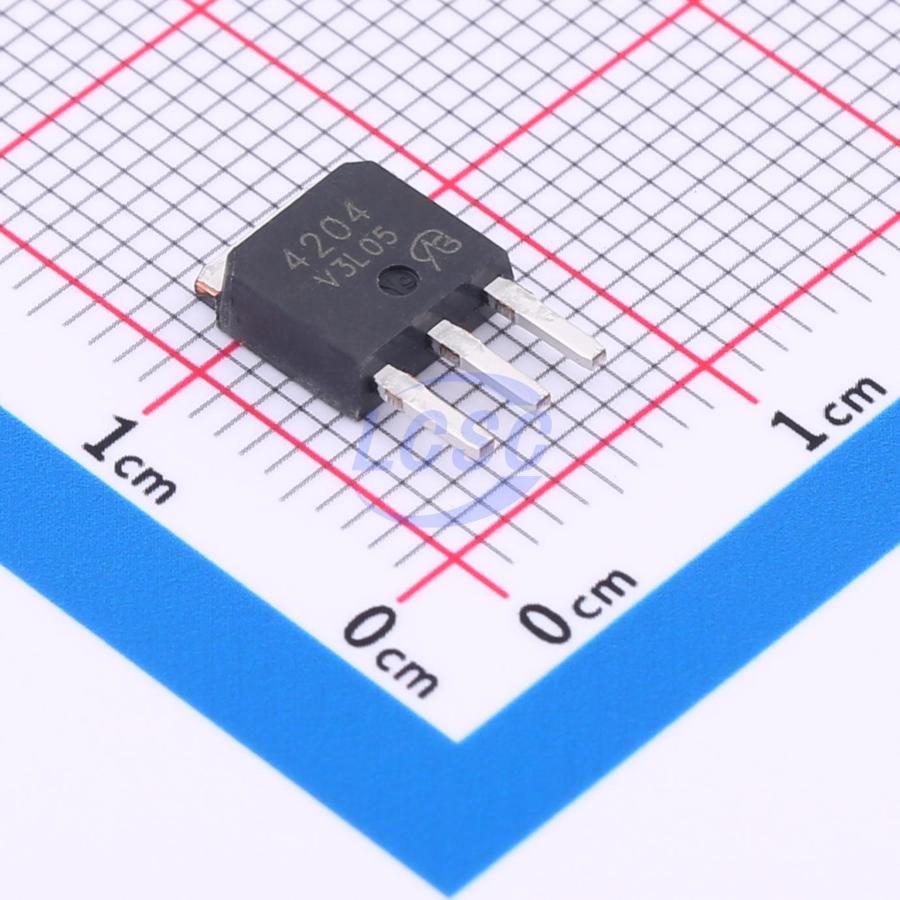

CED4204-VB
N-Channel 40V 55A 55.5W Through Hole TO-251
TO-251RoHSActive
MOSFET N-CH 40V 55A TO-251
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- CED4204-VB
- Store part #
- C19711198
- Package / case
- TO-251
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C19711198
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.82 | ₹57.82 |
| 10+ | ₹45.91 | ₹459.10 |
| 30+ | ₹40.81 | ₹1,224.30 |
| 80+ | ₹34.44 | ₹2,755.20 |
| 480+ | ₹31.46 | ₹15,100.80 |
| 960+ | ₹29.97 | ₹28,771.20 |
1 × ₹57.82
₹57.82
excl. GST
₹68.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 80 per tube
CED4204-VB
₹57.82 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 460pF
- Current - Continuous Drain(Id)
- 55A
- Ciss-Input Capacitance
- 1.1nF
- Pd - Power Dissipation
- 55.5W
- Reverse Transfer Capacitance (Crss)
- 350pF
- RDS(on)
- 13mΩ@10V;14mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 36nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 80 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.34 g
Overview
Applications
- Power Supply
- Secondary Synchronous Rectification
- DC/DC Converter
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- VBmos trench cell
- 100% Rg and UIS tested
- Compliant with RoHS Directive 2002/95/EC
