MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
VBsemi ElecDatasheet (PDF)

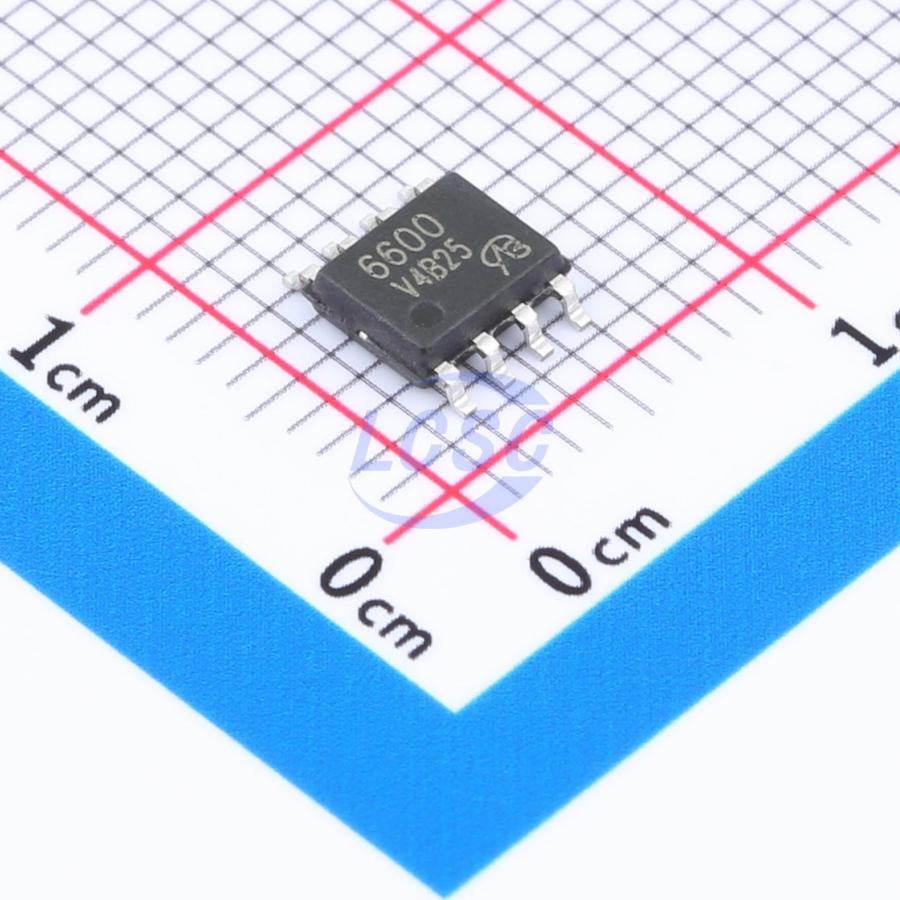

CEM6600-VB
N-Channel 60V 7.6A 11.2W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH 60V 7.6A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- CEM6600-VB
- Store part #
- C20754949
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C20754949
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.19 | ₹58.19 |
| 10+ | ₹45.80 | ₹458.00 |
| 30+ | ₹40.34 | ₹1,210.20 |
| 100+ | ₹33.83 | ₹3,383.00 |
| 500+ | ₹30.68 | ₹15,340.00 |
| 1,000+ | ₹29.00 | ₹29,000.00 |
1 × ₹58.19
₹58.19
excl. GST
₹68.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CEM6600-VB
₹58.19 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 7.6A
- Ciss-Input Capacitance
- 1.1nF
- Pd - Power Dissipation
- 11.2W
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 25mΩ@10V;35mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 21nC@10V;10.5nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Overview
Applications
- Cold Cathode Fluorescent Lamp (CCFL) inverter
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- Optimized for "low-side" synchronous rectifier operation
- 100% Rg and UIS tested
- Available in RoHS-compliant, halogen-free package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI4450DY-T1-E3-VB#C20417509VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹64.11 · 10 in stock | View |
 | AM4402N-T1-PF-VB#C22389675VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹58.19 · 20 in stock | View |
 | IRF7478TRPBF-VB#C5878808VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 161 | ₹57.06 · 161 in stock | View |
 | RSH065N06TB-VB#C878936VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 205 | ₹65.75 · 205 in stock | View |
 | CEM6186-VB#C19190262VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 7 | ₹61.43 · 7 in stock | View |
