VBsemi ElecDatasheet (PDF)

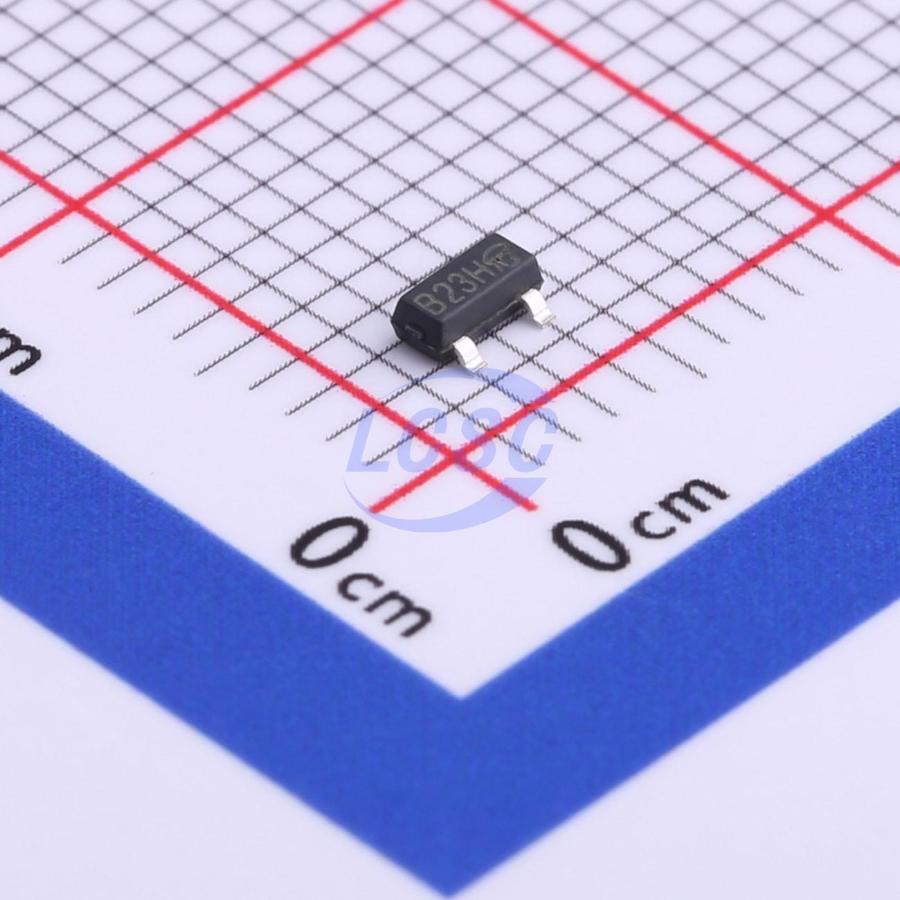

CES2307-VB
P-Channel 30V 5.6A 2.5W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET P-CH 30V 5.6A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- CES2307-VB
- Store part #
- C693422
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C693422
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.19 | ₹65.95 |
| 50+ | ₹10.50 | ₹525.00 |
| 150+ | ₹9.16 | ₹1,374.00 |
| 500+ | ₹8.15 | ₹4,075.00 |
| 3,000+ | ₹7.34 | ₹22,020.00 |
| 6,000+ | ₹6.93 | ₹41,580.00 |
5 × ₹13.19
₹65.95
excl. GST
₹77.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CES2307-VB
₹65.95 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 5.6A
- Ciss-Input Capacitance
- 1.295nF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 130pF
- RDS(on)
- 46mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 24nC@10V
- Gate Threshold Voltage (Vgs(th))
- 500mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.054 g
Overview
Applications
- Mobile computing
- Load switch
- Notebook adapter switch
- DC/DC converter
Key features
- Trench power MOSFET
- 100% gate resistance (Rg) tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SPP3401S23RG-VB#C19190171VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 245 | ₹13.40 · 245 in stock | View |
 | DMP3160L-VB#C22389251VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 100 | ₹13.24 · 100 in stock | View |
 | G2309-VB#C693385VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 460 | ₹13.01 · 460 in stock | View |
 | NVTR4502PT1G-VB#C7429095VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 30 | ₹14.24 · 30 in stock | View |
 | DMP31D0U-7-VB#C7525010VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 75 | ₹13.02 · 75 in stock | View |
