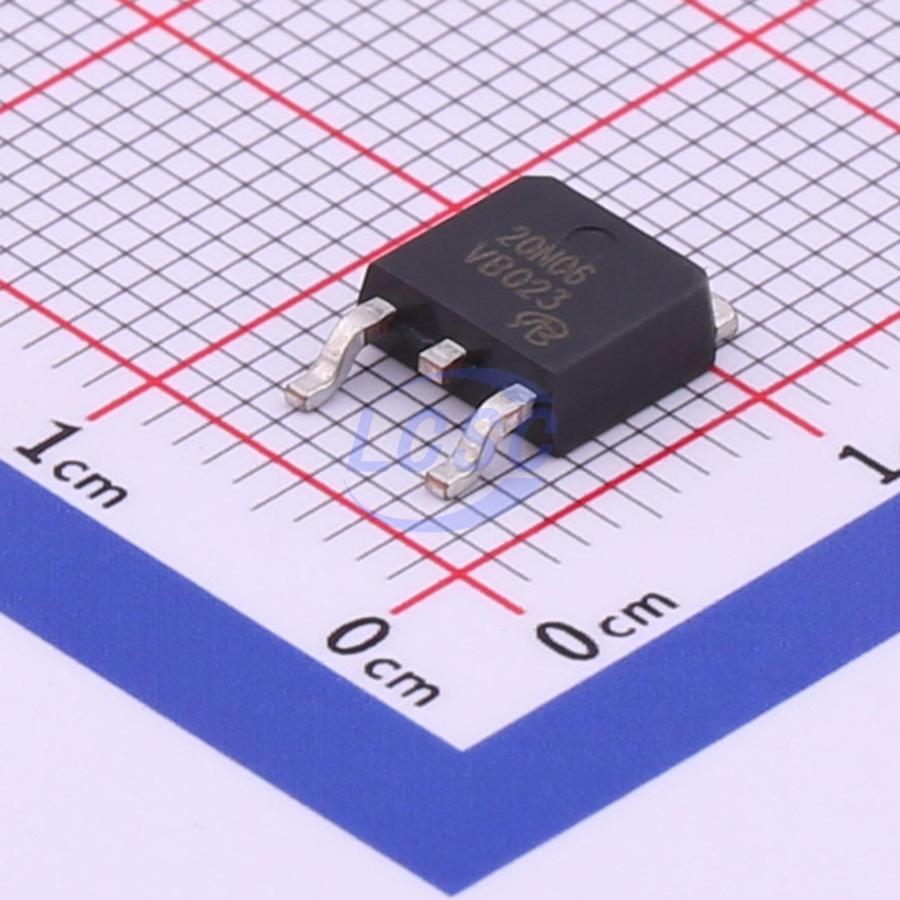

CEU20N06-VB
N-Channel 60V 45A 100W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 60V 45A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- CEU20N06-VB
- Store part #
- C709934
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
55 in stock
#C709934
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.58 | ₹70.58 |
| 10+ | ₹56.51 | ₹565.10 |
| 30+ | ₹50.42 | ₹1,512.60 |
| 100+ | ₹42.85 | ₹4,285.00 |
| 500+ | ₹34.87 | ₹17,435.00 |
| 1,000+ | ₹32.98 | ₹32,980.00 |
1 × ₹70.58
₹70.58
excl. GST
₹83.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CEU20N06-VB
₹70.58 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 140pF
- Current - Continuous Drain(Id)
- 45A
- Ciss-Input Capacitance
- 1.5nF
- Pd - Power Dissipation
- 100W
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 25mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.391 g
Overview
Key features
- Trench power MOSFET
- Junction temperature up to 175°C
- RoHS compliant
- Drain connected to heatsink
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 40N06 TO252-VB#C18212534VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹69.07 · 20 in stock | View |
 | 2SK3385-Z-E1-AZ-VB#C18212596VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 2 | ₹67.01 · 2 in stock | View |
 | LR3105-VB#C18212616VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹69.07 · 50 in stock | View |
 | 24N6LG TO252-VB#C18794978VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹74.67 · 20 in stock | View |
 | STD16NF06T4-VB#C18794985VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 30 | ₹69.07 · 30 in stock | View |
