WCHDatasheet (PDF)

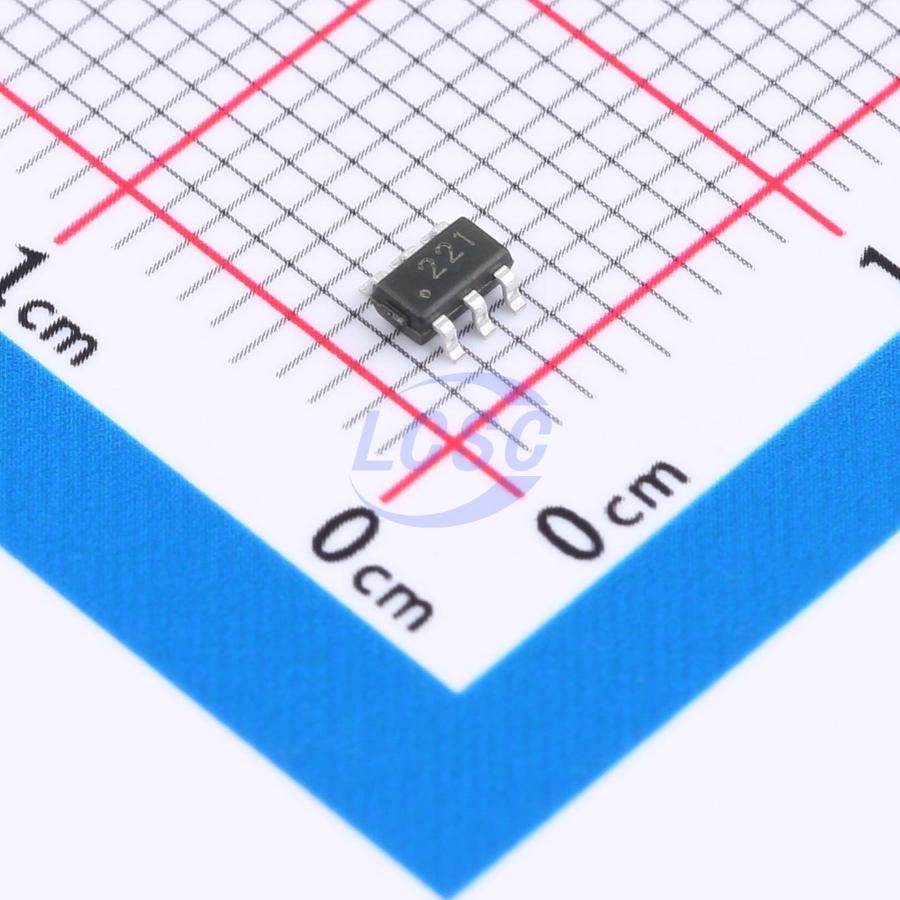

CH221K
Power Receiver Controller 100W SOT-23-6 Power Management - Specialized RoHS
SOT-23-6ROHS CompliantActive
- Manufacturer
- WCH
- Manufacturer part #
- CH221K
- Store part #
- C5125736
- Package / case
- SOT-23-6
- Category
- Power Management - Specialized
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28,005 in stock
#C5125736
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.98 | ₹219.90 |
| 50+ | ₹35.22 | ₹1,761.00 |
| 150+ | ₹31.47 | ₹4,720.50 |
| 500+ | ₹26.79 | ₹13,395.00 |
| 3,000+ | ₹24.70 | ₹74,100.00 |
| 6,000+ | ₹23.46 | ₹1,40,760.00 |
5 × ₹43.98
₹219.90
excl. GST
₹259.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CH221K
₹219.90 for 5 + GST
Specifications
- Type
- Power Receiver Controller
- Features
- Overvoltage protection
- Protocol
- PD 3.0
- Operating Temperature
- -40℃~+105℃
- Output Power
- 100W
- Output Voltage
- 5V;9V;12V;15V;20V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
CH224Q and CH224A are fast charging sink chips supporting USB PD3.2, with a maximum supported power of PD3.2 EPR 140W. They support configuration via single resistor, I/O level, or I²C. Through the I²C interface, users can read the protocol handshake status and rated current of the current PD profile. The chips feature a built-in high-voltage LDO, low quiescent current consumption, high integration, and a simplified peripheral circuit. Output voltage detection and overvoltage protection are integrated on-chip.
Applications
- Wireless chargers
- Small appliances
- Lithium battery power tools
- Mobile devices
Key features
- 4V to 30V input voltage range
- Supports PD3.2 EPR, AVS, PPS, SPR, and BC1.2 fast charging protocols
- eMarker emulation with automatic VCONN detection
- Multiple methods for dynamic voltage request adjustment
- I²C communication at 400 KHz
- Integrated high-voltage LDO, low quiescent current consumption
- High integration single-chip design with simplified peripheral circuitry and low cost
- Built-in overvoltage protection module
