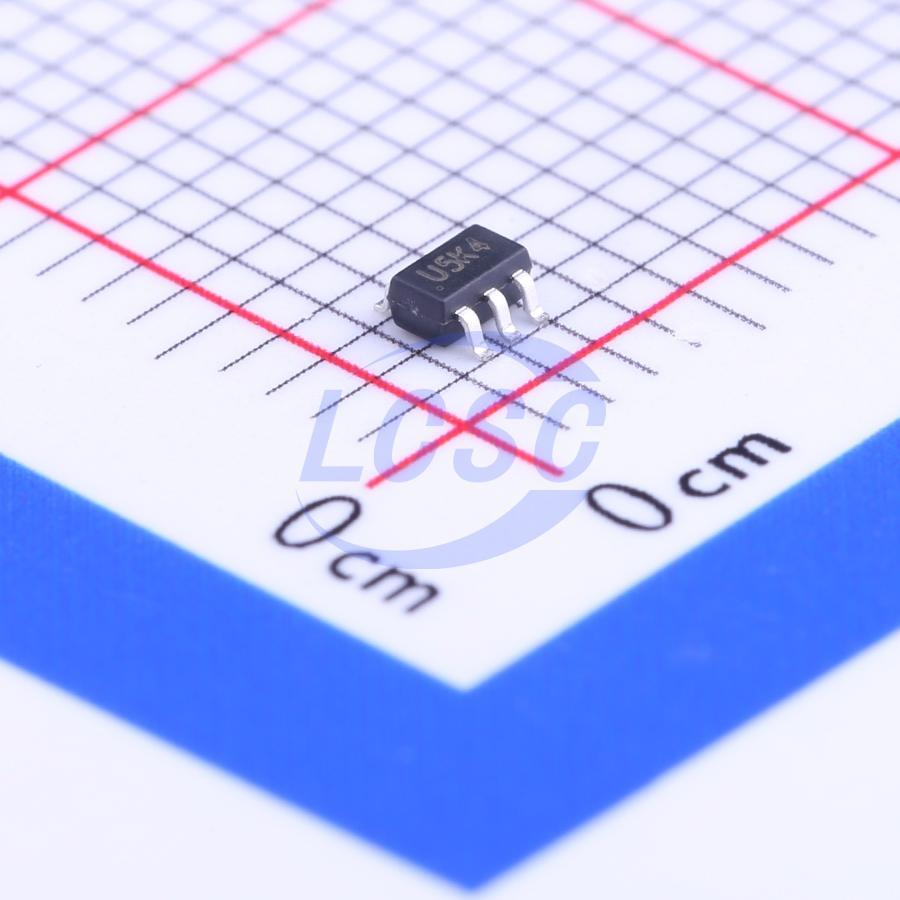

CH412K

CH412 is a quad-channel ESD protection diode array capable of withstanding ESD pulses up to ±15KV Human Body Model, ±8KV contact discharge, and ±15KV air-gap discharge as specified by IEC 61000-4-2. It is designed for ESD protection of high-speed signals, differential signals, and general-purpose signals on external interfaces of electronic products. CH412K provides 4-channel low-capacitance diode protection with TVS clamping, suitable for high-speed and medium-to-low-speed signals. It can be used for USB SuperSpeed, High-Speed, Full-Speed, and Low-Speed signal protection. CH412Z provides 4-channel TVS clamping, suitable for medium-to-low-speed signals. It can be used for USB Full-Speed and Low-Speed signal protection.

Applications

• CH412K for ESD protection of USB high-speed signals
• CH412Z for ESD protection of mid-to-low frequency general signals, as well as full-speed or low-speed USB signals

Key features

• ±15KV HBM support
• ±8KV contact discharge support
• ±15KV air-gap discharge support
• CH412K: 4-channel internal independent clamp diodes, 1pF typical low input capacitance, suitable for high-speed and medium/low-speed signals
• CH412Z: 4-channel internal TVS clamp protection, 20pF typical input capacitance, suitable for medium/low-speed signals
• SOT compact transistor-level SMD lead-free package, RoHS compliant
