JSCJDatasheet (PDF)

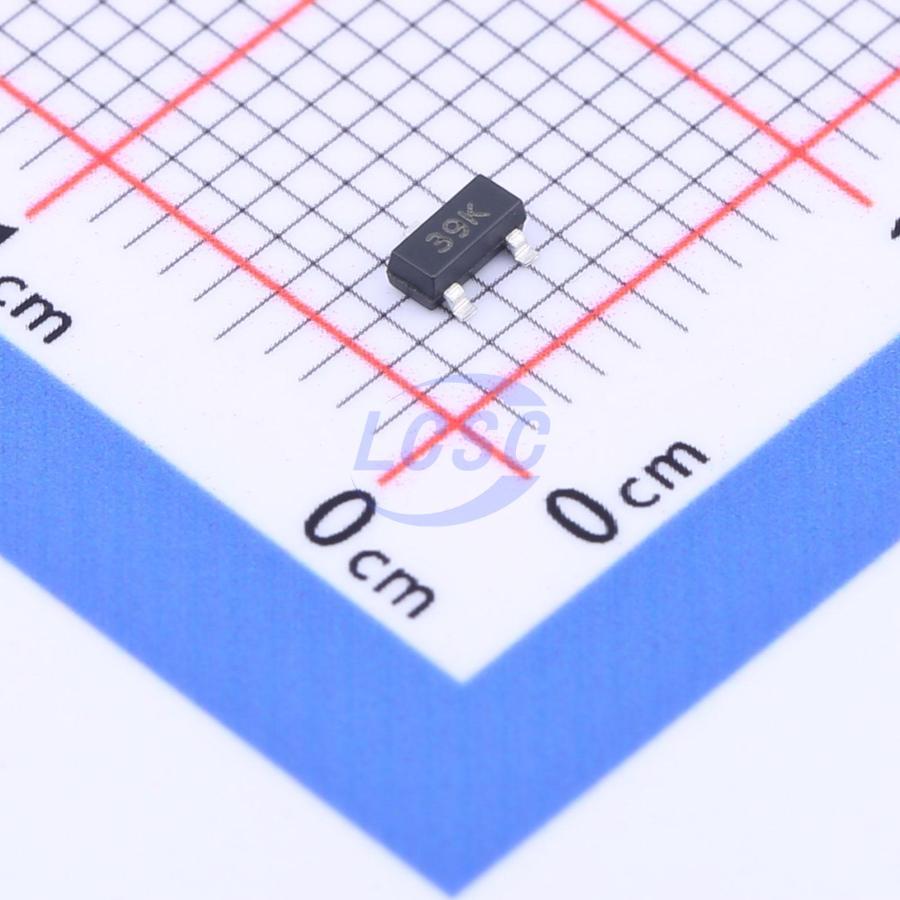

CJ3139K
P-Channel 20V 0.66A 350mW Surface Mount SOT-23
SOT-23ROHS CompliantActive
MOSFET P-CH 20V 0.66A SOT-23
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ3139K
- Store part #
- C2890149
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,660 in stock
#C2890149
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.58 | ₹91.60 |
| 200+ | ₹3.65 | ₹730.00 |
| 600+ | ₹3.14 | ₹1,884.00 |
| 3,000+ | ₹2.83 | ₹8,490.00 |
| 9,000+ | ₹2.57 | ₹23,130.00 |
| 21,000+ | ₹2.42 | ₹50,820.00 |
20 × ₹4.58
₹91.60
excl. GST
₹108.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJ3139K
₹91.60 for 20 + GST
Specifications
- Output Capacitance(Coss)
- 25pF
- Ciss-Input Capacitance
- 170pF
- Pd - Power Dissipation
- 350mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 660mA
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 700mΩ@2.5V
- Number
- 1 P-Channel
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.032 g
Overview
Applications
- Load/Power Switching
- Interfacing, Logic Switching
- Battery Management for Ultra Small Portable Electronics
Key features
- Lead Free Product
- Acquired Surface Mount Package
- P-Channel Switch with Low RDS(on)
- Operated at Low Logic Level Gate Drive
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJ3139K#C70022JSCJ · SOT-723 | JSCJ | SOT-723 | 44,440 | ₹4.63 · 44,440 in stock | View |
 | CJ2303#C68491JSCJ · SOT-23 | JSCJ | SOT-23 | 14,680 | ₹5.42 · 14,680 in stock | View |
 | CJ2301 S1#C8547JSCJ · SOT-23 | JSCJ | SOT-23 | 3,28,340 | ₹4.15 · 3,28,340 in stock | View |
 | CJ2321A#C19269081JSCJ · SOT-23 | JSCJ | SOT-23 | 70 | ₹9.31 · 70 in stock | View |
 | CJ2321#C77898JSCJ · SOT-23 | JSCJ | SOT-23 | 3,770 | ₹7.67 · 3,770 in stock | View |
