JSCJDatasheet (PDF)

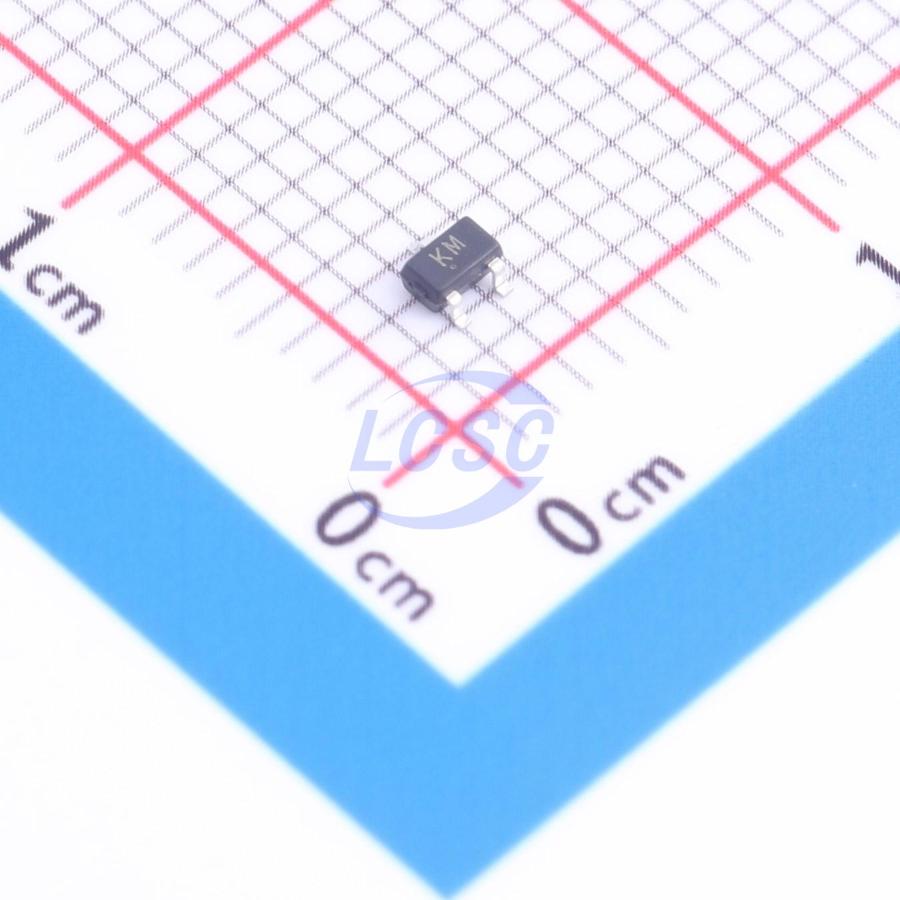

CJ3144KW
N-Channel 30V 600mA 200mW Surface Mount SOT-323
SOT-323ROHS CompliantActive
MOSFET N-CH 30V 600mA SOT-323
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ3144KW
- Store part #
- C504055
- Package / case
- SOT-323
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,900 in stock
#C504055
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.82 | ₹78.20 |
| 100+ | ₹6.18 | ₹618.00 |
| 300+ | ₹5.36 | ₹1,608.00 |
| 3,000+ | ₹4.75 | ₹14,250.00 |
| 6,000+ | ₹4.26 | ₹25,560.00 |
| 9,000+ | ₹4.01 | ₹36,090.00 |
10 × ₹7.82
₹78.20
excl. GST
₹92.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJ3144KW
₹78.20 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 15pF
- Current - Continuous Drain(Id)
- 600mA
- Ciss-Input Capacitance
- 44pF
- Pd - Power Dissipation
- 200mW
- Reverse Transfer Capacitance (Crss)
- 8pF
- RDS(on)
- 500mΩ@4V;600mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 1.2nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
The NCEP1520AK utilizes Super Trench Technology, uniquely optimized to deliver the highest efficiency high-frequency switching performance. With extremely low drain-to-source on-resistance (RDS(ON)) and gate charge (Qg), both conduction and switching power losses are minimized. This device is ideally suited for high-frequency switching and synchronous rectification applications.
Applications
- Load/Power Switch
- Interface Switch
- Battery Management for Ultra-Compact Portable Electronics
- Logic Level Translation
Key features
- Surface mount package
- N-channel switch with low R<sub>DS(ON)</sub>
- Low logic-level gate drive operation
