TECH PUBLICDatasheet (PDF)

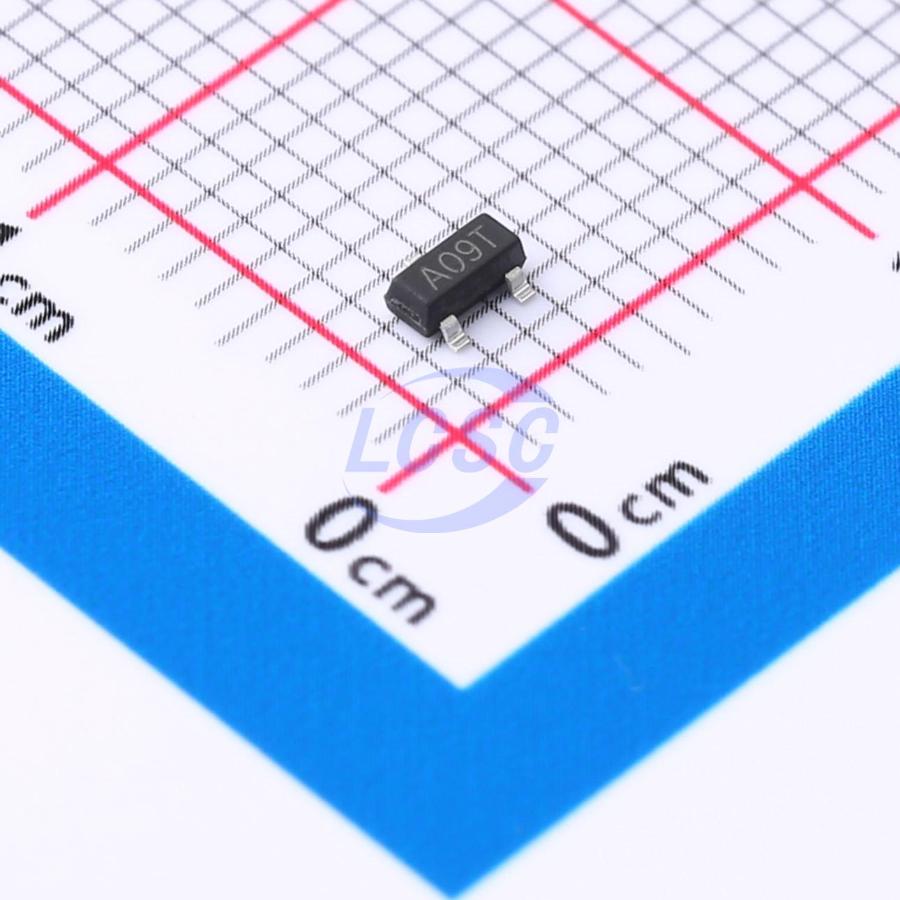

CJ3400S3
30V 5.8A 1.4W Surface Mount SOT-23-3
SOT-23-3RoHSActive
MOSFET 30V 5.8A SOT-23-3
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- CJ3400S3
- Store part #
- C5310946
- Package / case
- SOT-23-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
730 in stock
#C5310946
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.66 | ₹56.60 |
| 100+ | ₹4.51 | ₹451.00 |
| 300+ | ₹3.94 | ₹1,182.00 |
| 3,000+ | ₹3.29 | ₹9,870.00 |
| 6,000+ | ₹2.95 | ₹17,700.00 |
| 12,000+ | ₹2.78 | ₹33,360.00 |
10 × ₹5.66
₹56.60
excl. GST
₹66.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJ3400S3
₹56.60 for 10 + GST
Specifications
- Output Capacitance(Coss)
- 99pF
- Ciss-Input Capacitance
- 820pF
- Pd - Power Dissipation
- 1.4W
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 5.8A
- Reverse Transfer Capacitance (Crss)
- 77pF
- RDS(on)
- 59mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9.5nC@15V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 700mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
Applications
- Load/Power Switching
- Interfacing Switching
- Battery Management for Ultra Small Portable
- Logic Level Shift
Key features
- VDS = 30V, ID = 5.8A
- RDS(ON) < 59mΩ @ VGS = 2.5V
- RDS(ON) < 45mΩ @ VGS = 4.5V
- RDS(ON) < 41mΩ @ VGS = 10V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM3400AS3#C5310943TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,590 | ₹7.65 · 2,590 in stock | View |
 | BLM3400S3#C5310944TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 19,320 | ₹4.50 · 19,320 in stock | View |
 | AO3400A#C5122000TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 5,860 | ₹5.64 · 5,860 in stock | View |
 | AO3480#C7603354TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,090 | ₹5.79 · 3,090 in stock | View |
 | AO3400#C2890121TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 2,030 | ₹7.46 · 2,030 in stock | View |
