JSCJDatasheet (PDF)

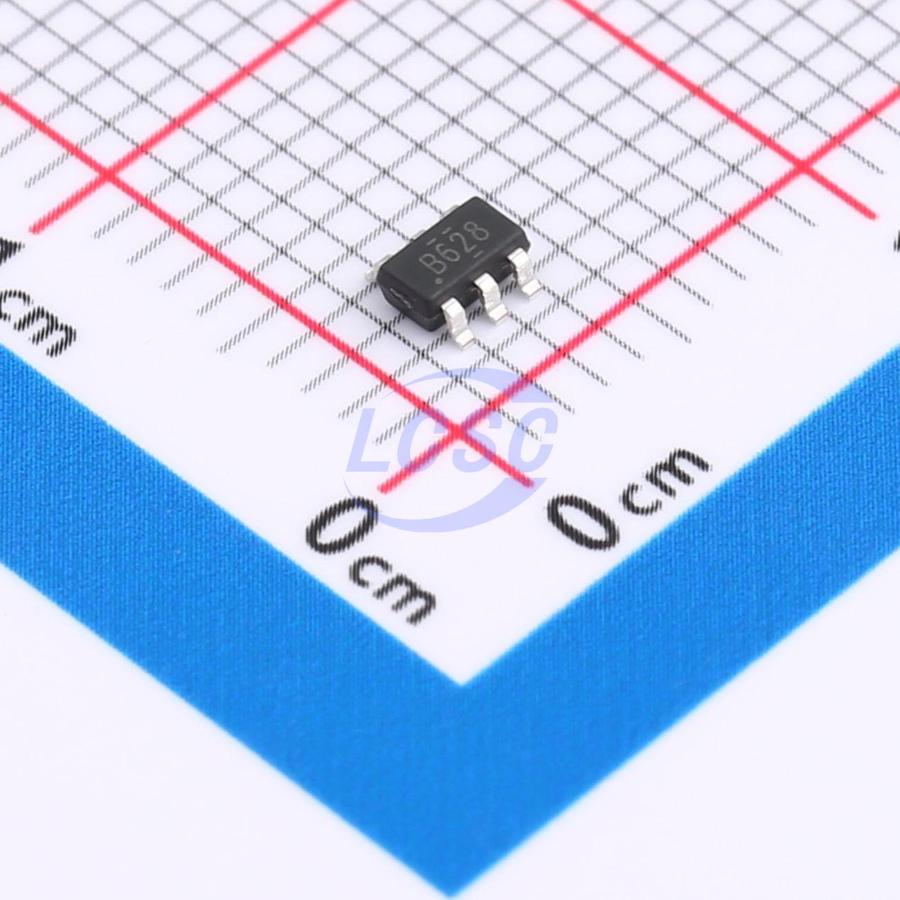

CJ9340T6
1.2MHz Boost Adjustable 600mV~28V SOT-23-6L Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6LROHS CompliantActive
High Efficiency 1.2MHz 28V Output Step-Up Regulators
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ9340T6
- Store part #
- C2829453
- Package / case
- SOT-23-6L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,425 in stock
#C2829453
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.61 | ₹188.05 |
| 50+ | ₹30.39 | ₹1,519.50 |
| 150+ | ₹27.29 | ₹4,093.50 |
| 500+ | ₹23.43 | ₹11,715.00 |
| 3,000+ | ₹21.71 | ₹65,130.00 |
| 6,000+ | ₹20.67 | ₹1,24,020.00 |
5 × ₹37.61
₹188.05
excl. GST
₹221.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJ9340T6
₹188.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 1.2MHz
- Number of Outputs
- 1
- Function
- Boost
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2V~24V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~28V
- Quiescent Current
- 50uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.049 g
Overview
CJ9340T6 is a constant-frequency, current-mode boost converter designed for small, low-power applications. The device switches at 1.2MHz, allowing the use of miniature, low-cost capacitors and inductors with heights of 2mm or less. Internal soft-start reduces inrush current and extends battery life. The device incorporates undervoltage lockout, current limiting, and thermal overload protection to prevent damage during output overload conditions. The CJ9340T6 is available in a compact 6-pin SOT-23 package.
Applications
- Digital set-top boxes
- Tablet PCs
- LCD bias power supplies
- Battery-powered devices
- Portable media players
Key features
- 2V to 24V input voltage
- Up to 28V output voltage
- Integrated 80mΩ power MOSFET
- 1.2MHz fixed switching frequency
- Internal 4A switch current limit
- Internal compensation
- Thermal shutdown
- Output voltage adjustable from 0.6V
- 6-pin SOT-23 package
