JSCJDatasheet (PDF)

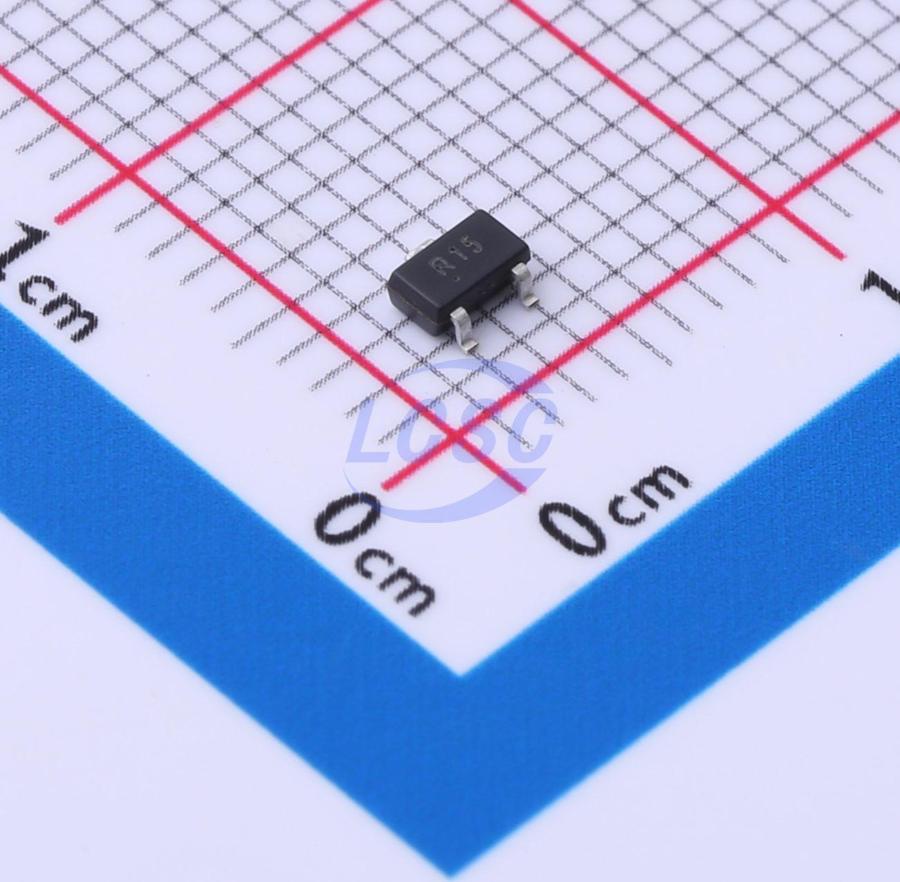

CJK3415
P-Channel 20V 4A 0.3W Surface Mount SOT-23-3L
SOT-23-3LROHS CompliantActive
MOSFET P-CH 20V 4A SOT-23-3L
- Manufacturer
- JSCJ
- Manufacturer part #
- CJK3415
- Store part #
- C504113
- Package / case
- SOT-23-3L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,130 in stock
#C504113
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.44 | ₹62.20 |
| 50+ | ₹9.91 | ₹495.50 |
| 150+ | ₹8.65 | ₹1,297.50 |
| 500+ | ₹7.70 | ₹3,850.00 |
| 3,000+ | ₹6.95 | ₹20,850.00 |
| 6,000+ | ₹6.56 | ₹39,360.00 |
5 × ₹12.44
₹62.20
excl. GST
₹73.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJK3415
₹62.20 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 205pF
- Ciss-Input Capacitance
- 1.45nF
- Pd - Power Dissipation
- 300mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 4A
- Reverse Transfer Capacitance (Crss)
- 160pF
- RDS(on)
- 60mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 17.2nC
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 560mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
Applications
- Load switch
- in PWM applicatopns
Key features
- Excellent RDS(ON), low gate charge, low gate voltages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJ3415 R15#C77896JSCJ · SOT-23 | JSCJ | SOT-23 | 6,520 | ₹7.78 · 6,520 in stock | View |
 | CJ3415#C2910186JSCJ · SOT-23 | JSCJ | SOT-23 | 130 | ₹7.50 · 130 in stock | View |
 | CJK3407#C96623JSCJ · SOT-23-3L | JSCJ | SOT-23-3L | 1,610 | ₹9.10 · 1,610 in stock | View |
 | CJ3401#C13799JSCJ · SOT-23 | JSCJ | SOT-23 | 1,33,340 | ₹4.75 · 1,33,340 in stock | View |
 | CJK3401A#C504111JSCJ · SOT-23-3L | JSCJ | SOT-23-3L | 2,610 | ₹11.36 · 2,610 in stock | View |
