JSCJDatasheet (PDF)

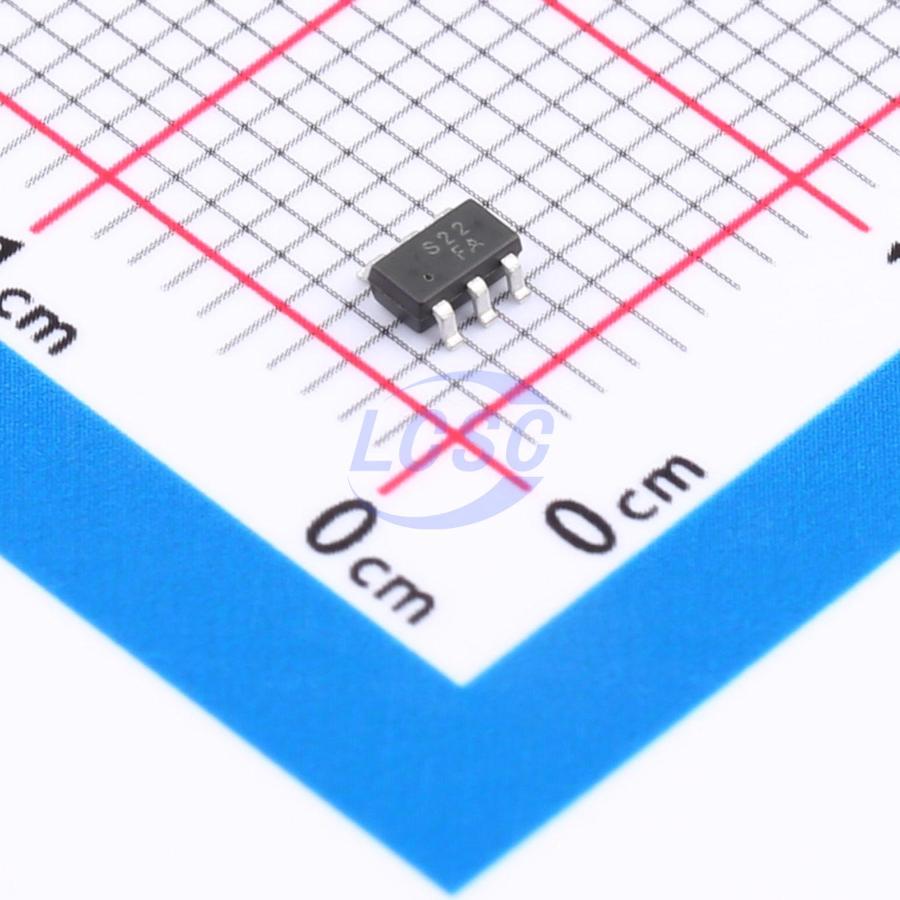

CJL2322
N-Channel Array 20V 4A 1.1W Surface Mount SOT-23-6L
SOT-23-6LROHS CompliantActive
MOSFET N-CH ARR 20V 4A SOT-23-6L
- Manufacturer
- JSCJ
- Manufacturer part #
- CJL2322
- Store part #
- C504193
- Package / case
- SOT-23-6L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,975 in stock
#C504193
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.93 | ₹79.65 |
| 50+ | ₹13.03 | ₹651.50 |
| 150+ | ₹11.58 | ₹1,737.00 |
| 500+ | ₹10.49 | ₹5,245.00 |
| 3,000+ | ₹9.62 | ₹28,860.00 |
| 6,000+ | ₹9.18 | ₹55,080.00 |
5 × ₹15.93
₹79.65
excl. GST
₹93.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJL2322
₹79.65 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 82pF
- Ciss-Input Capacitance
- 498pF
- Pd - Power Dissipation
- 1.1W
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 4A
- Reverse Transfer Capacitance (Crss)
- 71pF
- RDS(on)
- 30mΩ@4.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 6.2nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 400mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.057 g
Overview
Applications
- DC/DC converter
- Load switch for portable devices
- Commercial-industrial applications
Key features
- TrenchFET Power MOSFET
- Low Gate Charge
- Low On-resistance
- Surface Mount Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJL2019#C504152JSCJ · SOT-23-6L | JSCJ | SOT-23-6L | 5 | ₹10.43 · 5 in stock | View |
 | CJL2016#C504151JSCJ · SOT-23-6L | JSCJ | SOT-23-6L | 745 | ₹11.03 · 745 in stock | View |
 | CJL8810A#C47089406JSCJ · SOT-23-6L | JSCJ | SOT-23-6L | On request | ₹10.04 · 0 in stock | View |
 | CJL8810#C504153JSCJ · SOT-23-6L | JSCJ | SOT-23-6L | On request | ₹13.35 · 0 in stock | View |
 | CJL8820#C504154JSCJ · SOT-23-6L | JSCJ | SOT-23-6L | On request | ₹15.92 · 0 in stock | View |
