JSCJDatasheet (PDF)

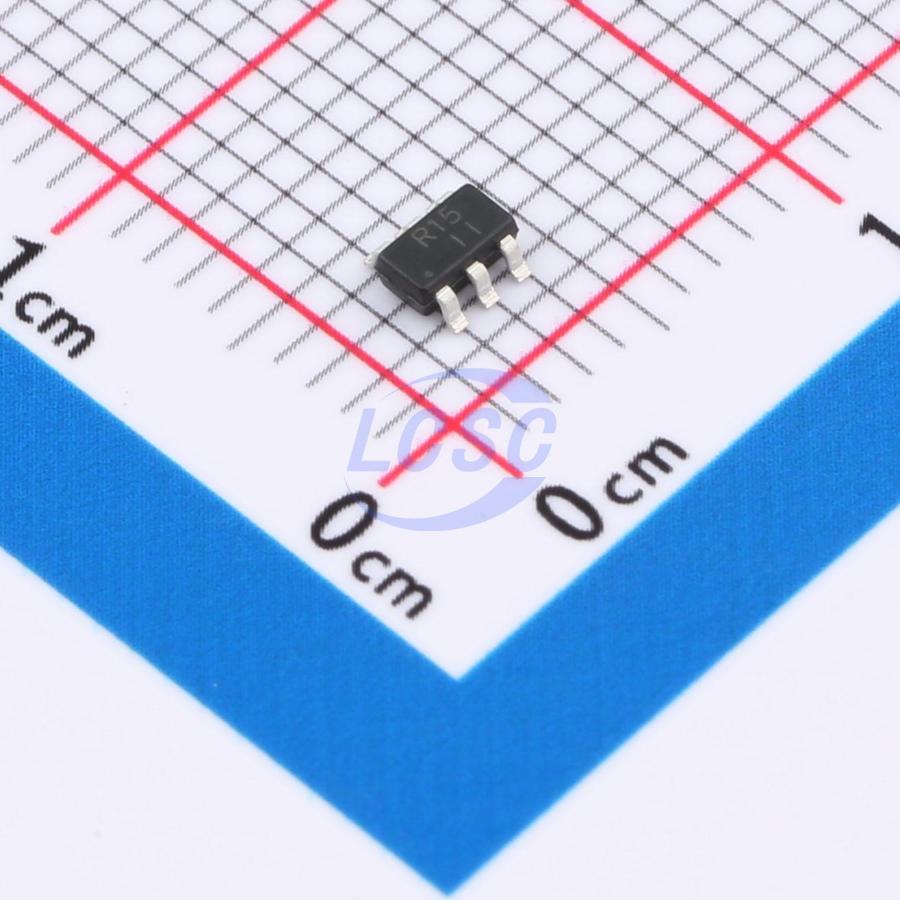

CJL3415
P-Channel 20V 4A 0.35W Surface Mount SOT-23-6L
SOT-23-6LROHS CompliantActive
MOSFET P-CH 20V 4A SOT-23-6L
- Manufacturer
- JSCJ
- Manufacturer part #
- CJL3415
- Store part #
- C114069
- Package / case
- SOT-23-6L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,825 in stock
#C114069
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.73 | ₹68.65 |
| 50+ | ₹11.11 | ₹555.50 |
| 150+ | ₹9.82 | ₹1,473.00 |
| 500+ | ₹8.84 | ₹4,420.00 |
| 3,000+ | ₹8.06 | ₹24,180.00 |
| 6,000+ | ₹7.66 | ₹45,960.00 |
5 × ₹13.73
₹68.65
excl. GST
₹81.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJL3415
₹68.65 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 205pF
- Ciss-Input Capacitance
- 1.45nF
- Pd - Power Dissipation
- 350mW
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 4A
- Reverse Transfer Capacitance (Crss)
- 160pF
- RDS(on)
- 73mΩ@1.8V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 17.2nC@4.5V
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
NCE0110K utilizes advanced trench technology and design to deliver excellent drain-source on-resistance (RDS(ON)) with low gate charge. It is suitable for a wide range of applications.
Applications
- Load switch
- in PWM applicatopns
Key features
- Excellent Rps(on), low gate charge, low gate voltage
- High power and current handing capability
