JSCJDatasheet (PDF)

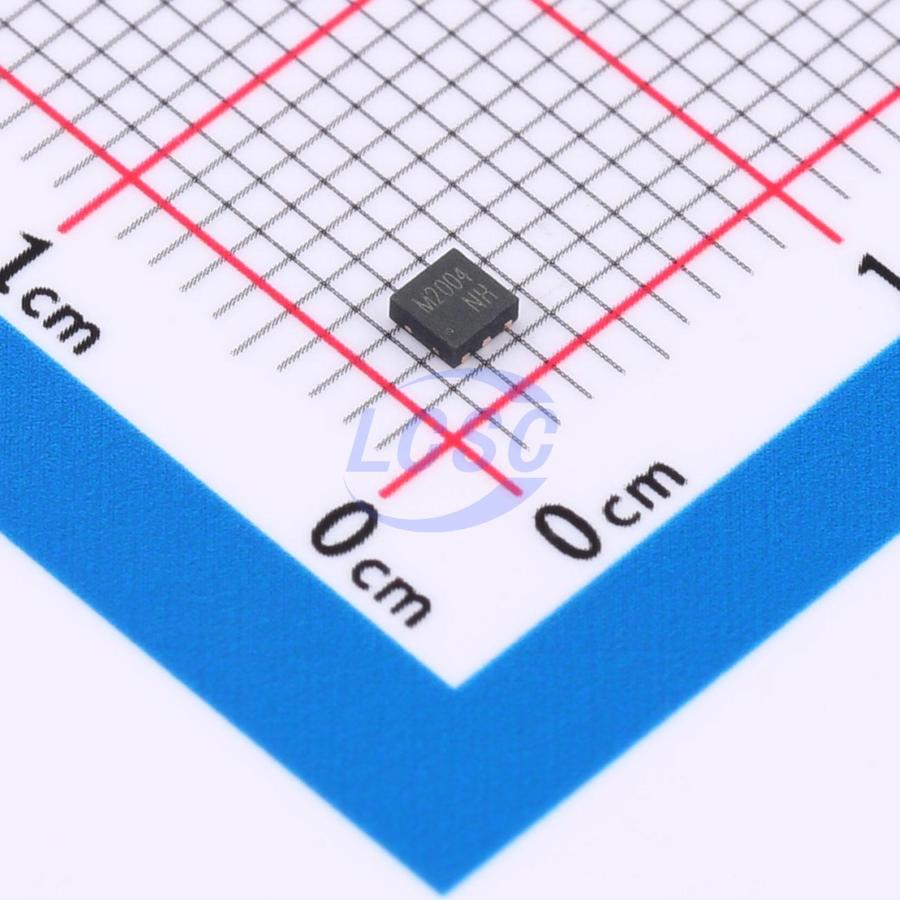

CJM2004
N-Channel 20V 15A Surface Mount DFNWB-6L-J(2x2)
DFNWB-6L-J(2x2)ROHS CompliantActive
MOSFET N-CH 20V 15A DFNWB-6L-J(2x2)
- Manufacturer
- JSCJ
- Manufacturer part #
- CJM2004
- Store part #
- C504120
- Package / case
- DFNWB-6L-J(2x2)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
Out of stock
#C504120
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.82 | ₹99.10 |
| 50+ | ₹15.66 | ₹783.00 |
| 150+ | ₹13.60 | ₹2,040.00 |
| 500+ | ₹12.04 | ₹6,020.00 |
| 3,000+ | ₹10.80 | ₹32,400.00 |
| 6,000+ | ₹10.17 | ₹61,020.00 |
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
Specifications
- Output Capacitance(Coss)
- 250pF
- Ciss-Input Capacitance
- 1.85nF
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 15A
- Reverse Transfer Capacitance (Crss)
- 210pF
- RDS(on)
- 6mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 17nC@4.5V
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 500mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
The CJAC150N03 utilizes advanced trench technology and design to achieve low gate charge while delivering excellent on-state drain-source resistance (RDS(ON)). It is suitable for a wide range of applications.
Applications
- Battery Protection
- Load Switch
- Power Management
Key features
- TrenchFET Power MOSFET
- Excellent RDS(on)
- Low Gate Charge
- High Power and Current Handing Capability Surface Mount Package
