JSCJDatasheet (PDF)

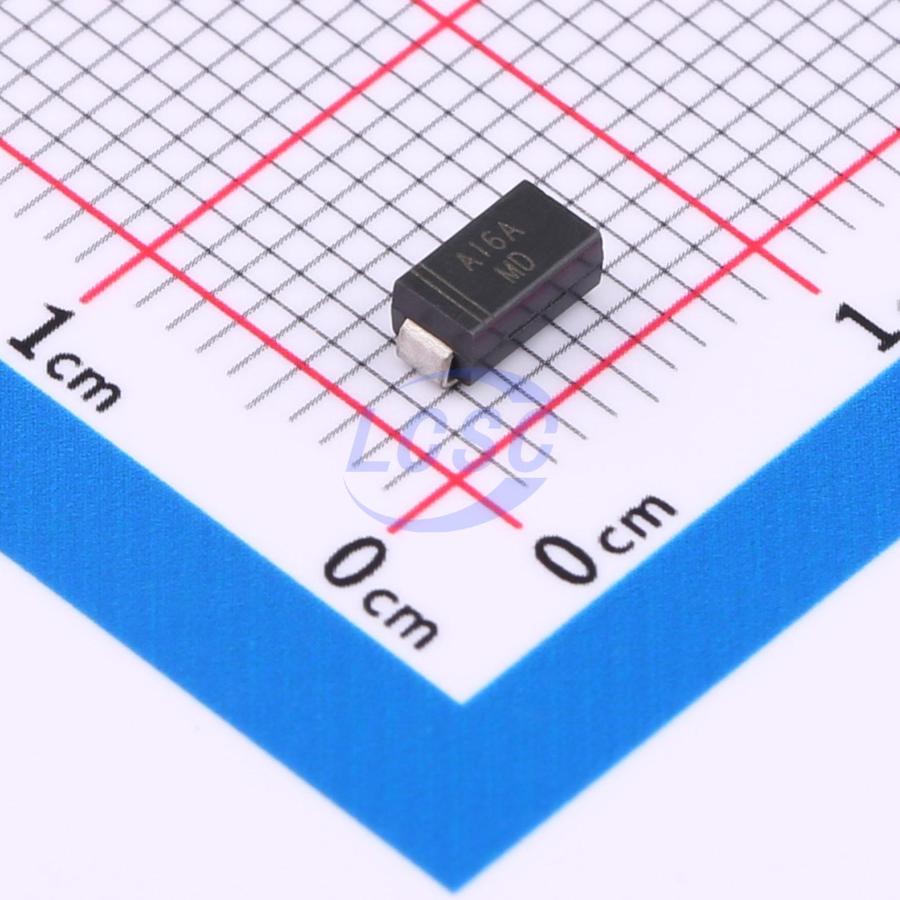

CJSMAJ16A
25.7VC Clamp 15.4A Ipp TVS DIODE SMAG
SMAGROHS CompliantActive
TVS DIODE 16VWM 25.7VC SMAG
- Manufacturer
- JSCJ
- Manufacturer part #
- CJSMAJ16A
- Store part #
- C7499066
- Package / case
- SMAG
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,710 in stock
#C7499066
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.36 | ₹63.60 |
| 100+ | ₹4.96 | ₹496.00 |
| 300+ | ₹4.27 | ₹1,281.00 |
| 1,000+ | ₹3.74 | ₹3,740.00 |
| 5,000+ | ₹3.32 | ₹16,600.00 |
| 10,000+ | ₹3.11 | ₹31,100.00 |
10 × ₹6.36
₹63.60
excl. GST
₹75.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
CJSMAJ16A
₹63.60 for 10 + GST
Specifications
- Clamping Voltage
- 25.7V
- Peak Pulse Current (Ipp)
- 15.4A
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 19.69V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 16V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.113 g
Overview
Key features
- PPP 400W
- VRWM 10V - 100V
- Glass passivated chip
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAJ16A#C2961198JSCJ · SMAG | JSCJ | SMAG | 2,380 | ₹8.10 · 2,380 in stock | View |
 | SMAJ17A#C5294348JSCJ · SMAG | JSCJ | SMAG | 4,970 | ₹4.33 · 4,970 in stock | View |
 | CJSMAJ15A#C7499065JSCJ · SMAG | JSCJ | SMAG | 20 | ₹8.12 · 20 in stock | View |
 | CJSMAJ17A#C7499067JSCJ · SMAG | JSCJ | SMAG | 60 | ₹6.93 · 60 in stock | View |
 | SMAJ15A#C2961219JSCJ · SMAG | JSCJ | SMAG | 1,000 | ₹6.99 · 1,000 in stock | View |
