JSCJDatasheet (PDF)

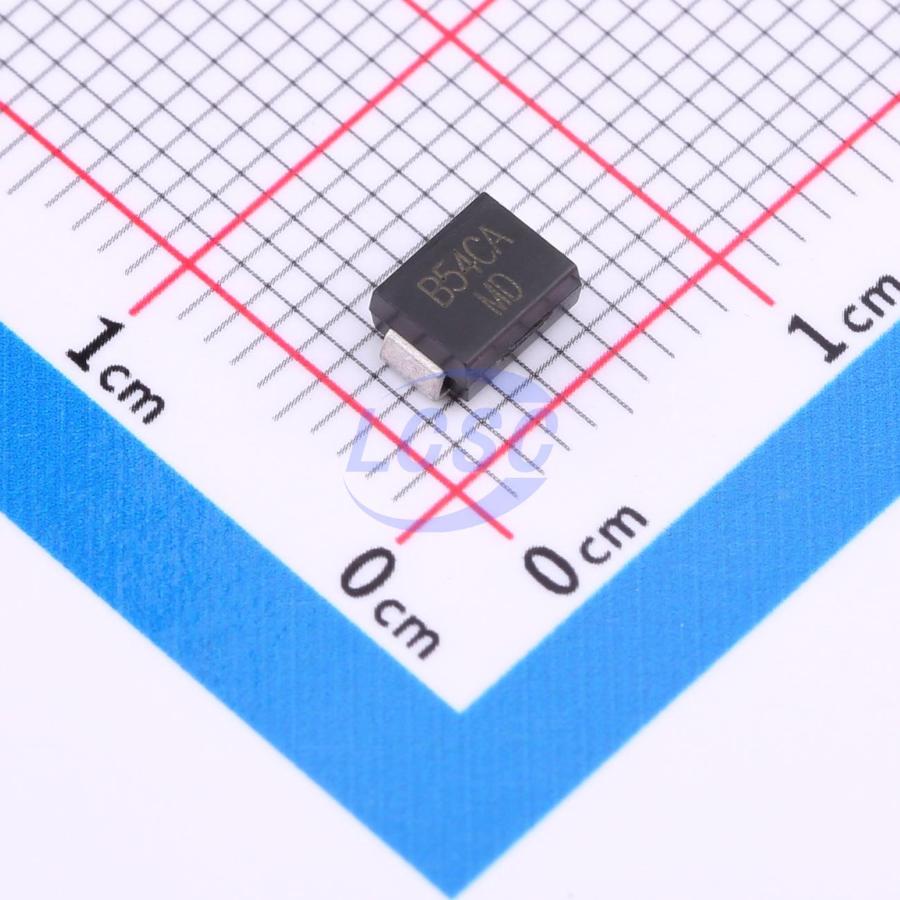

CJSMBJ54CA
86.2VC Clamp 6.9A@10/1000us Ipp TVS DIODE SMBG
SMBGROHS CompliantActive
TVS DIODE 54VWM 86.2VC SMBG
- Manufacturer
- JSCJ
- Manufacturer part #
- CJSMBJ54CA
- Store part #
- C7499178
- Package / case
- SMBG
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,740 in stock
#C7499178
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.87 | ₹78.70 |
| 100+ | ₹6.23 | ₹623.00 |
| 300+ | ₹5.40 | ₹1,620.00 |
| 3,000+ | ₹4.79 | ₹14,370.00 |
| 6,000+ | ₹4.29 | ₹25,740.00 |
| 9,000+ | ₹4.05 | ₹36,450.00 |
10 × ₹7.87
₹78.70
excl. GST
₹92.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJSMBJ54CA
₹78.70 for 10 + GST
Specifications
- Clamping Voltage
- 86.2V
- Peak Pulse Current (Ipp)
- 6.9A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 66.25V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 54V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.194 g
Overview
Applications
- Clamping Voltage
Key features
- PPP 600W VRWM 10V - 100V
- Glass passivated chip
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ54CA#C5174558JSCJ · SMBG | JSCJ | SMBG | 5,170 | ₹10.09 · 5,170 in stock | View |
 | CJSMBJ51CA#C7499177JSCJ · SMBG | JSCJ | SMBG | 700 | ₹7.04 · 700 in stock | View |
 | CJSMBJ58CA#C7499179JSCJ · SMBG | JSCJ | SMBG | 10 | ₹7.65 · 10 in stock | View |
 | SMBJ58CA#C1509123JSCJ · SMBG | JSCJ | SMBG | On request | ₹12.34 · 0 in stock | View |
