JSCJDatasheet (PDF)

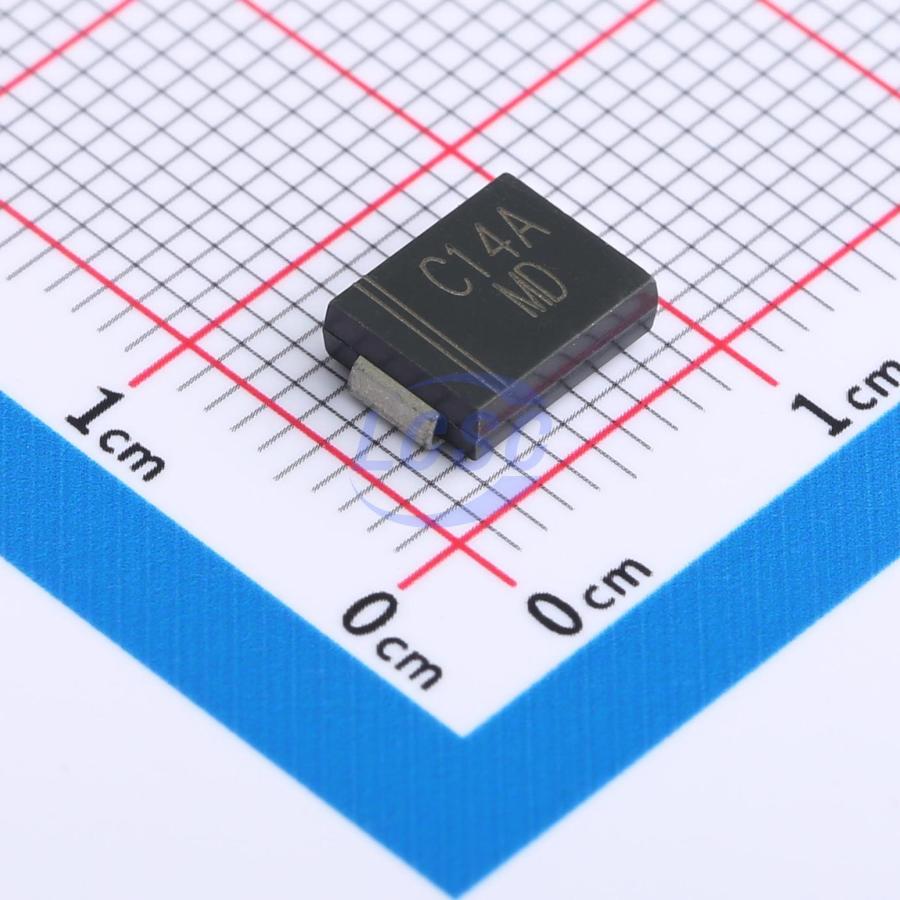

CJSMCJ14A
23VC Clamp 64.7A@10/1000us Ipp TVS DIODE SMCG
SMCGROHS CompliantActive
TVS DIODE 14VWM 23VC SMCG
- Manufacturer
- JSCJ
- Manufacturer part #
- CJSMCJ14A
- Store part #
- C7499192
- Package / case
- SMCG
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,745 in stock
#C7499192
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.80 | ₹119.00 |
| 50+ | ₹18.99 | ₹949.50 |
| 150+ | ₹16.92 | ₹2,538.00 |
| 500+ | ₹14.34 | ₹7,170.00 |
| 3,000+ | ₹13.19 | ₹39,570.00 |
| 6,000+ | ₹12.50 | ₹75,000.00 |
5 × ₹23.80
₹119.00
excl. GST
₹140.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJSMCJ14A
₹119.00 for 5 + GST
Specifications
- Clamping Voltage
- 23V
- Peak Pulse Current (Ipp)
- 64.7A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 17.19V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 14V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.364 g
Overview
Applications
- Clamping Voltage
Key features
- PPP 1500W VRWM 10V - 100V
- Glass passivated chip
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJSMCJ15A#C7499193JSCJ · SMCG | JSCJ | SMCG | 1,685 | ₹22.61 · 1,685 in stock | View |
 | SMCJ13A#C3036219JSCJ · SMCG | JSCJ | SMCG | 840 | ₹21.84 · 840 in stock | View |
 | CJSMCJ13A#C7499191JSCJ · SMCG | JSCJ | SMCG | 1,415 | ₹22.61 · 1,415 in stock | View |
 | 1.5SMC18A#C5295167JSCJ · SMCG | JSCJ | SMCG | 600 | ₹21.62 · 600 in stock | View |
