JSCJDatasheet (PDF)

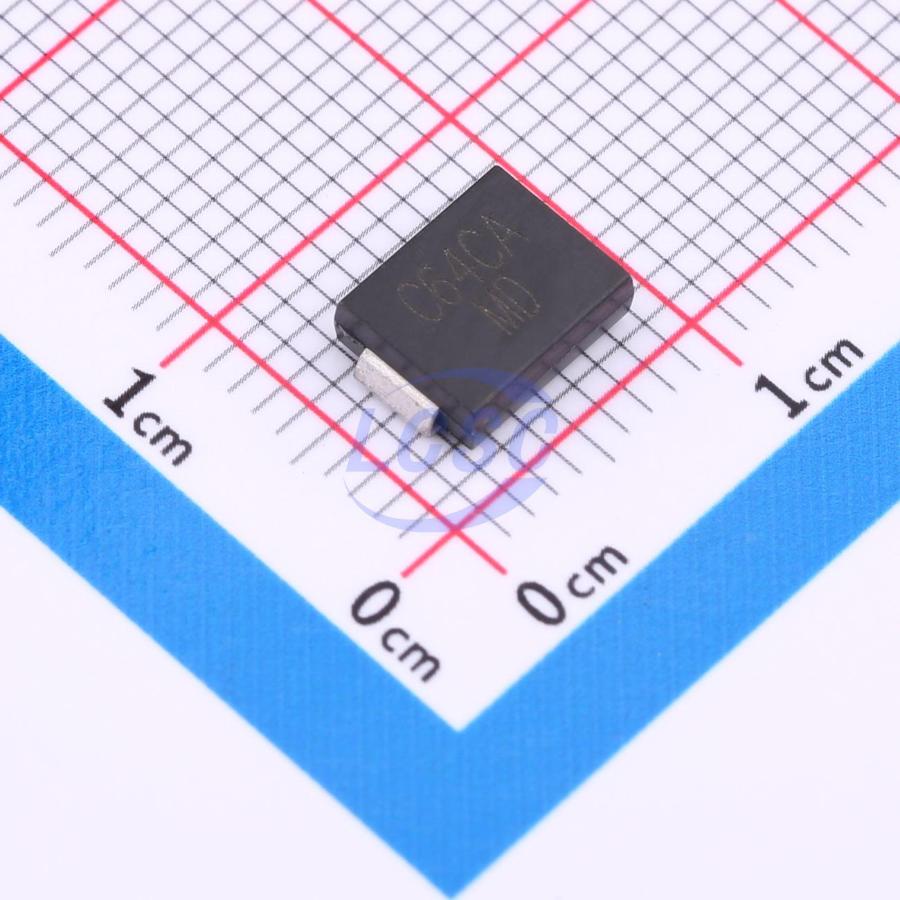

CJSMCJ64CA
102VC Clamp 14.6A@10/1000us Ipp TVS DIODE SMCG
SMCGROHS CompliantActive
TVS DIODE 64VWM 102VC SMCG
- Manufacturer
- JSCJ
- Manufacturer part #
- CJSMCJ64CA
- Store part #
- C7499245
- Package / case
- SMCG
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,315 in stock
#C7499245
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.33 | ₹106.65 |
| 50+ | ₹16.75 | ₹837.50 |
| 150+ | ₹14.78 | ₹2,217.00 |
| 500+ | ₹12.33 | ₹6,165.00 |
| 3,000+ | ₹11.25 | ₹33,750.00 |
| 6,000+ | ₹10.58 | ₹63,480.00 |
5 × ₹21.33
₹106.65
excl. GST
₹125.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJSMCJ64CA
₹106.65 for 5 + GST
Specifications
- Clamping Voltage
- 102V
- Peak Pulse Current (Ipp)
- 14.6A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 78.54V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 64V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.364 g
Overview
Applications
- Clamping Voltage
Key features
- PPP 1500W VRWM 10V - 100V
- Glass passivated chip
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJSMCJ60CA#C7499244JSCJ · SMCG | JSCJ | SMCG | 2,685 | ₹25.02 · 2,685 in stock | View |
 | CJSMCJ58CA#C7499243JSCJ · SMCG | JSCJ | SMCG | 445 | ₹22.64 · 445 in stock | View |
 | CJSMCJ70CA#C7499246JSCJ · SMCG | JSCJ | SMCG | 2,690 | ₹23.97 · 2,690 in stock | View |
 | SMCJ58CA#C2961217JSCJ · SMCG | JSCJ | SMCG | 2,545 | ₹23.64 · 2,545 in stock | View |
