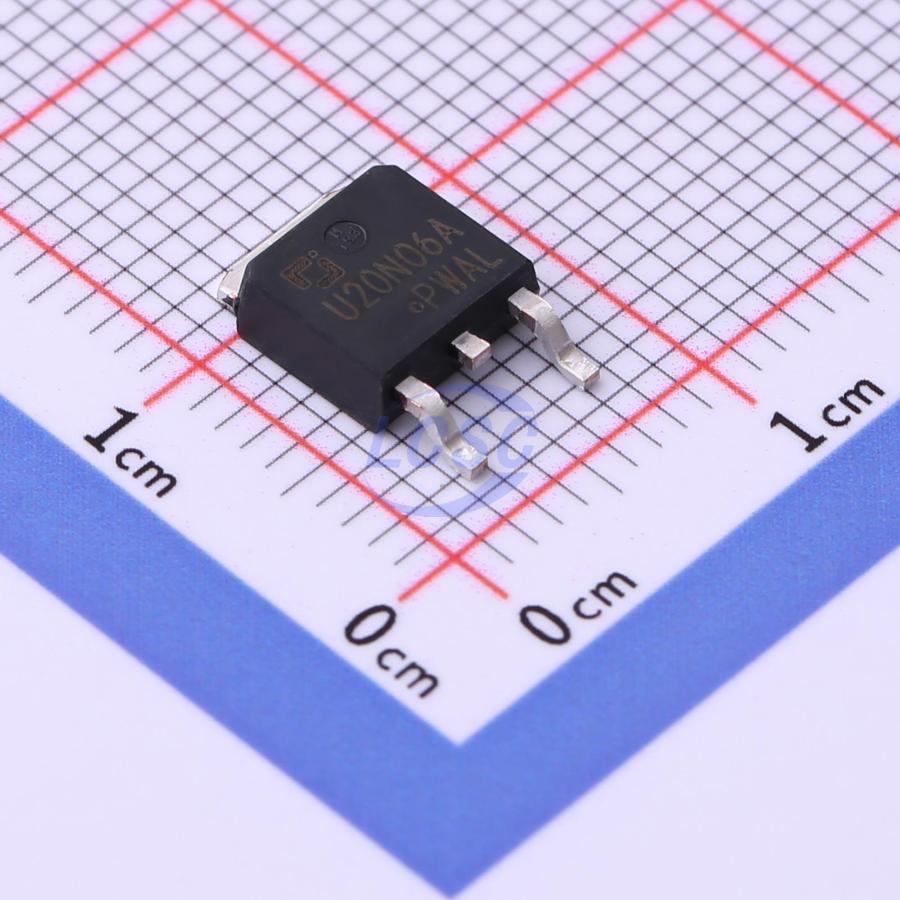

CJU20N06A
N-Channel 60V 20A 40W Surface Mount TO-252-2L
TO-252-2LROHS CompliantActive
MOSFET N-CH 60V 20A TO-252-2L
- Manufacturer
- JSCJ
- Manufacturer part #
- CJU20N06A
- Store part #
- C2847903
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,675 in stock
#C2847903
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.86 | ₹139.30 |
| 50+ | ₹22.27 | ₹1,113.50 |
| 150+ | ₹19.87 | ₹2,980.50 |
| 500+ | ₹16.88 | ₹8,440.00 |
| 2,500+ | ₹14.99 | ₹37,475.00 |
| 5,000+ | ₹14.20 | ₹71,000.00 |
5 × ₹27.86
₹139.30
excl. GST
₹164.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CJU20N06A
₹139.30 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 120pF
- Ciss-Input Capacitance
- 1.7nF
- Pd - Power Dissipation
- 40W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 20A
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 50mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 36nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.46 g
Overview
The CJU20N06A uses advanced trench technology and design to provide excellent Rps(on) with low gate charge. It can be used in a wide variety of applications
Applications
- Power switching applications
Key features
- Power switching application
- Excellent package for good heat dissipation
- Ultra low gate charge
- Low reverse transfer capacitance
- Fast switching capability Avalanche energy specified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJU65SN10L#C5116362JSCJ · TO-252-2L | JSCJ | TO-252-2L | On request | ₹60.06 · 0 in stock | View |
 | CJU50N06A#C3031931JSCJ · TO-252-2L | JSCJ | TO-252-2L | 4,100 | ₹45.35 · 4,100 in stock | View |
 | CJU80SN10#C3031923JSCJ · TO-252-2L | JSCJ | TO-252-2L | 3,878 | ₹58.98 · 3,878 in stock | View |
 | CJU70N06#C7461919JSCJ · TO-252-2L | JSCJ | TO-252-2L | 7,155 | ₹55.43 · 7,155 in stock | View |
 | CJU60SN08#C2910352JSCJ · TO-252-2L | JSCJ | TO-252-2L | 223 | ₹91.15 · 223 in stock | View |
