JSCJDatasheet (PDF)

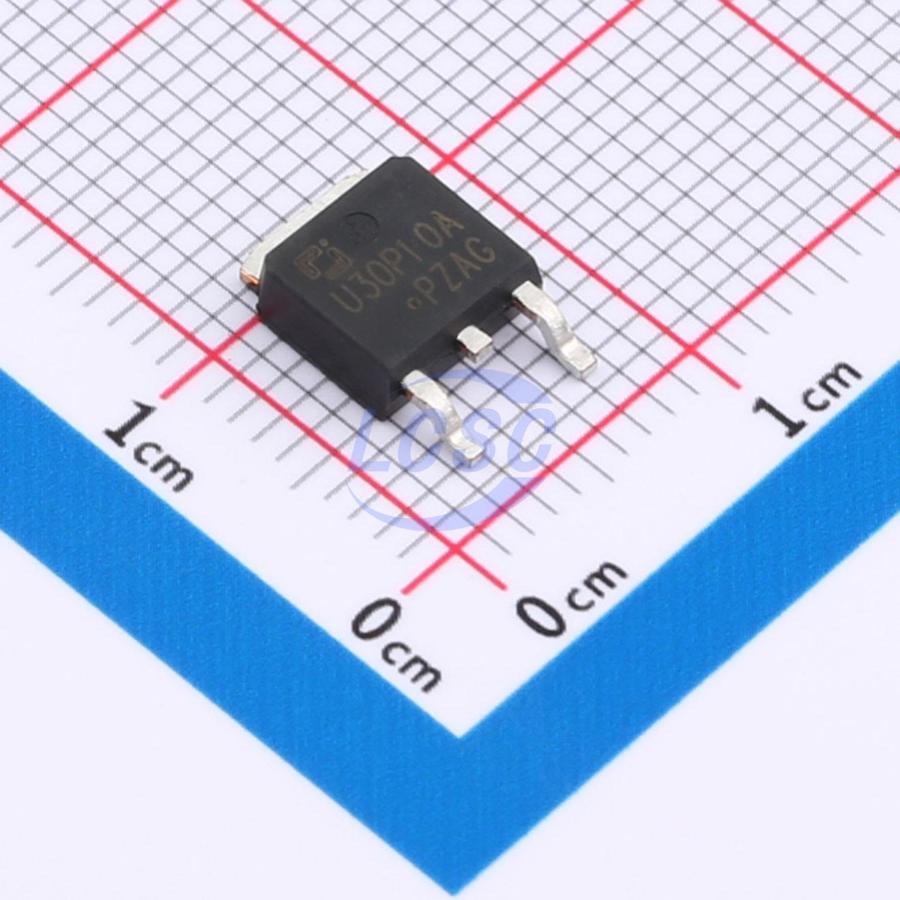

CJU30P10A
P-Channel 100V 30A 89W Surface Mount TO-252-2L
TO-252-2LROHS CompliantActive
MOSFET P-CH 100V 30A TO-252-2L
- Manufacturer
- JSCJ
- Manufacturer part #
- CJU30P10A
- Store part #
- C7435394
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
541 in stock
#C7435394
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.35 | ₹66.35 |
| 10+ | ₹54.64 | ₹546.40 |
| 30+ | ₹49.65 | ₹1,489.50 |
| 100+ | ₹43.37 | ₹4,337.00 |
| 500+ | ₹40.55 | ₹20,275.00 |
| 1,000+ | ₹38.82 | ₹38,820.00 |
1 × ₹66.35
₹66.35
excl. GST
₹78.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CJU30P10A
₹66.35 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 3.765nF
- Pd - Power Dissipation
- 89W
- Reverse Transfer Capacitance (Crss)
- 136pF
- RDS(on)
- 52mΩ@4.5V
- Number
- 1 P-Channel
- Gate Threshold Voltage (Vgs(th))
- 1.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.44 g
Overview
The CJU30P10A uses advanced trench technology and design to provide excellent RDS(on) with low gate charge. It can be used in a wide variety of applications.
Applications
- Power management in notebook computer
- Portable equipment and battery powered systems
Key features
- Advanced trench process technology
- Reliable and rugged
- High density cell design for ultra low On-Resistance
