MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
JSCJDatasheet (PDF)

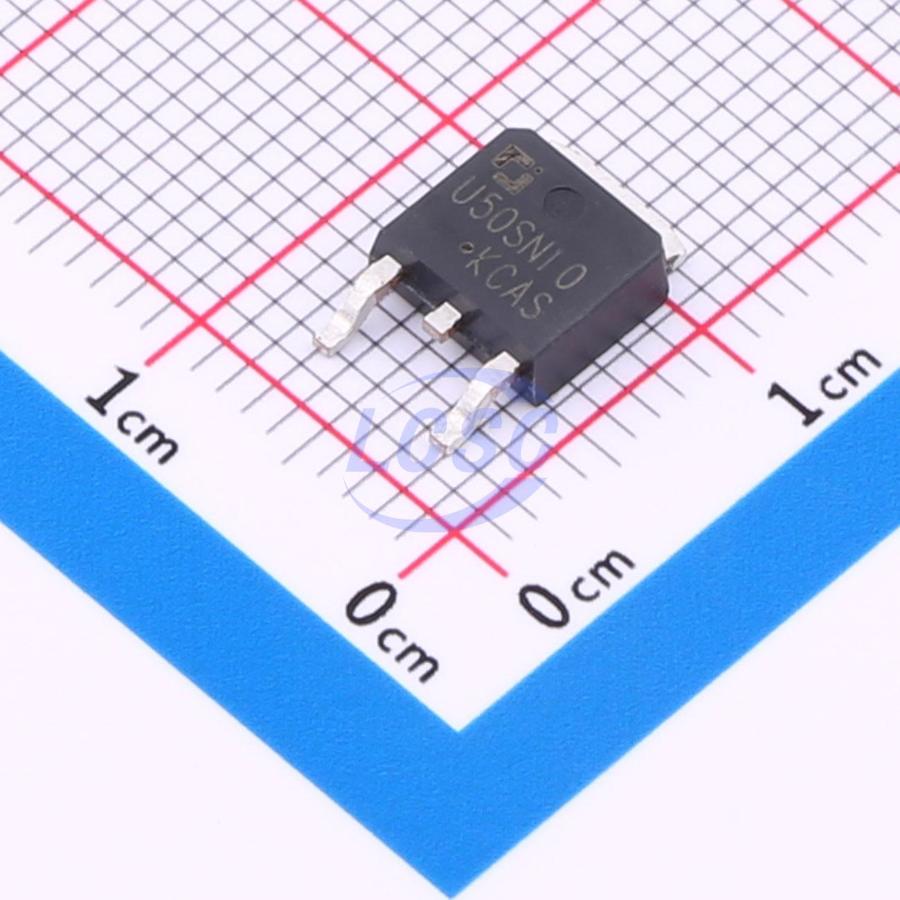

CJU50SN10
N-Channel 100V 50A 50W Surface Mount TO-252-2L
TO-252-2LROHS CompliantActive
MOSFET N-CH 100V 50A TO-252-2L
- Manufacturer
- JSCJ
- Manufacturer part #
- CJU50SN10
- Store part #
- C5173759
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
950 in stock
#C5173759
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.88 | ₹59.88 |
| 10+ | ₹46.65 | ₹466.50 |
| 30+ | ₹41.01 | ₹1,230.30 |
| 100+ | ₹34.07 | ₹3,407.00 |
| 500+ | ₹31.02 | ₹15,510.00 |
| 1,000+ | ₹29.08 | ₹29,080.00 |
1 × ₹59.88
₹59.88
excl. GST
₹70.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CJU50SN10
₹59.88 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 975.3pF
- Pd - Power Dissipation
- 50W
- Reverse Transfer Capacitance (Crss)
- 9.4pF
- RDS(on)
- 16.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 15.7nC@10V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.491 g
Overview
The CJU50SN10 uses shielded gate trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide variety of applications
Applications
- Switching power supplies and general applications
- Hard switching and high-frequency circuits
- Uninterruptible power supplies
- Power management
Key features
- High Power and current handing capability
- Good stability and uniformity with high EAS
- Excellent package for good heat dissipation
- High density cell design for ultra low RDS(ON)
- Lead free product is acquired
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJU80SN10#C3031923JSCJ · TO-252-2L | JSCJ | TO-252-2L | 3,878 | ₹58.98 · 3,878 in stock | View |
 | CJU65SN10L#C5116362JSCJ · TO-252-2L | JSCJ | TO-252-2L | On request | ₹60.06 · 0 in stock | View |
