JSCJDatasheet (PDF)

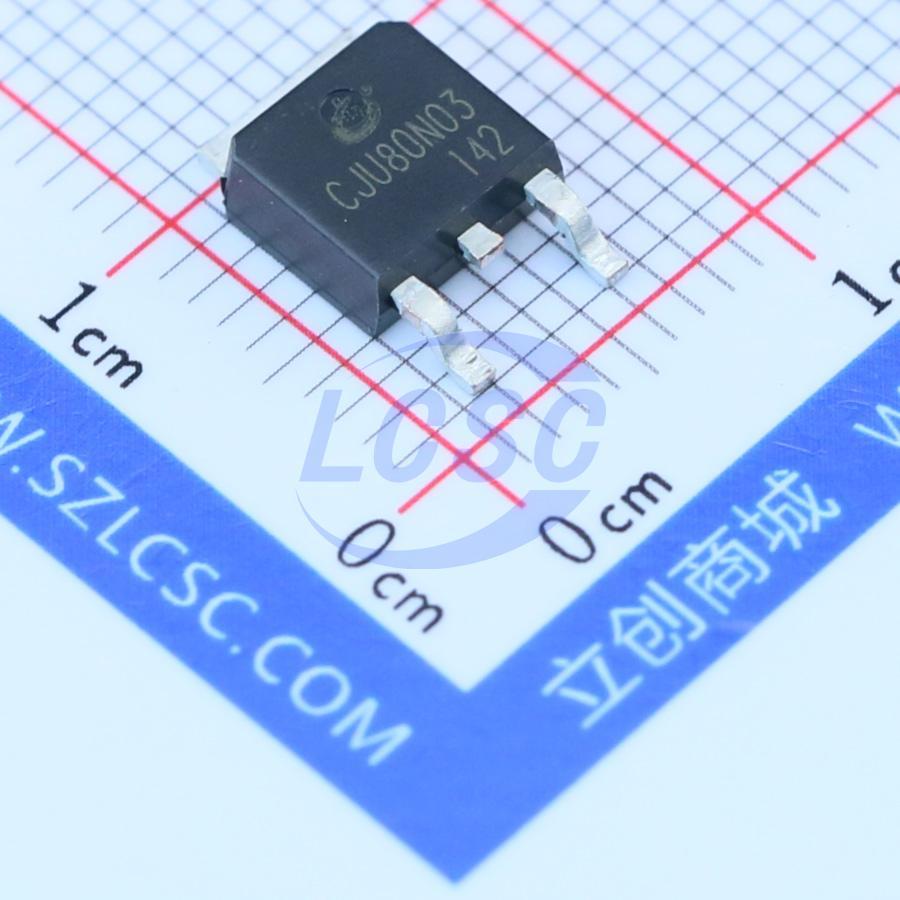

CJU80N03
N-Channel 30V 80A 1.25W Surface Mount TO-252-2L
TO-252-2LROHS CompliantActive
MOSFET N-CH 30V 80A TO-252-2L
- Manufacturer
- JSCJ
- Manufacturer part #
- CJU80N03
- Store part #
- C91688
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,295 in stock
#C91688
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.08 | ₹145.40 |
| 50+ | ₹22.57 | ₹1,128.50 |
| 150+ | ₹19.77 | ₹2,965.50 |
| 500+ | ₹16.29 | ₹8,145.00 |
| 2,500+ | ₹14.74 | ₹36,850.00 |
| 5,000+ | ₹13.80 | ₹69,000.00 |
5 × ₹29.08
₹145.40
excl. GST
₹171.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CJU80N03
₹145.40 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 460pF
- Ciss-Input Capacitance
- 2.33nF
- Pd - Power Dissipation
- 1.25W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 80A
- Reverse Transfer Capacitance (Crss)
- 230pF
- RDS(on)
- 6.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 51nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.516 g
Overview
The CJU80N03 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide variety of applications.
Applications
- Power switching application
- Uninterruptible Power Supply
- Hard switched and high frequency circuits
Key features
- High density cell design for ultra low RDS(ON)
- Excellent package for good heat dissipation
- Fully characterized Avalanche voltage and current
- Special process technology for high ESD capability
- Good stability and uniformity with high EAS
