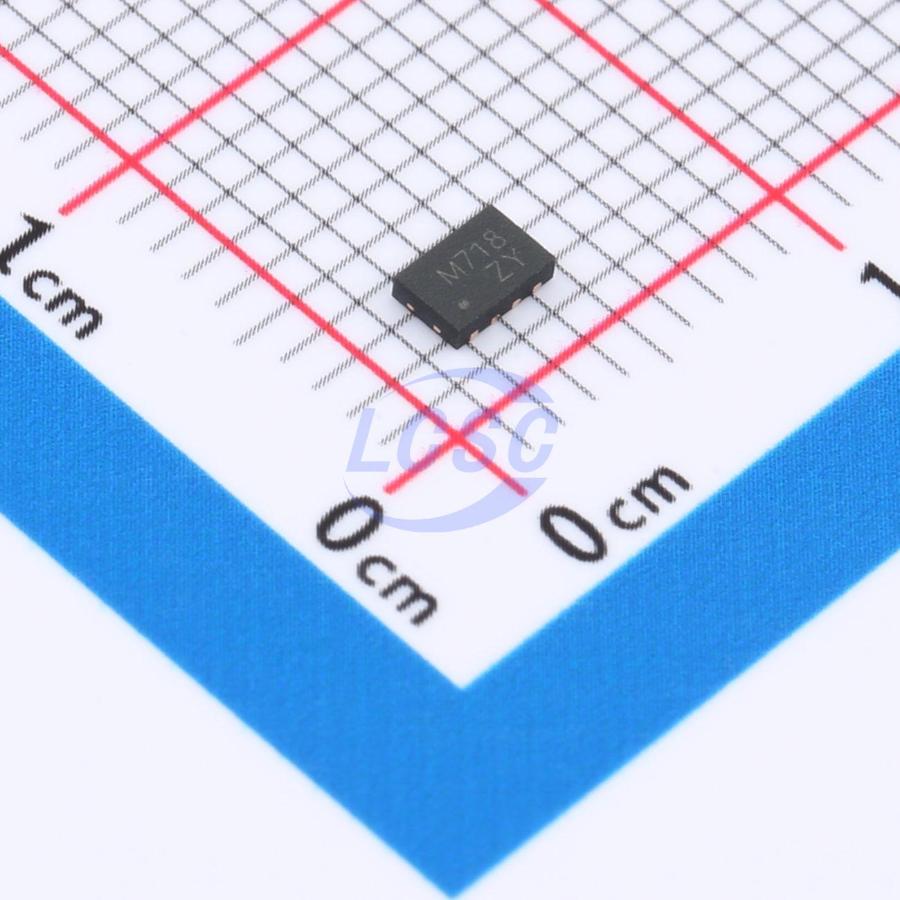

JSCJDatasheet (PDF)
CJZM718
N-Channel 20V 0.5A 1W Surface Mount DFNWB-8L-EP(2x3)
DFNWB-8L-EP(2x3)ROHS CompliantActive
MOSFET N-CH 20V 0.5A DFNWB-8L-EP(2x3)
- Manufacturer
- JSCJ
- Manufacturer part #
- CJZM718
- Store part #
- C2910049
- Package / case
- DFNWB-8L-EP(2x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,915 in stock
#C2910049
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.91 | ₹59.55 |
| 50+ | ₹9.62 | ₹481.00 |
| 150+ | ₹8.47 | ₹1,270.50 |
| 500+ | ₹7.61 | ₹3,805.00 |
| 3,000+ | ₹6.92 | ₹20,760.00 |
| 6,000+ | ₹6.58 | ₹39,480.00 |
5 × ₹11.91
₹59.55
excl. GST
₹70.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJZM718
₹59.55 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 16pF
- Ciss-Input Capacitance
- 100pF
- Pd - Power Dissipation
- 1W
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 500mA
- Reverse Transfer Capacitance (Crss)
- 12pF
- RDS(on)
- 700mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 750nC
- Vgs
- ±6V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.056 g
Overview
These devices are N-channel power MOSFETs developed using second-generation MDmesh technology. This revolutionary power MOSFET combines a vertical structure with the company's strip layout to achieve extremely low on-resistance and gate charge. As a result, it is well-suited for the most demanding high-efficiency converters.
Applications
- Charging circuit
- Other power management in portable equipments
Key features
- High DC current gain
- Low Threshold
- Small package DFNWB3x2-8L-I
- Including a CJP718 transistor and a CJ1012 MOSFET independently in a package
