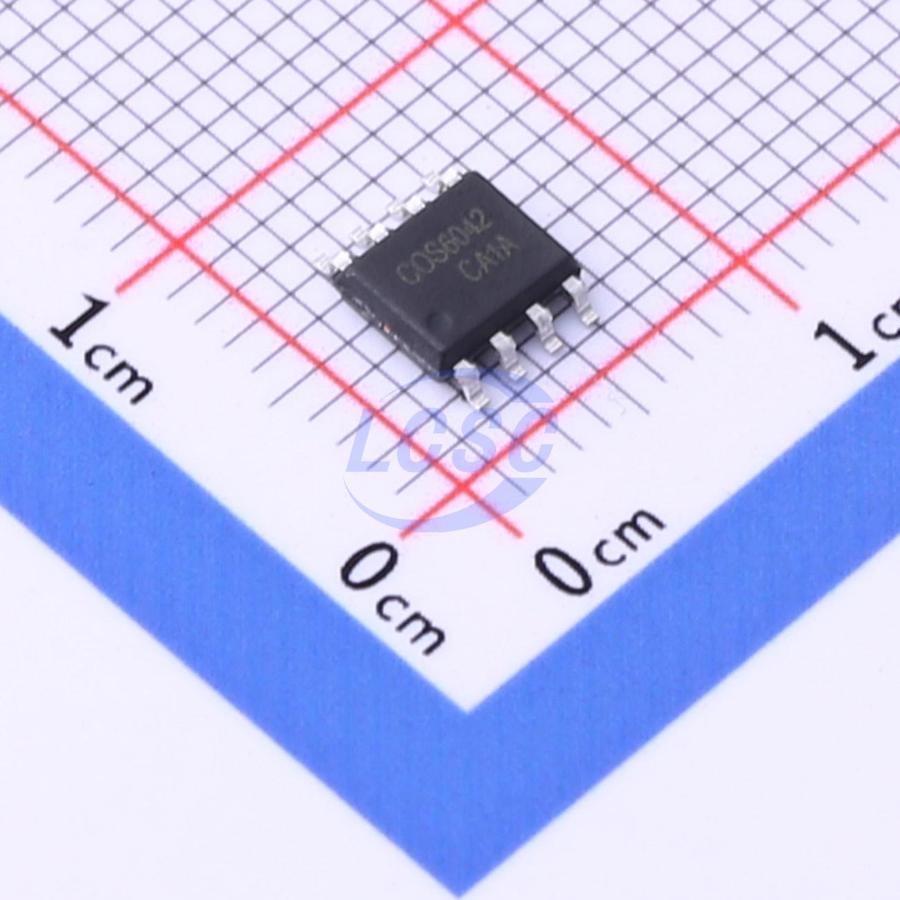

COS6042SR COSINE

COS6042SR

20mA 2 5mV 4.3V/ms 10pA 85dB 500nA 24kHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-8ROHS CompliantActive

500nA, Rail-to-Rail Input/Output Operational Amplifiers

Manufacturer: COSINE
Manufacturer part #: COS6042SR
Store part #: C2922336
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,115 in stock

#C2922336

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹30.87	₹154.35
50+	₹23.73	₹1,186.50
150+	₹20.68	₹3,102.00
500+	₹16.87	₹8,435.00
2,500+	₹15.17	₹37,925.00
4,000+	₹14.16	₹56,640.00

Quantity (min 5, multiples of 5)

5 × ₹30.87

₹154.35

excl. GST

₹182.13 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

COS6042SR

₹154.35 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 20mA
Number of Channels: 2
Vos - Input Offset Voltage: 5mV
Slew Rate: 4.3V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 10pA
Common Mode Rejection Ratio(CMRR): 85dB
Input Offset Voltage Drift(Vos TC): 2.5uV/℃
Quiescent Current: 500nA
Gain Bandwidth Product: 24kHz
Features: Built-in compensation
Input Voltage Noise Density: 170nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.4V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.178 g
