CPDH3V3UP-TP

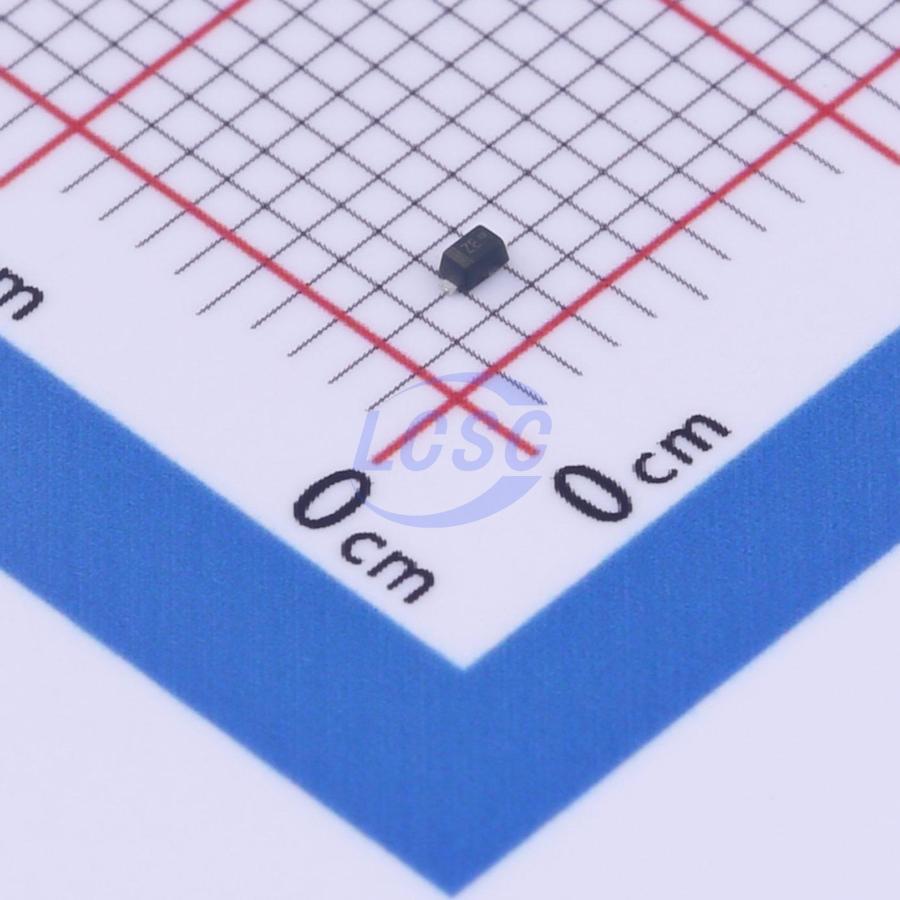

14VC Clamp ESD DIODE SOD-523
SOD-523RoHSActive
ESD DIODE 3.3VWM 14VC SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- CPDH3V3UP-TP
- Store part #
- C2841443
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,960 in stock
#C2841443
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.25 | ₹105.00 |
| 200+ | ₹4.15 | ₹830.00 |
| 600+ | ₹3.56 | ₹2,136.00 |
| 3,000+ | ₹2.87 | ₹8,610.00 |
| 9,000+ | ₹2.55 | ₹22,950.00 |
| 21,000+ | ₹2.38 | ₹49,980.00 |
20 × ₹5.25
₹105.00
excl. GST
₹123.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CPDH3V3UP-TP
₹105.00 for 20 + GST
Specifications
- Clamping Voltage
- 14V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 11A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 5V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.025 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
- Audio Players
- Keypads, Side Keys, LCD Displays, USB2.0
Key features
- 150 Watts peak pulse power (tp = 8/20μs)
- Transient protection for high speed data lines to IEC 61000 - 4 - 2 (ESD) ± 30kV (air), ± 30kV (contact)
- IEC 61000 - 4 - 4 (EFT) 40A(5/50ns)
- Protects One Power or I/O Port
- Low leakage current
- Low operating and clamping voltages
- Solid - state silicon avalanche technology
